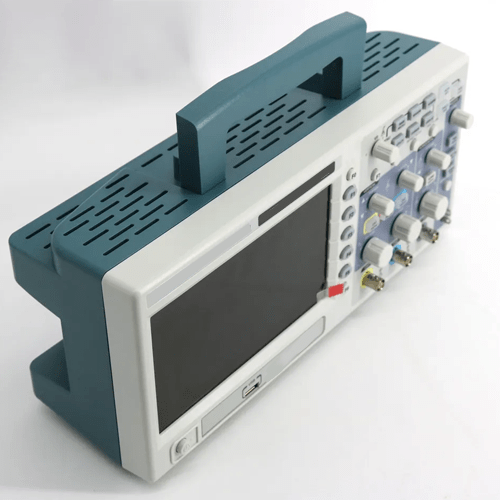

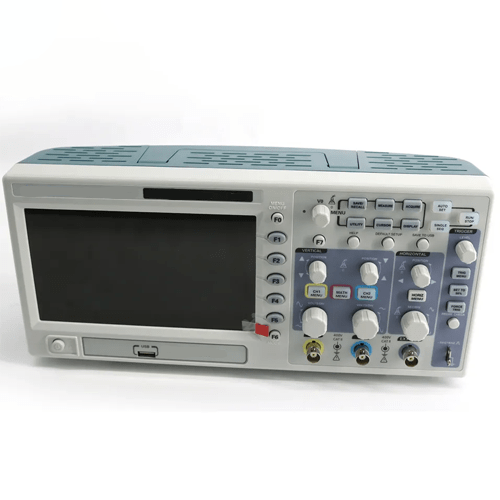

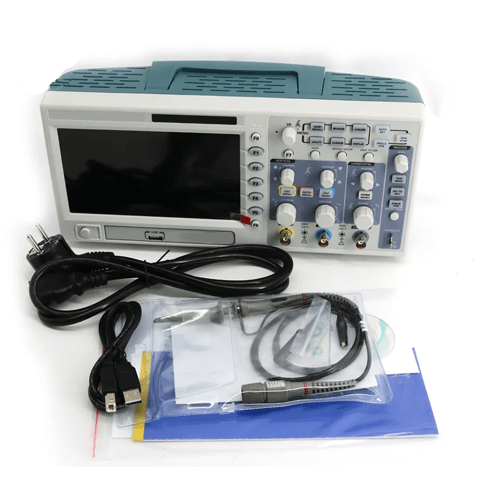

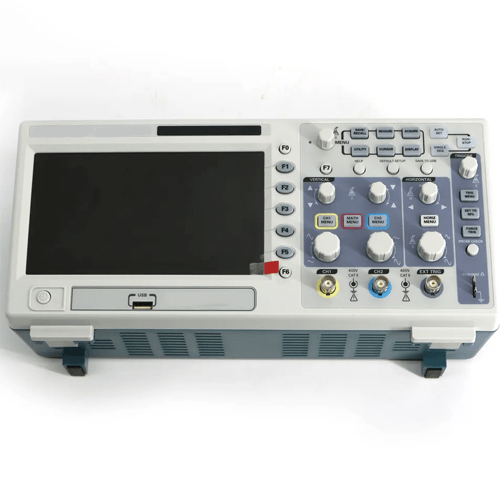

Features
- 1 GSa/s real-time sampling rate and 25GSa/s the equivalent sampling rate
- 70 MHz Simulate Broadband
- Powerful trigger
- Large screen and humanized operation interface
- Integrated USB host, support U disk storage, USB interface system upgrade
- 7 in (17.78 cm) 64K colour TFT true colour LCD screen, waveform display
- Clear realistic Ultra-thin design, light volume, easy to carry
Technical Specifications
| Simulate Broadband | 70 MHz |
| Real-time Sampling | 1 GSa/s |
| Equivalent Sampling | 25 GSa/s |
| Record Length | 40 K |
| Time Base Scope (s/Div) | 4 nS/div to 40 S/div |
| Channel Delay | 500 ps |
| Ad converter | 8-bit resolution, two channel acquisition at the same time |
| Vertical Sensitivity | 2 mV/div to 5 V/div (In the BNC input) |
| Vertical Displacement Range | ±50 V (5 V/div), ±40 V (2 V/div to 500 mV/div), ±2 V (200 mV/div to 50 mV/div) ±400 mV (20 mV/div to 2 mV/div) |
| Rise Time (BNC) | ≤5 ns |
| DC Gain Accuracy | 2 mV/div to 5 mV/div ±4% (sampling or average sampling) 10 mV/div to 5 V/div ±3% (sampling or average sampling) |
| Trigger System | EXT (typical) from dc to 40 MHZ to 200 mv |
| Trigger Sensitivity (Edge-triggered Type) | EXT (typical) from dc to 40 MHz to 1V |
| AC: Attenuation | 10 Hz below signal |
| High Frequency Suppression: | > 80 KHz will decay signal |
| Low Frequency Suppression: | < 150 KHz will decay signal |
| Noise Suppression: | reduce the triggering sensitivity |
| Trigger Level Range | External (EXT): + / – 1.2 V external failure (EXT / 5): ±6 V |
| Trigger Level Range Accuracy (typical) rising And Falling Time≥20ns | Internal (ch1 and ch2): ± (0.3 div × V/div) ±4 div from the centre of screen |
| External (EXT) | ± (6%set value+40 mV) |
| External Attenuation5 (ext/5) | ± (6%set value+200 mV) |
| Scope | 100 ns to 10 s |
| Edge-triggered | rising and falling |
| Trigger Pulse Width | Trigger mode: (greater than, less than, equal to, is not equal to) pulse width, (greater than, less than, equal to, is not equal to) the negative pulse width; Pulse width of the range:20 nS to 10 S |
| Video Trigger | Signal system: support standard NTSC, PAL and SECAM broadcasting; range:1 to 525 (NTSC) and 1 to 625 (PAL/SECAM) |
| Slope Trigger | Trigger mode: (greater than, less than, equal to, is not equal to) positive slope, (greater than, less than, equal to, is not equal to) the negative slope; Set time:20 nS to 10 S |
| Timeout Triggers | Starting along: rising, falling edge; Set time:20 ns to 10 s |
| Alternate Trigger | Internal trigger: edge, pulse width, video, slope |
| Triggering Frequency Counter | Readout resolution: 6 Precision (typical): ±30 PPM (including all reference frequency error and calculation error + 1) Frequency range: exchange coupling, from the least 10 hz to nominal bandwidth |
| Cursor Measurement |
Manual mode: Voltage difference between the cursor V; Time lag between the cursor T; The reciprocal of T, Hz UNIT (1/ T) Tracking mode: waveform voltage value and time value |
| Automatic Measurement (32) | Frequency, cycle, average, fengfeng value, RMS, maximum, minimum, rise time, fall time, wide frequency width of positive and negative frequency rising and falling edge along the phase difference and phase difference, the duty ratio of positive and negative duty ratio, the bottom of the value, the top value, median, amplitude, overshoot, piercing, the average cycle, cycle mean square value, drop down the overshoot, rise along the piercing, BWIDTH, FRF,FFR, LRR, LRF, LFR, LFF |
| Display Type | 7 in (17.78 cm) TFT 16-bit true colour LCD screen |
| Display Resolution | 800 x 480 dots |
| Contrast | 16 files can adjustably screen and display progress bar |
| Interface | USB master-slave |
| Power Supply | 100 VACRMS to 120VACRMS (±10%), 45 Hz to 440 Hz, CATⅡ 120 VACRMS to 240 VACRMS (±10%), 45 Hz to 66 Hz, CATⅡ |
| Power Consumption | <30 W |
| Fuse | 2 A, Tlevel, 250 V |
| Size | 12.32 in x 4.25 in x 5.59 in (313 mm x 108 mm x 142 mm) |
| Weight | 4.59 lb (2.08 kg) |
