Overview

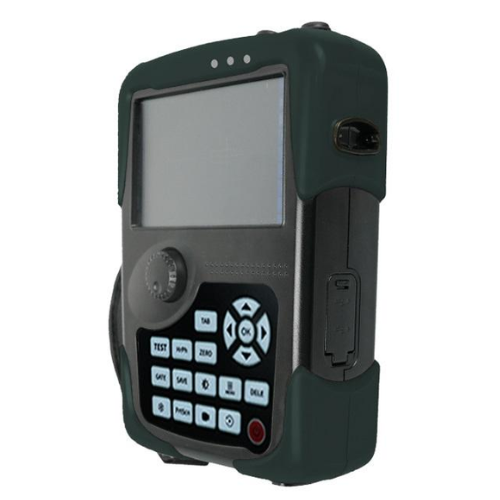

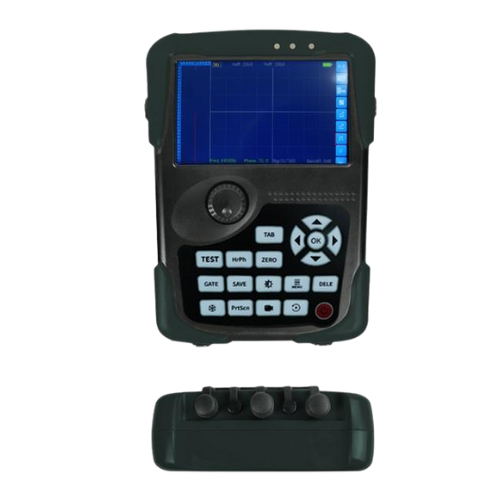

Emissions and Stack Portable Eddy Current Metal Crack Flaw Detector offers a compact and user-friendly solution for precise metal crack and flaw detection. This product features an IP65 waterproof rating, making it resistant to water, dust, and drops, and suitable for use in extremely harsh working environments. It complies with international standards, ensuring reliable performance for industries such as aerospace, petrochemicals, power energy, and rail transportation.This device utilizes advanced digital signal processing algorithms to suppress noise interference, improve the signal-to-noise ratio, and accurately detect even minute defects. Multiple frequency options allow optimization for different materials and testing needs, ensuring optimal inspection results. A high-resolution LCD screen clearly displays defect waveforms and parameters, simplifying defect analysis and evaluation.This product supports multiple testing modes, including absolute, differential, and reflection modes, and comes with built-in standard test blocks and customizable calibration functions for easy verification. It is compatible with various probes, allowing inspection of different shapes, sizes, and materials. With features such as dual-adjustment controls, smart gate functionality, multi-stage gain adjustment, and direct data/video export via USB, this device combines high-definition detection with user-friendly operation. Its built-in lithium battery supports over 8 hours of continuous use, making it a durable and cost-effective solution for professional flaw detection.
Features
- Dual-adjustment controls for easy and precise operation
- Supports single-ended, bridge, and coupled probes
- Ultra-wide 10Hz to 20MHz excitation frequency range
- Multi-stage high/low gain for optimal signal detection
- Smart gate automatically filters non-defect signals
- X/Y-axis bidirectional gain adjustment
- High-resolution LCD for clear waveform
- Direct USB export of data and videos
- Multiple digital filtering options to reduce noise
- User-friendly interface
- Built-in lithium battery for 8+ hours of continuous use
- IP65 waterproof, drop-resistant, and shockproof
- Compatible with various materials, shapes, and sizes
Technical Specifications
| Supported Probe Types | Bridge type single-ended, bridge type single-ended, bridge type, coupled |
| Incentive Frequency | 10 Hz to 12 MHz, 10 Hz to 12 MHz, 10 Hz to 20 MHz |
| Excitation Voltage | -10 V continuously adjustable, step 0.1 V -10 V continuously adjustable, step 0.1 (0 V to 12 V) continuously adjustable, step 0.1 |
| High Amplification Gain | 0 to 50, step 1 continuously adjustable 0 to 50, step 1 continuously adjustable 0 to 100, step 1 continuously adjustable |
| Drive Level | Level 4 Level 8 Level 8 |
| Microprocessors | 32-bit dual core 32-bit dual core 64-bit dual core |
| Pre-storable Detection Parameters | 10,000 100,000 1,000,000 |
| Memory | 8GB non-expandable 8GB non-expandable 64GB expandable up to 1TB |
| Waterproof Rating | none IP54 IP65 |
| Operating Temperature | 32 °F to 104 °F (0 °C to 40 °C) |
| Product Weight | 3.09 lb (1.4 kg) |
| Size/Dimension | 8.39 in x 6.50 in x 2.36 in (21.3 cm x 16.5 cm x 6 cm) |
