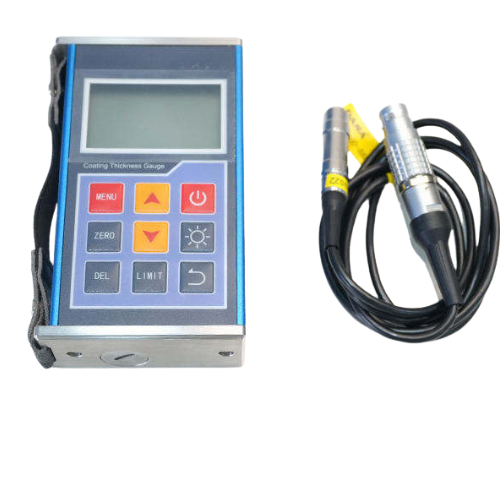

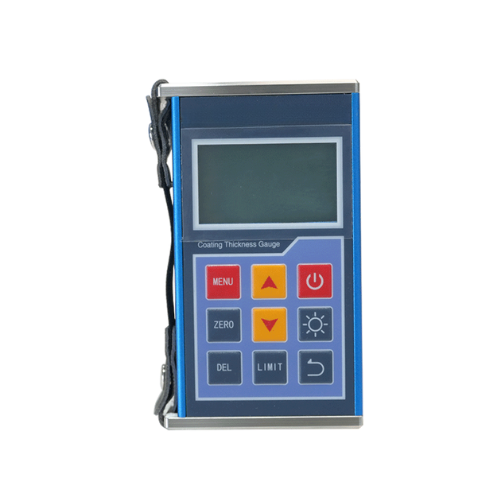

Name: Portable LCD Display Digital Film Thickness Coating for Car Paint - Emissions and Stack -
SKU: EMSPSTG-005

Features

Dual Mode: Magnetic & eddy-current, FE/NFE compatible
Wide Range: 0–1250 µm coating thickness
Accurate & Precise: 0.1 µm resolution, ±(2%H + 1 µm) accuracy
Bright Display: Backlit 128×64 LCD
Memory Function: 5 files × 100 values
Travel-Friendly: Lightweight (340 g), compact size, plus 2-year warranty and customization available

Technical Specifications

Specification	Details
Measurement Range	0 to 1250 µm; up to 0.39 in (10 mm) with special probe F10
Measurement Principle	Magnetic induction and eddy current
Substrates Supported	Ferrous (FE) and Non-Ferrous (NFE) materials
Resolution	0.1 µm or 0.01 mil
Accuracy	±2%H + 1 µm
Display	128 × 64 LCD with backlight
Memory Capacity	5 files × 100 readings
Power Supply	2 × AA batteries
Operating Temperature	14 °F to 122 °F (–10 °C to +50 °C)
Storage Temperature	–22 °F to 158 °F (–30 °C to +70 °C)
Product Weight	11.99 oz (340 g)
Dimensions (L × W × H)	4.53 in × 2.64 in × 1.22 in (115 mm × 67 mm × 31 mm)
