Overview

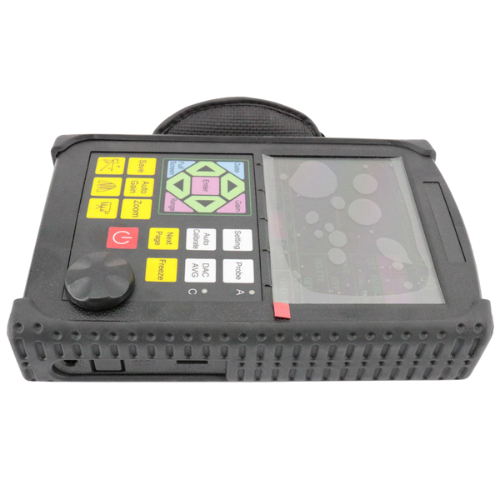

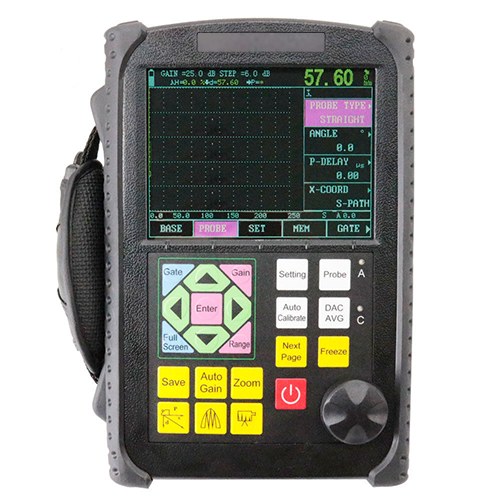

Emissions and Stack Portable NDT Ultrasonic Flaw Detector 0 to 32.81 ft Range with Probes is a portable industrial non-destructive flaw detection device that rapidly, easily, and accurately inspects, locates, evaluates, and diagnoses various defects such as cracks, inclusions, and pinholes in a workpiece without causing any damage. This device is suitable for both laboratory and field applications. It can be widely used in industries requiring defect inspection and quality control, including manufacturing, iron & steel metallurgy, metalworking, and chemical sectors. This product is also applicable in active safety inspections and service-life evaluations in fields such as aerospace, railway transportation, and boiler pressure vessel maintenance. It is an essential instrument for the non-destructive inspection industry.
Features
- Covers a wide measuring range for various inspection needs
- Delivers accurate results with minimal measurement errors
- Works with multiple probe types thanks to a broad frequency range
- Adjustable gain to fine-tune sensitivity for different materials
- Supports single, dual, and thru measurement modes for flexibility
- Can measure a wide variety of materials with different velocities
- Allows rejection adjustment to filter out unwanted signals
- Performs reliably in both cold and hot environments
- Lightweight and easy to carry for field or lab use
- Compact size for comfortable handling and storage
Technical Specifications
| Measuring Range | 0 ft to 32.81 ft (0 mm to 10000 mm) |
| Vertical Linearity Error | ≤3% |
| Horizontal Linearity Error | ≤0.1% |
| Sensitivity Leavings | ≥62 dB |
| Dynamic Range | ≥34 dB |
| Resolving Power | ≥36 dB |
| Frequency Range | 0.5 MHz to 15 MHz |
| Gain | 0 dB to 120 dB |
| Material Velocity | 3280.84 ft/s to 49212.6 ft/s (1000 m/s to 15000 m/s) |
| Measurement Mode | Single, Dual, Thru |
| Reject | 0% to 80% |
| Pulse Displacement | -20 to +3400 μs |
| Zero | 0.0 to 99.99 μs |
| Port Type | BNC or LEMO |
| Operating Temperature | -4 °F to 122 °F (-20 °C to 50 °C) |
| Weight | 2.2 lb (1 kg) with battery |
| Dimensions (H × W × D) | 9.45 in x 6.14 in x 1.97 in (240 mm x 156 mm x 50 mm) |
