Overview

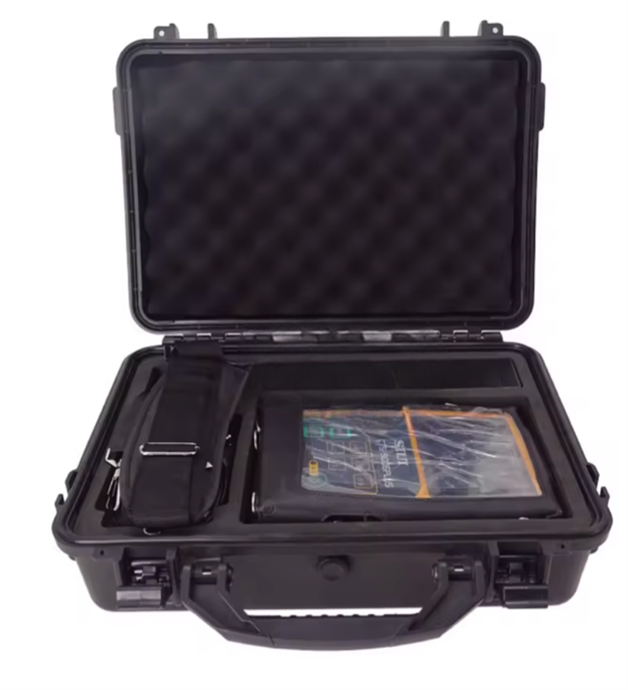

Emissions and Stack Portable Ultrasonic Flaw Detector for Rail and Metal Weld Inspection delivers a high-performance solution for nondestructive testing of rail and metal welds. This device utilizes advanced ultrasonic technology with high-power square wave transmission, offering strong penetration, wide bandwidth, and high-resolution detection. It supports precise thickness measurement, dynamic recording, and remote network video control. Compact and lightweight, this product is easy to operate in the field with a simple, intuitive interface and long-lasting battery for extended use.
Features
- High-power square wave transmission for strong penetration and wide bandwidth
- High-resolution detection for precise flaw identification
- Remote control and dynamic recording of thickness measurements
- Compact and lightweight, weighing only about 1.25 lb for easy field use
- Simple one-handed operation with few, clearly labeled buttons
- Adjustable working frequency range: 0.5 to 20 MHz in 11 levels
- Pulse voltage and width adjustable for sharp or square waves
- High-brightness 5.7″ color TFT LCD display, 640 × 480 pixels
- Long battery life: operates ≥7 hours continuously
- Multilingual interface: supports Chinese, English, Japanese, Spanish, French, German, Russian
Technical Specifications
| Attenuator error | Every 12dB ± 1dB |
| Vertical linear error | ≤3% |
| Horizontal linear error | ≤0.5% |
| Dynamic range | ≥30dB |
| Sensitivity surplus | ≥70 (2.5Z20N probe) |
| Far-field resolution | ≥26dB |
| Electric noise level | S10 (1 to 4 MHz)% |
| Working frequency range | 0.5 MHz to 20 MHz, adjustable in 11 levels |
| Pulse repetition frequency | 20 Hz to 2000 Hz, step 20 Hz |
| Pulse voltage | 50 V to 500 V, adjustable |
| Pulse width | Sharp pulse or square wave, adjustable width 51 to 850 ns |
| Language | Chinese / English / Japanese / Spanish / French / German / Russian |
| Display | High-brightness 5.7″ color TFT LCD, 640 × 480 pixels |
| Working hours | ≥7 h |
| Working temperature | 14 °F to 104 °F (-10 °C to 40 °C) |
| Weight | About 2.76 lb (1.25 kg including battery) |
| Size | 5.98 in × 9.45 in × 2.05 in (152 mm × 240 mm × 52 mm) |
