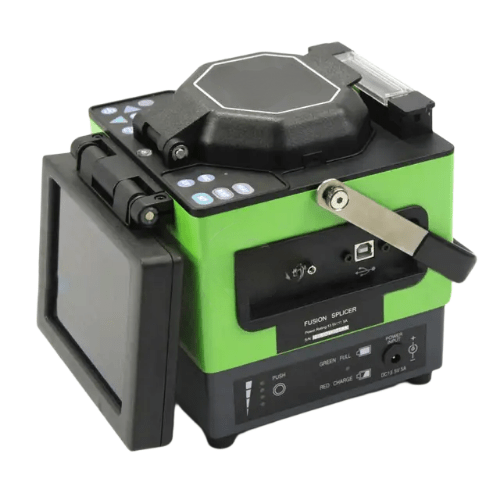

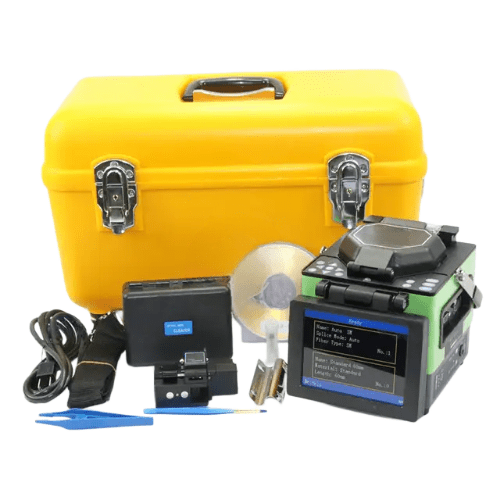

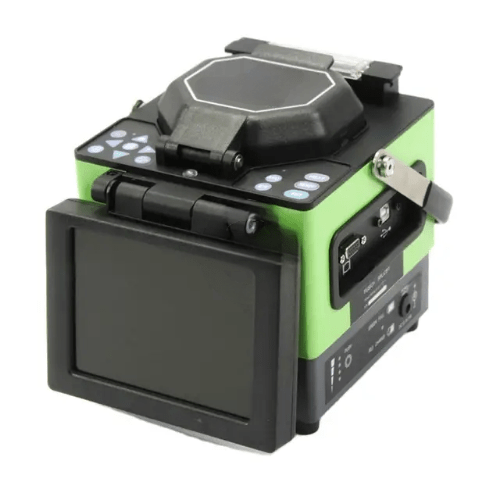

Feature
- Core-Core & Clad – Clad Alignment
- PAS Technology
- Fiber core & clad display with high resolution

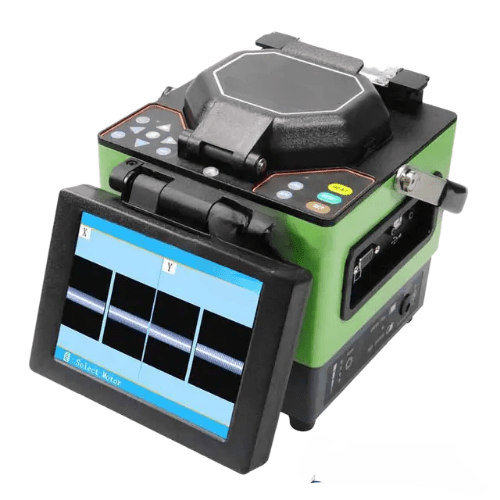

- X & Y view display or X or Y single display
- Auto check leaved end face
- 7 in (14.48 cm) color LCD
- Software update via USB port
Technical specifications
| Applicable fibers | SM MM DS NZDS |
| Fiber diameter | Cladding diameter: 80 μm to 150 μmCoating diameter: 100 μm to 1000 μm |
| Fiber count | Single |
| Fiber cleaved length | 0.472 in to 0.63 in (12 mm to 16 mm)(Coating diameter: 250 μm) |
| Actual average splice loss | 0.02 dB (SM), 0.01 dB (MM), 0.04 dB (DS), 0.04 dB (NZDS) |
| Typical splicing time | Typical 9 s (standard SM fiber) |
| Return loss | >60 dB |
| Splicing mode | Auto Calibrate Normal Special |
| Fiber aligning method | Meticulous, Core, Clad, Manual |
| Splicing program | 53 (templet), 40(user) |
| Tube heating program | 9 (templet), 24(user) |
| Tube typical heating time | Typical 30 s |
| Protection sleeve length | 2.36 in (60 mm), 1.57 in (40 mm) |
| Storage of splice result | 4000 results, 20 parameter per result |
| Fiber image magnification | 300 x (X or Y view)150 x (X and Y view) |
| Battery capacity | Typical 400 cycles (splice or tube heat with inner Li battery) |
| Monitor | 5.7 in (14.48 cm) color LCD monitor |
| Tension test | 2 N |
| Electrode life | 2500 |
| Terminal | USB |
| Power supply | AC 100 V to 240 V with AC adapter Inner Li battery (7800 mAh)DC 13.5 V |
| Operating condition | 0 mi to 3.11 mi (0 m to 5000 m) above sea level14 ° F to 122 ° F (-10 °C to 50 ℃)
Max wind velocity of 15 m/s |
| Dimension | 5.91 in x 5.91 in x 5.91 in (150 mm x 150 mm × 150 mm) |
| Weight | 5.62 lb (2.55 kg) excluding battery6.72 lb (3.05 kg) including battery |
