Overview

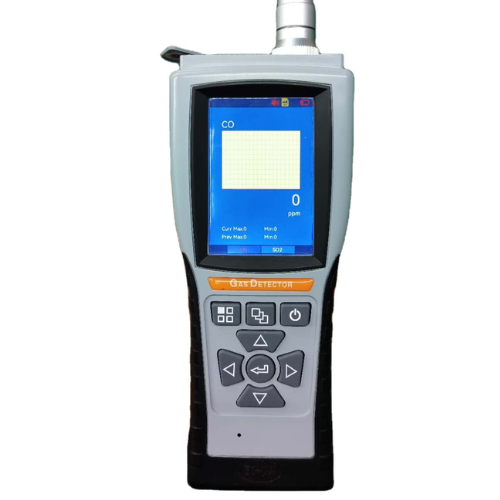

This advanced handheld gas detector offers precise and reliable monitoring with a full-color 3.5″ TFT screen, providing both digital and curve displays of gas concentration. Its intelligent probe design simplifies calibration and maintenance, while smart alerts guide users through faults, warnings, operator errors, and alarms.
Features
- Intelligent Probe design, convenient calibration and maintenance.
- Fault, Warning, operator error, alarm will be smart tips.
- Built-in CF calibration coefficients (VOC measurements only valid).
- With audible alarm, visual alarm function, the status bar also displays alarm status.
- Full color 3.5-inch TFT screen, color LCD display and intuitive.
- Can be both digital and curve display of gas concentration in two ways.
- With USB communication port, you can speed 9600 bytes to communicate directly with the computer.
- With test record function, can store a month’s measurement data and instrument or computer can view the data , Memory capacity is 2M,can store more than 90,000 pieces of data.
- With alarm recording function, you can record the last four times the alarm time and type.
- With calibration record; can record the last four times the size of the calibration time span.
- High-capacity lithium battery-powered, rechargeable, low battery automatic shutdown.
Technical Specifications
| Power Supply | Lithium battery (3.7V/3000mAh) |
| Sampling Way | Pump type |
| Operating Current | Normal current: ≤ 150mA; Alarm current: ≤ 200mA |
| Operating Environment | Temperature: -40 ℃ – 70 ℃,Relative Humidity: 15% – 95%, non-condensing |
| Storage Environment | Temperature: -20 ℃ – 60 ℃,Relative humidity: ≤ 90%, no condensation |
| Cover Material | PC |
| Dimensions | 228 * 84 * 50.5mm |
| Installation | Handheld / Stand-in |
| Weight | 0.55 kg |
| Response Time | T90<10S |
