Overview

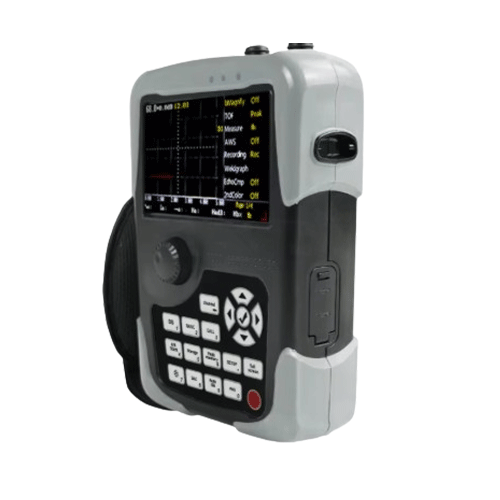

Emissions and Stack Ultrasonic Flaw Detector for Metal Cracks offers a high-precision solution for detecting internal cracks and defects in metal materials. It utilizes ultrasonic waves to penetrate metals and reflect at interfaces, allowing accurate identification of flaws in copper, aluminum, iron, and steel welds. This device features smart dual-gate detection, high-speed sampling, and full-screen waveform expansion for precise inspections. It is compact, waterproof, and shockproof, ideal for fieldwork and high-altitude operations, while supporting advanced data management and automated calibration for efficient, reliable testing.
Features
- High-precision ultrasonic flaw detection for internal metal cracks
- Dual-gate detection with auto echo tracking and full-screen waveform
- IP54 waterproof and dustproof design for field and harsh environments
- High-speed 400MHz hardware sampling with waveform recording/playback
- Wideband low-noise amplifier supporting various probes
- Compact, rugged, and shockproof for easy portability
- Advanced data management: stores up to 1,000 waveform images
- One-touch functions: peak memory, envelope mode, full-screen zoom, screenshot capture
- Auto-gate defect wave detection with secondary wave color differentiation
- Multi-language support: Chinese, English, Russian, and customizable
Technical Specifications
| Detection Range | 0 in to 393.70 in (0 mm to 10,000 mm) |
| Sound Velocity | 1000 mm/s to 15000 mm/s |
| Sensitivity Reserve | ≥ 62dB |
| Dynamic Range | ≥ 46dB |
| Horizontal Linearity Error | ≤ 0.1% |
| Vertical Linearity Error | ≤ 3% |
| Far Field Resolution | ≥ 28dB |
| Memory | 8GB |
| Frequency Bands | 0 MHz to 5 MHz, 5 MHz to 15 MHz |
| Clutter Suppression | Yes |
| Noise Reduction | None |
| Secondary Wave Color | Yes |
| Pulse Type | 400V Spike |
| Wave Comparison | None |
| Language Support | Chinese/English/Russian/Customized |
| Probe Delay | 0.0 μs to 199.9 μs |
| Gain Control | 0 db to 110 dB (Adjustable in 0.0/0.1/0.5/1.0/2.0/6.0dB steps) |
| Damping | High/Low |
| Operation Mode | Single/Dual Probe |
| Detection Mode | Full/Positive/Negative Half-wave, RF |
| PRF | 40 Hz/250 Hz/1000Hz (Selectable) |
| Pulse Shift | -0.39 in to 78.74 in (-10.0 mm to 2,000 mm) |
| Sampling Rate | 400MHz (Hardware-based) |
| Measurement Mode | Leading Edge/Peak |
| Auto Gain | 20% to 85% (5% steps) |
| Interfaces | 2× USB-A/B |
| Display | 5.0 in TFT LCD (800×480 pixels) |
| Power Supply | AC 100V to 240V, ≥6 hours battery life |
| Operating Temperature | 14 °F to 122 °F (-10 °C to 50 °C) |
| Weight | 2.2 lb (1.0 kg) |
| Size/Dimensions | 1.976.30.19 in (5016012 mm) |
