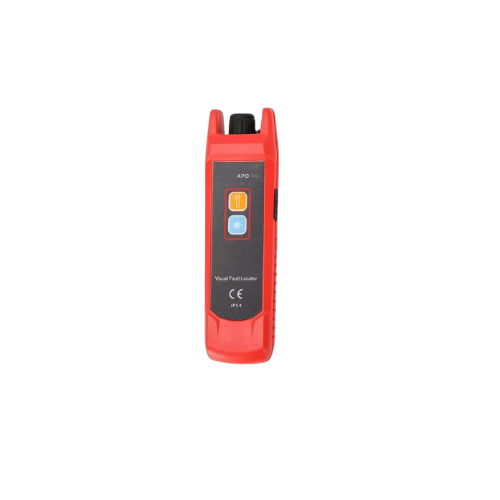

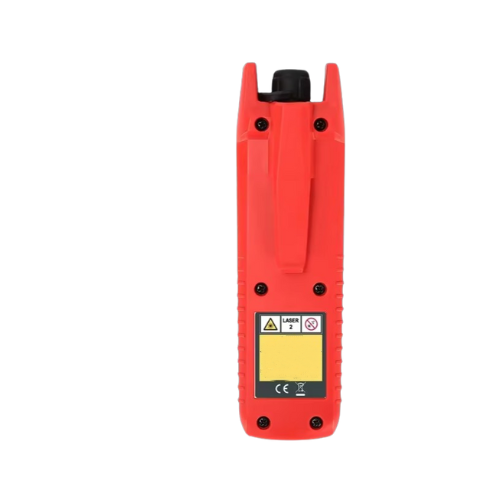

Visual Fault Locator Optical Fiber and Cable Tester with Flashlight – Emissions And Stack

Visual Fault Locator Optical Fiber Tester with red light source, flashlight function, and accurate break detection for efficient fiber network testing.

SKU: EMSVFL-123 Category:

Technical Specifications

Laser Output Power ≥1mW
Optical Fiber Length Range 2 to 3km
Wavelength of Redight 650±10nm
Optical Fiber Adapter 2.5mm FC general connector
Battery Type 3.7V 1050mAh polymer lithium battery
Battery Life >12h
Battery Status Display The battery status will be shown by 4 blue LED (not in flashlight)
Green Indicator Indicates auto power off state which LED will flash white light for 3 times
Laser Mode Continuous mode/Pulse mode
Charge Voltage and Current DC 5V, <1A
APO 15min auto power off (manual adjustable)
Warning Symbol
Warning
Key Press Test >5000 times
Drop Test 1m
