Features

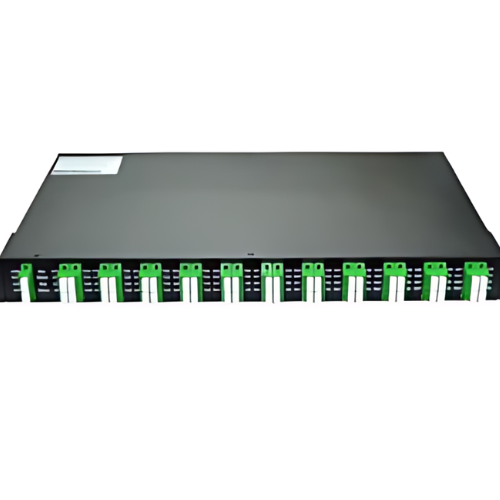

- Up to 48CH Rack Chassis100G AWG (48CH 100G DWDM Mux Demux)
- Insertion Loss Ripple: 1.0db
- Optical Return loss: 40db
- Band: C-Band, L-Band, C+L-Band, Customize is optional
- Number of Channels: 16CH, 32CH, 40CH, 48CH, Special is optional
- Spacing: 50G, 100G, 200G, Special is optional
- Filter Shape: Gaussian, Broad Gaussian, Flat Top is optional
- Package: Module, Rack, Special is optional
- Fiber Length: 0.5m, 1m, 1.5m, 2m, 2.5m, 3m, Specify is optional
- Ln, Out Connector: FC or APC or FC or PC or SC APC or SC or PC or LC or APC or LC or PC or ST or UPC or Specify is optional
Technical Specifications
| The Channel Spacing | 0.8 Nm |
| Spacing | 100 GHz |
| Number Of Channel | 48 CH |
| Protocol Transparent | 10 Mbps to 100 Gbps |
| Transmission Distance | Up to 49.71 mi (80 Km) |
| Fiber Length | 1 m or Customized |
| Operating Wavelength | Itu 100 GHz Grid |
| Wavelength | C21-C60 |
| Specification | 4.72 in x 2.95 in x 0.47 in (11.99 cm x 7.49 cm x 1.19 cm) |
| Total Crosstalk | 22 dB |
| Return Loss | 40 dB |
| Maximum Continuous Optical Power | 250 mw |
