Overview

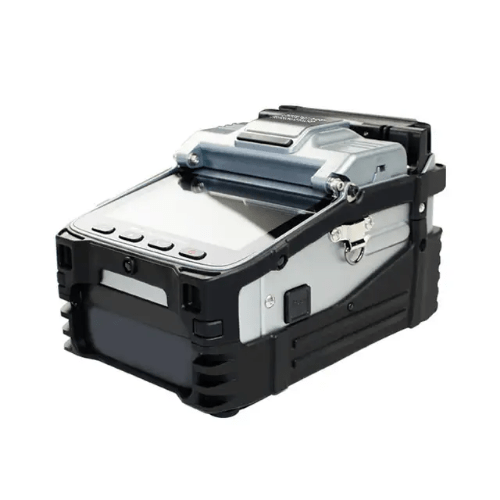

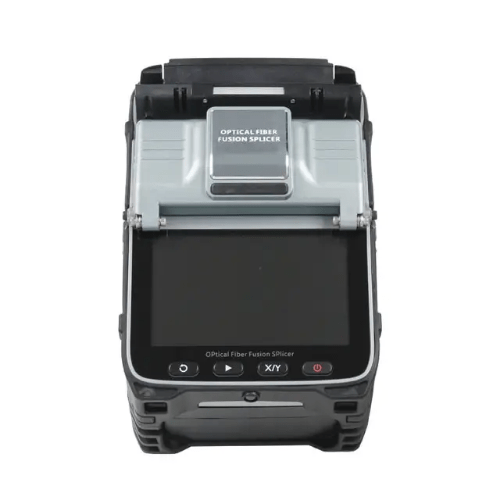

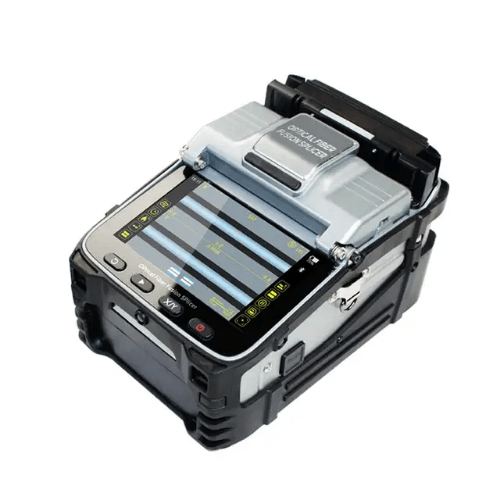

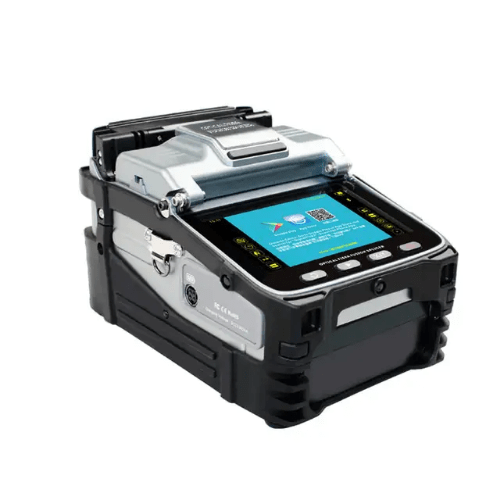

Emissions And Stack Automatic Fiber Fusion Splicer’s splicing process begins by preparing each fiber end for fusion. Stripping is the act of removing the protective polymer coating around optical fiber in preparation for fusion splicing. The customary means to clean bare fibers is with alcohol and wipes. The fiber is then cleaved using the score-and-break method so that its end-face is perfectly flat and perpendicular to the axis of the fiber. Current fusion splicers are either core or cladding alignment. Using one of these methods the two cleaved fibers are automatically aligned by the fusion splicer in the x,y plane, then are fused together.
Feature
- 18 s fast heating
- 8 s fast splicing
- 5 in (12.7 cm) display simultaneously
- Align fibers loss display
- Automatic heating
- Disassembly free 3 in 1 fiber holder
- 6 motors
- Core alignment
- Can charge the phone
- Convenient for night operation
- 7800 mAh large capacity battery
- Charging time ≤3.5 hrs
- 240 times continuous splicing and heating
- 3 in 1 fiber holder
- Industrial quad core chip CPU
- Synchronous operation
- Speed response
- No jammed
Technical specifications
| Product model | AI 7C |
| Applicable fiber | SM, MM, DS, NZDS,BI |
| Cladding diameter | 80 um to 150 um |
| Coating diameter | 100 ums to 1000 um |
| Typical splice loss | SM: 0.02 dB; MM: 0.01 dB; DS: 0.04 dB; NZDS: 0.04 dB; BI: 0.02 dB |
| Return loss | Better than 60 dB |
| Cutting length | 0.315 in to 0.63 in (8 mm to 16 mm) |
| Operating mode | manual, automatic |
| Heating | with automatic heating |
| Typical welding time | 7 s |
| Heating time | 15 s |
| Optical fiber amplification and display | X, Y single fiber display amplification 300 times, X, Y fiber simultaneous double display amplification 100 times |
| Welding result record | 3000 sets of welding records can be stored |
| Splice loss | Automatic evaluation |
| Pull test | 1.8 N to 2.2 N |
| Operation interface | GUI graphical menu interface, easy to operate |
| Electrode life | more than 5,000 times can be welded, the user can easily replace the electrode |
| Operating environment | Altitude: 0 mi to 3.01 mi (0 m to 5000 m); Relative humidity: 0 % to 95 %Temperature: -4 °F to 122 °F (-20 °C to +50 °C);
Wind speed: 15 m/s |
| Volume | 5.18 in x 6.06 in x 5.19 in (130 mm × 154 mm × 132 mm) |
| weight | 4.28 lb (1.95 Kg) including battery |
