Overview

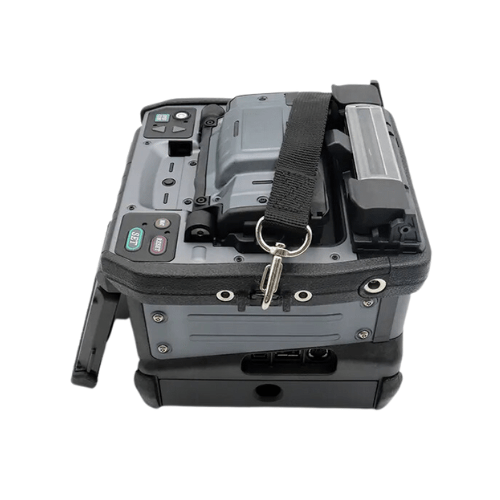

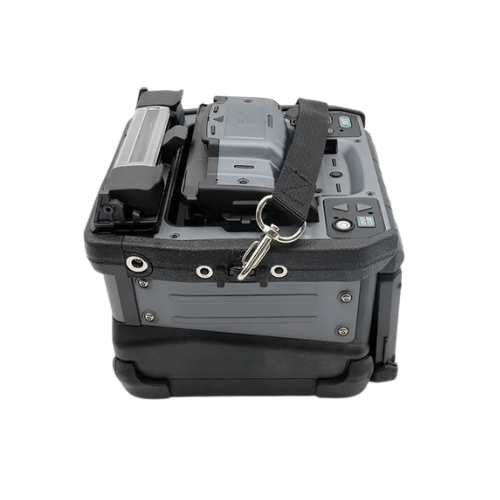

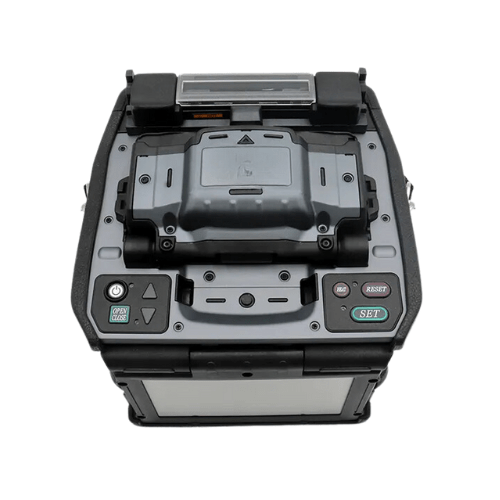

Emissions And Stack fiber fusion machine is mainly aimed at users who focus on core alignment fusing applications. It is equipped with a wind shield that can be switched on and off automatically, a color LCD touch screen and a large lithium battery. It is a high-quality fiber core alignment fiber fusion machine, which can be applied to all kinds of trunk lines, MAN, and access network of fiber connection engineering.
Features
- Core alignment
- Single core fiber fusion machine
- Automatic on and off wind shield
- Automatic induction heating function
- Convenient heat shrinks sleeve positioning mode
- Multifunctional sheathed press plate
- Replace electrode rod without tool
- Large capacity 6380 mAh lithium battery
- 5 in (12.7 cm) color LCD touch screen
- Built-in video and PDF instructions
Technical specifications
| Optical Fiber Alignment | Fiber core alignment |
| Applicable Optical Fiber Types | SMF (G.652), MMF (G.651), DSF (G.653), CSF (G.654), NZDSF (G.655), BIF (G.657) |
| The Cladding Diameter | 80 μm – 150μm |
| Diameter Of Coating Layer | 100 μm to 0.12 in (3 mm) |
| Fiber Cutting Length | 0.197 in to 0.63 in (5 mm to 16 mm) |
| Fusion Or Heating Mode | 100 weld modes and 30 heating modes |
| Welding Loss | 0.02 dB (SM), 0.01 dB (MM), 0.04 dB (DS), 0.04 dB (NZDS), 0.04 dB (CS) |
| Welding Time | SM FAST mode: 7 s |
| Heating Time | 60mm mode: 25 s |
| Fusion Result Storage | 20,000 records, 100 fused image storage |
| Optical Fiber Observation Mode | Two-axis viewing 5 in (12.7 cm) TFT color touch screen |
| Magnification | X or Y alone shows 320 times and X, or Y simultaneously shows 200 times |
| Tensile Test | 2 N |
| Return Loss | > 60 dB |
| Corresponding To Heat Shrinkable Tube | Miniature heat shrinks tubes for 2.36 in (60 mm), 1.57 in (40mm) and Fujiura |
| Battery Fusion Heating Times | Sustain 300 fusion heating cycles with BTR-15 lithium battery (6380 mAh lithium battery) |
| Ac Power Supply | 100 V to 240 V AC (50 Hz to 60 Hz) |
| Electrode Rod Life | Weld more than 5000 cores |
| Interface | USB 2.0 (Mini-B), used for PC connection, supports Internet networking software upgrade; USB 2.0 (Type A), which can be used to connect external LED lights and charge mobile devices; 6-pin Mini-DIN port for RS02 or 03 hot stripping pliers power supply |
| Operating Conditions | Altitude: 0 mi to 3.011 mi (0 m to 5000 m), wind speed: 15m/s Temperature: 14 ° F to 41 ° F (-10 ° C to 5 ℃, humidity: 0 % to 95 %RH Fall resistance: 29.92 in (76 cm) height free fall in six directions |
| Anti-corrosion Performance | Rainproof: The precipitation is 0.39 in (10 mm) / hr. for 10 minutes Dust proof: exposed to dust (0.1 μm to 500 μm size of aluminum silicate particles) |
| Optical Fiber Alignment | Fiber core alignment |
| Applicable Optical Fiber Types | SMF (G.652), MMF (G.651), DSF (G.653), CSF (G.654), NZDSF (G.655), BIF (G.657) |
| The Cladding Diameter | 80 μm to 150 μm |
| Diameter Of Coating Layer | 100 μm to 0.118 in (3 mm) |
| Fiber Cutting Length | 0.197 in to 0.63 in (5 mm to 16 mm) |
| Fusion/Heating Mode | 100 weld modes and 30 heating modes |
| Welding Loss | 0.02 dB (SM), 0.01 dB (MM), 0.04 dB (DS), 0.04 dB (NZDS), 0.04 dB (CS) |
| Size | 6.69 in x 6.8 in x 59 in (170 mm x 173 mm x 150 mm) (excl. protrusion) |
| Weight | Contain batteries 5.95 lb. (2.7 kg) |
