Features
- High-accuracy diesel emission testing with 0.1% resolution

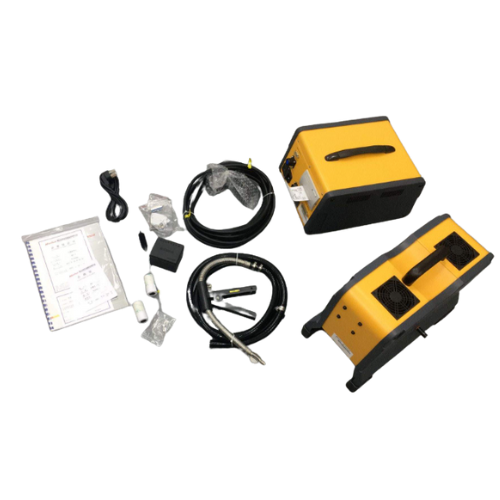

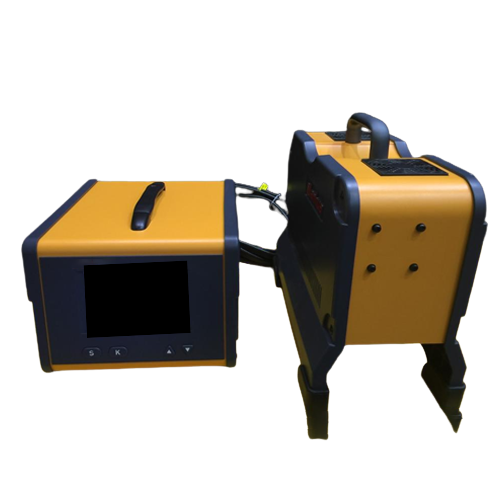

- Split-structure design for easy handling and operation
- Supports free acceleration tests and transient measurement
- Advanced optical protection with scavenge air curtain technology
- Equipped with RS-232C interface for external computer communication
- Optional micro printer and various RPM measurement sensors
Technical Specifications
| Type | Diesel exhaust emission gas analyzer with opacimeter |
| Measuring Range | Opacity: 0 to 99.99% Light absorption coefficient: 0 to 16.0 m⁻¹ |
| Resolution | Opacity: 0.1% |
| Accuracy | Opacity (uncorrected): ±20% (abs.) Revolving speed: ±1% (rel.) Oil temperature: ±3.6 °F (±2 °C) |
| Revolving Speed Range | 300 to 9,999 rpm |
| Oil Temperature Range | -58 °F to 248 °F (-50 °C to 120 °C) |
| Optical Path Length | Effective: 8.46 in (215 mm) Equivalent: 16.93 in (430 mm) |
| Sampling Probe Length | 8.2 ft (2.5 m) |
| Interface | RS-232C digital serial port |
| Power Supply | AC 220 V ±10% / 110 V, 50 Hz ±1 Hz |
| Power Consumption | 200 W |
| Control Unit Dimensions | 14.57 in x 11.02 in x 8.66 in (370 mm x 280 mm x 220 mm) |
| Measuring Unit Dimensions | 16.14 in x 8.46 in x 14.17 in (410 mm x 215 mm x 360 mm) |
| Control Unit Weight | 12.13 lb (5.5 kg) |
| Measuring Unit Weight | 14.33 lb (6.5 kg) |
