Overview

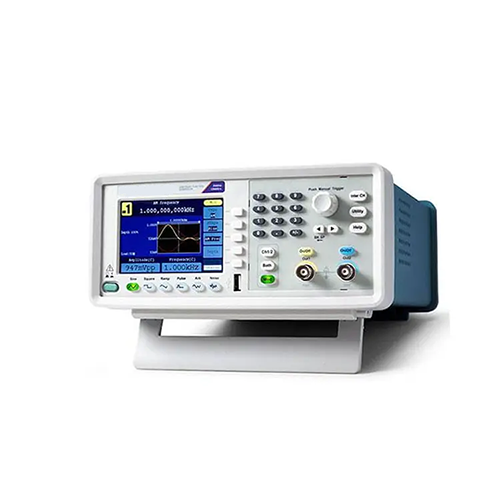

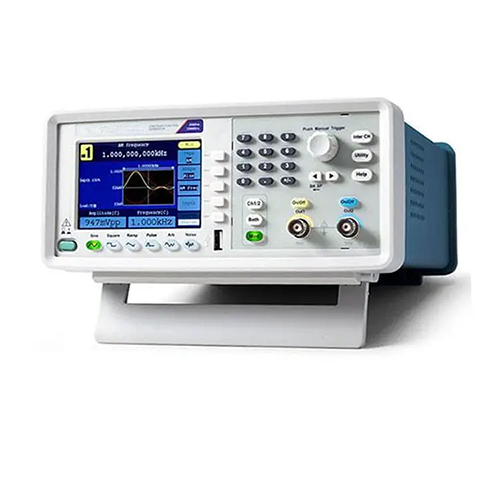

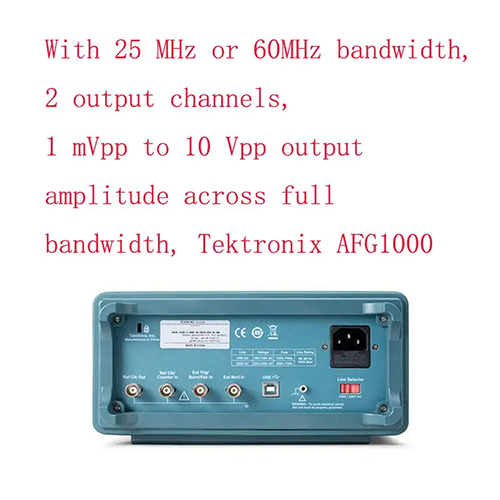

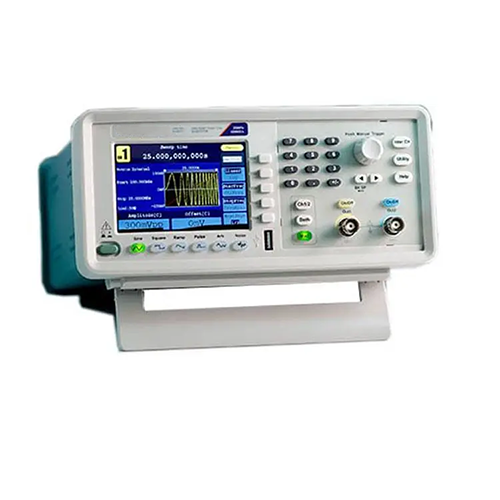

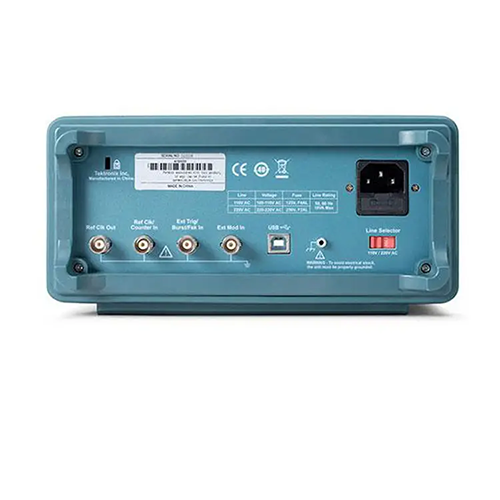

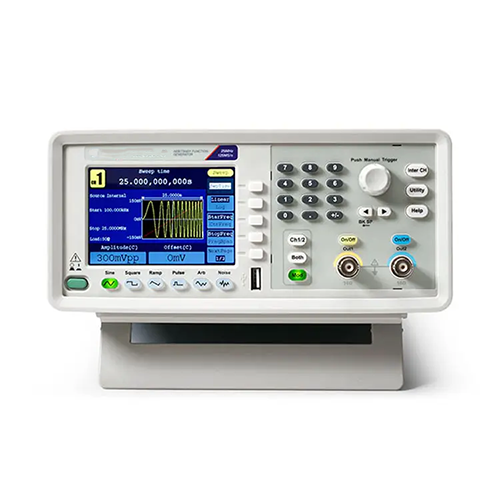

Emissions And Stack arbitrary waveform function generator provides a waveform generation tool with the best price performance ratio. It includes two models with dual channels, up to 60 MHz bandwidth and up to 10 Vp-p output amplitude. The four run modes, 50 built-in frequently used waveforms and the built-in 200 MHz frequency counter cover most waveform generation needs in experiment and test jobs. The 3.95 in (10.03 cm) TFT LCD, short-cut buttons, USB interface and PC software provide the most intuitive ways to configure the instrument.
Features
- Supports versatile modulation modes: AM, FM, PM, ASK, FSK, PSK, PWM
- 64 Mbyte internal-volatile memory for arbitrary waveform storage
- Built-in 200 MHz counter for precise measurements
- Amplitude 1 mVp-p to 10 Vp-p into 50 Ω loads
- 14-bit, 300 MS/s, 8k-point arbitrary waveforms
- Dual channel: 25 MHz/60 MHz sine, 12.5 MHz/30 MHz square
- Standard USB host or device for memory expansion and remote control
- Arb Express for easy user-defined waveform editing via USB stick
Technical Specifications
| Bandwidth | 25 MHz or 60 MHz |
| Analog channel | 2 |
| Frequency | 1 uHz to 25 MHz or 60 MHz |
| Record length | 8 k points |
| sampling rate | 125 MS/s or 300 MS/s |
| Amplitude | 1 mVp-p to 10 Vp-p into 50 Ω loads |
| Vertical Resolution | 14 digits |
| Display | 3.95 in (10.03 cm) |
| USB | Host and device USB TMC compliance |
| Output Impedance | 50 Ω |
| Local Impedance Setting | 50 Ω, 1 Ω to 10.000 kΩ, High Z (adjust displayed amplitude according to selected load impedance) |
| Weight | 7.5 lb (3.4 kg) |
| Dimensions | 9.0 in x 4.4 in x 12.1 in (230 mm x 110 mm x 306 mm) |
