Features
- 1 μHz full-band resolution
- 5 MHz to 30 MHz pulse waveform, adjustable rise or fall time
- 14-bit or 16-bit vertical resolution
- Two equivalent-performance channels
- Max arbitrary waveform length of 8k/16M points; 48/161
- non-volatile waveforms storage
Technical Specification
| Max frequency | 60 MHz or 80 MHz or 120 MHz |
| Channels | 2 |
| Sampling rate | 320 MS/s |
| Waveforms | Sine, square, ramp, pulse, noise, DC, arbitrary; only: harmonic |
| Working modes | Output on or off, continuous, modulation, sweep, burst |
| Modulations | AM, FM, PM, ASK, FSK, PSK, PWM, BPSK, QPSK, OSK, DSB-AM, SUM, QAM |
| Length | 8 pts to 16 Mpts |
| Vertical resolution | 16 bits (symbol included) |
| Sine | 1 μHz to 60 MHz or 1 μHz to 80 MHz or 1 μHz to 120 MHz |
| Square | 1 μHz to 25 MHz or 1 μHz to 25 MHz or 1 μHz to 30 MHz |
| Pulse | 1 μHz to 20 MHz or 1 μHz to 25 MHz or 1 μHz to 30 MHz |
| Ramp | 1 μHz to 3 MHz or 1 μHz to 4 MHz or 1 μHz to 5 MHz |
| Harmonic | 1 μHz to 30 MHz or 1 μHz to 40 MHz or 1 μHz to 60 MHz |
| Arbitrary | 1 μHz to 15 MHz or 1 μHz to 20 MHz or 1 μHz to 25 MHz |
| Noise | 60 MHz (-3dB) or 80 MHz (-3dB) or 120 MHz (-3dB) |
| Resolution | 1 μHz |
| Accuracy | ±0.5 ppm 77 ℉ (25℃)First year aging rate: 1 ppm
Temperature coefficient: ±0.5 ppm/℃ |
| Temperature Coefficient | 3.6 ℉/million |

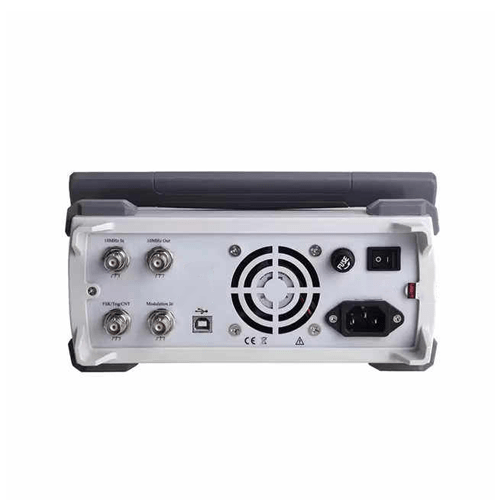

| Interfaces | USB Host, USB Device, 10 MHz clock source input/output |
| Power | 100 V to 240 V ACrms, 50 Hz/60 Hz |

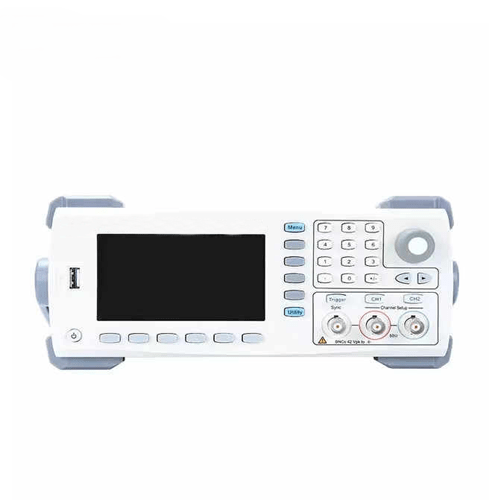

| Display | 4.3 in (10.92 cm) TFT LCD, WVGA (480 pixels x 272 pixels) |
| Product net weight | 7.05 lb (3.2kg) |
