Overview

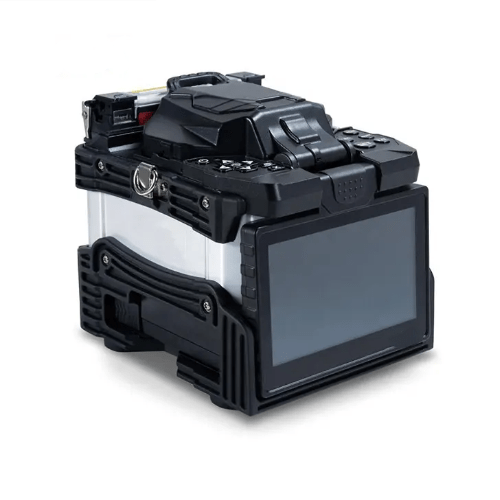

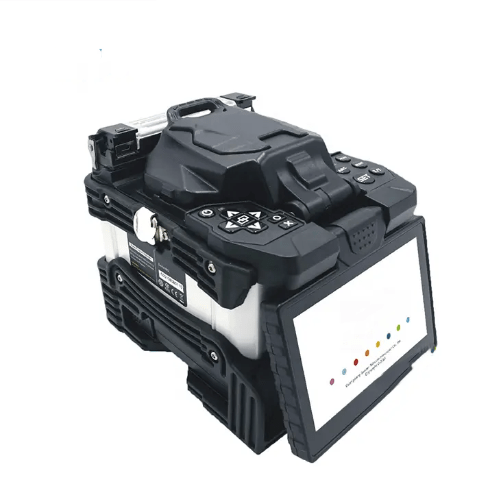

Emissions And Stack automatic alignment core fiber backbone fusion splicers have been used for joining two optical fibers end to end using heat, to fuse the two fibers together in such a way that light passing through the fibers is not scattered or reflected back by the splices, and so that the splices and the regions surrounding them are almost as strong as the virgin fibers themselves.
Features
- Fiber type identification function, 6 motors core alignment
- V groove precise alignment, high quality and low loss
- Auto splicing mode, using friendly design
- Dust proof, waterproof, high temperature resistance, adapting to various altitude and harsh environment
- 5 pixels high resolution color LCD touch screen, 500 X magnification, visible clearly with bare eyes

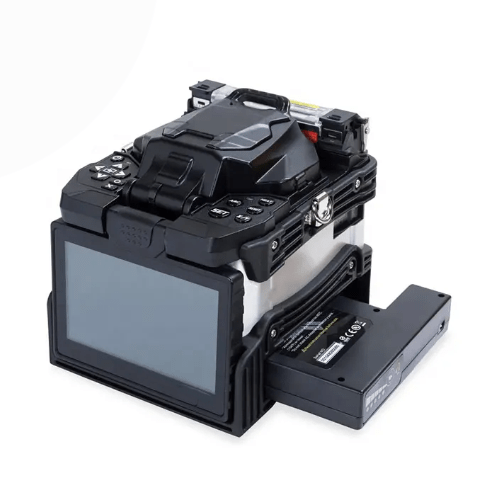

- Packed with detachable 5200 mAh battery, more than 280 times of splicing and heating
- High power LED white light simplifies your work at night
- Detachable multifunction fixture
- suitable for various fiber type
Technical Specifications
| Number of Fiber | Single |
| Compatible Fiber/Cable | 0.0098 in to 0.11 in (0.25 mm to 3.0 mm) or Indoor Cable |
| Cleaved Length | Diameter: 0.0049 in to 0.039 in (0.125 mm to 1 mm) or Cleave Length: 0.31 in to 0.63 in (8 mm to 16 mm) |
| Splicing Mode | Pre-set 41 splicing modes, max 100 pixels modes |
| Heating Mode | Pre-set 5 heating modes (0.78 in or 1.18 in or 1.57 in or 1.96 in or 2.36 in) (20 mm or 30 mm or 40 mm or 50 mm or 60 mm), max 100 pixels modes |
| Typical Splice Loss | 0.01 dB to 0.05 dB |
| Return Loss | ≥60 dB |
| Lighting | 3 high-power LED white light |
| Splicing Time | 6 s to 12 s |
| Estimated Splice Loss | Available |
| Heating Sleeve Length | 0.87 in to 2.36 in (20 mm to 60 mm) |
| Heating Time | Quick heating time: 13 s, typical heating time: ≥ 20 s |
| Results Storage | 2000 latest records |
| Tension Test | 1.5 N to 2.0 N |
| Display | 90° bi-directional view, 5 pixels high resolution display with touch screen |
| Fiber View & Magnification | X, Y, XY, X or Y: 500X Magnification |
| Power Supply | AC Input 100 V to 240 V, DC Input 12 V to 15 V |
| No. of Splice or Heating with Battery | 5200 mAh Battery Capacity, Typical 280 times (Splice + Heat) |
| Operating Methods | Button or Touch Screen |
| Automatic Calibration | Automatic ARC calibration by air pressure and temperature |
| Electrode Life | 3000 arcs |
| Terminal | Mini USB 2.0 |
| Operating Condition | Operating Altitude 0 ft to 3.10 mi (0 m to 5000 m) above sea level, 0 % to 95 % relative humidity, – 50 ֯F to 122 ֯F (-10 ℃ to 50 ℃), max wind 49.21 ft per sec (15 m per s) |
| Storage Condition | Relative humidity 0 % to 95 %, -104 ֯F to 176 ֯F (-40 ℃ to 80 °C), battery storage: – 68 ֯F to 86 ֯F (-20 ℃ to 30 °C) long term |
| Dimension | 5.5 in x 6.49 in x 6.29 in (140 mm x 165 mm x 160 mm) |
| Weight | 5.07 lbs (2.3 kg) (with battery) |
