Overview

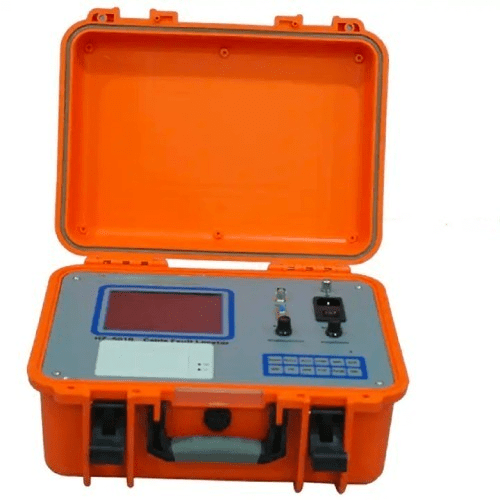

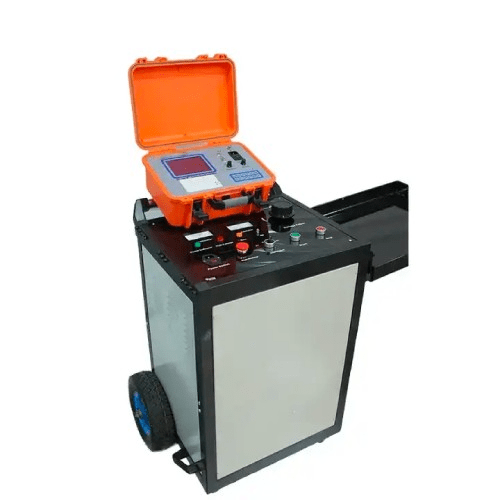

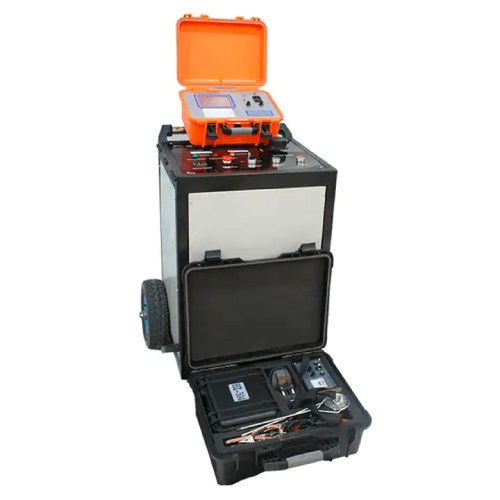

Emissions And Stack cable route tracer is applicable to testing all types of faults of power cables with 35 kV and lower voltage, test kV cables or wires with above double core (including coaxial), test open circuit and low resistance faults, calibrating length of cables or wires and transmission speed of electric wave in the cables.
Features
- Strong anti-interference SCM control
- Powered by Nickel Hydrogen battery for AC or DC use
- Includes a built-in micro printer
- Quickly switch between “pulse 1” and “pulse 2” in “sample” mode
- Has left or right displacement for precise waveform analysis
- Connects to a computer for data transfer
- Constantly samples and displays test waveforms
- Stores ten on-site test waveforms for power outages
Technical specification
| Customized Support | OEM |
| Signal Frequency | 300 HZ,15 kHZ continuous, continue to square wave |
| Instrument Power | To 220 V ± 10 % 50 Hz |
| Output Power | ≥100 w |
| Volume | 3.34 in x 7.87 in x 10.23 in (85 mm x 200 mm x 260 mm) |
| Certificate | CE ISO |
| Keyword | cable fault locator |
| Monitor – Visual Angle | >160° |
| Testing Method | flashover sampling, low-impulse method |
| DC Power | 2.6 V or 10.4 Ah |
| Power Supply | AC 220 V 50 Hz |
| Operating Temperature | -13 °F to 149 °F (- 25 ℃ to + 65 ℃) |
| Display | 5 in (12.7 cm) LCD |
| Weight | 2.20 lb (1 Kg) |
