Overview

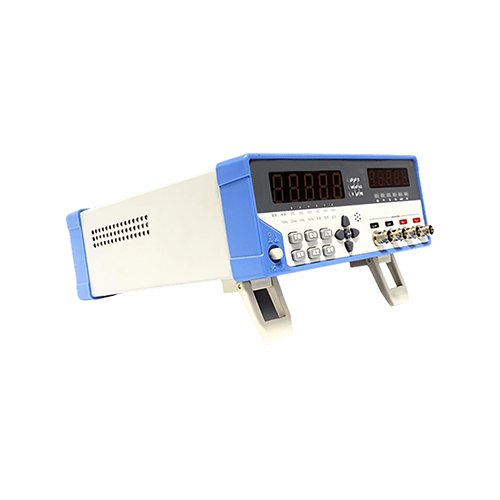

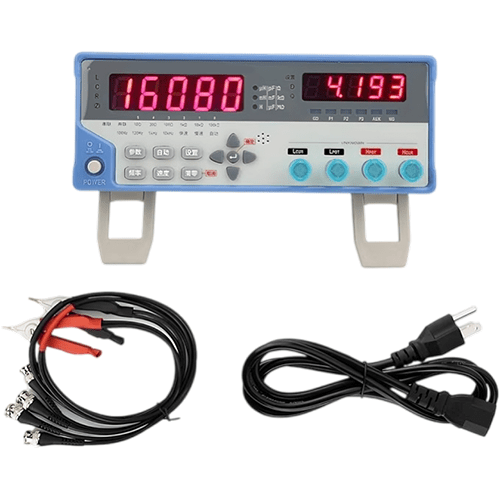

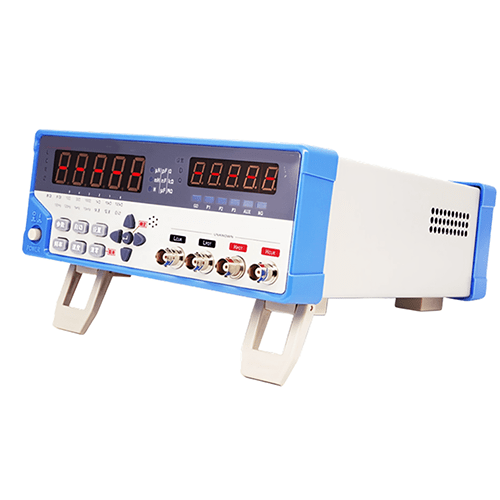

Emissions And Stack capacitance measuring benchtop lcr meter is created as the smallest bench-type digital meter. Four grades of test frequency 100 Hz, 120 Hz, 1 kHz, 10 kHz, 6 parameters (L, C, R, Z, D, Q) can be tested and the built-in comparator can easily deal with the sorting operation of components which made it high cost-performance.
Technical Specifications
| Frequency | 100 Hz, 120 Hz, 1 kHz, 10 kHz |
| Number of display digits | Principal parameter 5-digit, Secondary parameter 5 digit |
| Measured parameter | Principal parameter L or C or R or |Z| D or Q |
| Display range | L 0.01 mH to 9999 H, C 0.01 pF to 9999 mF, D 0.0001 to 9.999, Q 0.0001 R to 999.9 R, Z 0.0001 W to 99.99 MW |
| Basic accuracy | 0.25 % |
| Speed | Slow 3 times or second, Fast 10 times or second |
| Max Reading | Principle parameter 99999, sub parameter 99999 |
| Signal Level | 0.1 Vrms, 0.3 Vrms and 1 Vrms |
| Source Resistance | 30 W and 100 W |
| Equivalent Circuit | In series and parallel |
| Result Display | Show & sorting results |
| Adjustment | Short and open sweep frequency correction |
| Comparator | 5-bin sorting |

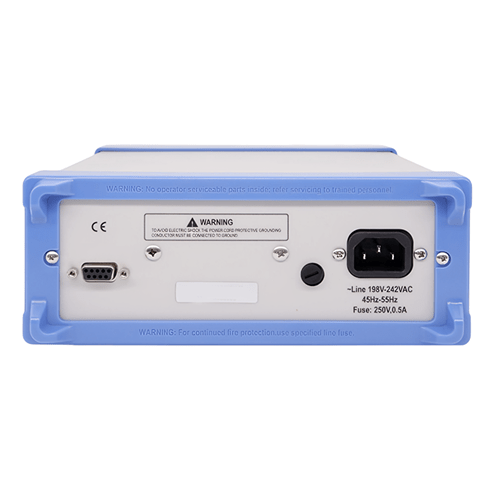

| Power supply | Voltage 198 V AC to 240 V AC, Frequency 50 Hz, Power Maximum 15 VA |
| Dimensions | 8.6 in x 3.3 in x 10.1 in (220 mm x 85 mm x 259 mm) |
| Weight | 4.63 lb (2 kg) |
