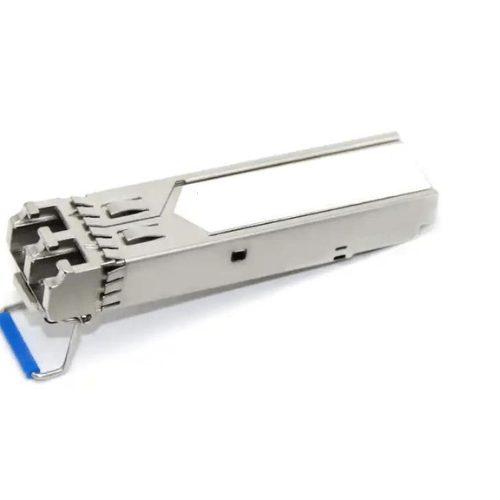

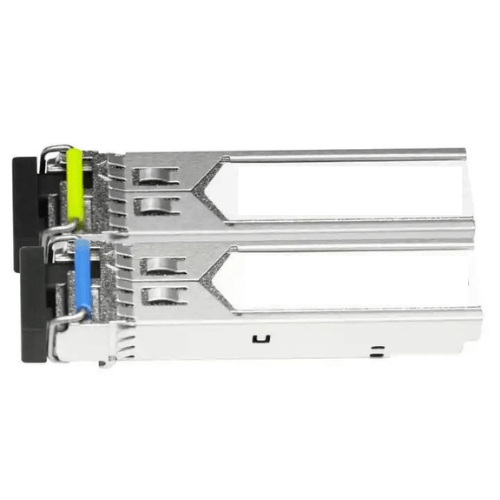

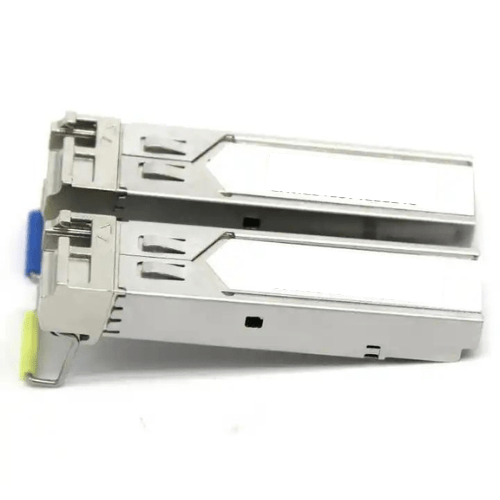

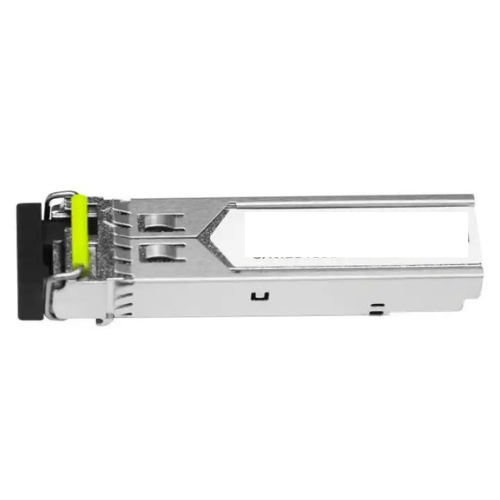

Emissions And Stack CWDM SFP Fiber Optic Transceiver Module

Overview

Emissions And Stack CWDM SFP bidi fiber optic transceiver module consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472.

Features

• Supports Links up to 30 m using Cat 6a or 7 Cable
• SFF-8431 and SFF-8432 MSA Compliant
• IEEE 802.3 az Compliant
• Low Power Consumption (2.5 W max 30 m)
• Fast Retrain EMI Cancellation Algorithm
• Low EMI Emissions
• I2 C 2 Wire Serial Interface for Serial Id and Phy
• Registers
• Auto-negotiates with other 10 G Base-T-NC PHYs
• Automatic Detection and Correction of Wiring and
• Polarity Swaps

Technical Specifications
