Features
- Support devices with V cc from 1.2 V to 5 V.
- The programming speed up further increase 30% compared to SUPERPRO 5000.
- The programmer support files up to 256 G Bytes
- 144 universal pin-drivers, adaptable to various packages, simplifying new device support.
- Program via USB in PC mode; Stand-alone mode with keypad.
- Advanced and powerful functions.
- Production mode start chip operation now the chip is inserted in the socket properly.
Technical Specification
| Memory Type | Flash memory or SD (Satcom Direct) card |
| AC Adapter | 100 V to 240 V |
| Output | 12 V or 1.5 A |
| Power | 15 W |
| Voltage Compatibility | Supports devices with V cc from 1.2 V to 5 V |
| Programming Speed | 30% faster than SUPERPRO 5000 |
| File Support | Supports files up to 256 G Bytes |
| Pin-Drivers | Built with 144 universal pin-drivers; universal adaptors available for various packages up to 144 pins |

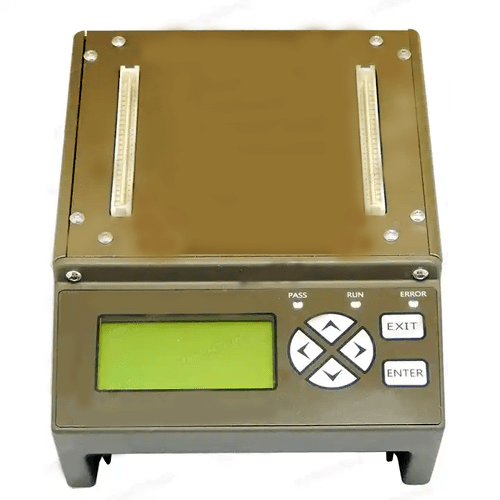

| Operation Modes | PC hosted mode and stand-alone mode; controlled by a PC via USB2.0 under PC hosted mode; stand-alone mode with a 6-KEY keypad and 20 x 4 LCD display SD card for project file storage |
| Dimension | 7.12 in x 5.4 in x 3.5 in |
| Weight | 2.6 lb (1.2 kg) |
