Overview

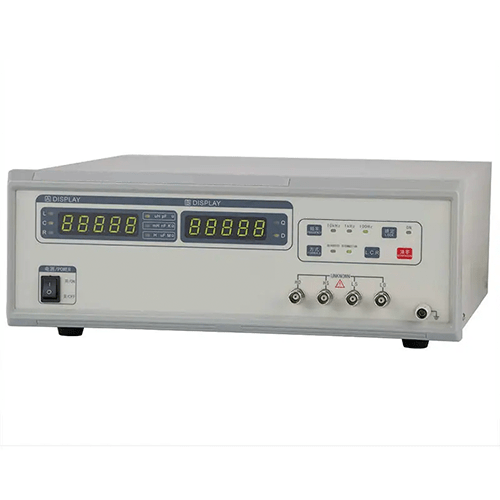

Emissions And Stack digital LCR meters are capacitance, resistance, and inductance detectors that are Universal LCR meters using 5-terminal measurement technology. The primary and secondary parameters are displayed at the same time with a display resolution of 0.01%. With their low prices, direct functions, and simple operations, they can be used for incoming inspections, quality control of the product lines, and electronic maintenance services.
Features
- Simple operation, fast measurement speed and stable reading
- With impact protection, range lock, special clearing, and other functions
- Advanced technology, long-term accurate measurement without special adjustment
- It can test inductance value R, the quality factor Q, and the loss tangent value
Technical specification
| Display Type | Digital Only |
| Accuracy Class | 2% |
| Output Voltage | 220 V |
| Operating Temperature | 32 °F to 104 °F (0 °C to 40 °C,) ≤ 85% RH |
| Frequency | 45 Hz to 65 Hz |
| Measurement Parameters | L-Q, C-D, R |
| Measurement Frequency | 100 Hz, 1 KHz, 10 kHz |
| Measurement Level | 0.3 Vrms |
| Test Accuracy | 0.25% |
| Power Waste | ≤ 20 VA |
| Weight | 12.80 lb (5.81 kg) |
| Working Environment | 32 °F to 104 °F (0 °C to 40 °C) Humidity ≤ 85% RH |
| Dimensions | 18.50 in x 16.92 in x 7.87 in (470 mm x 430 mm x 200 mm) |
