Overview

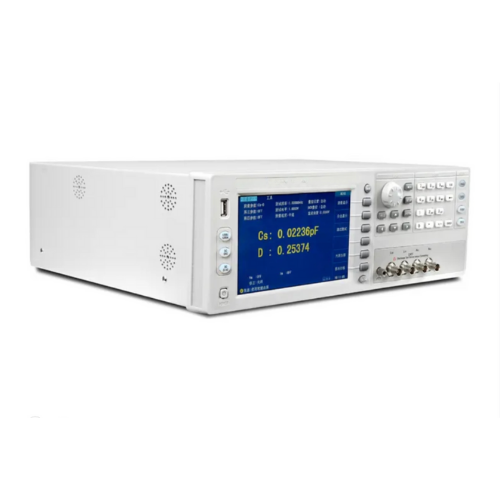

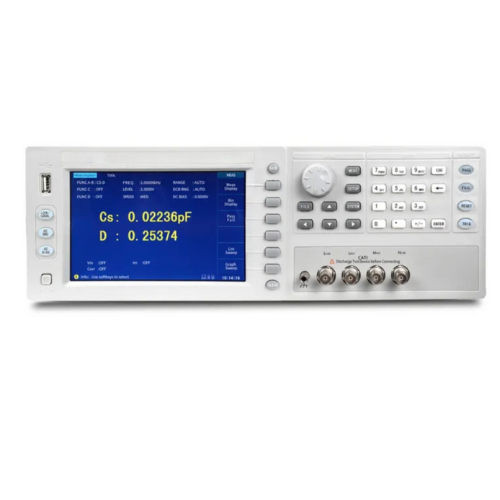

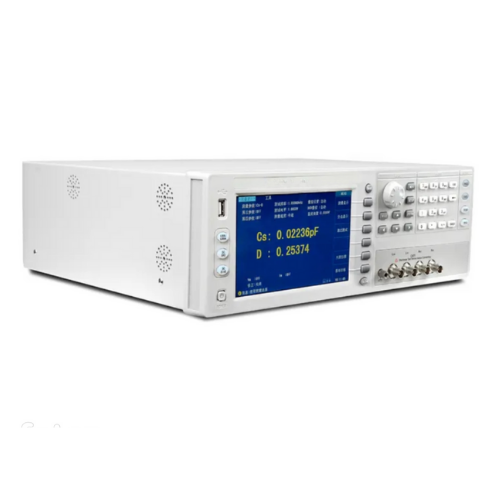

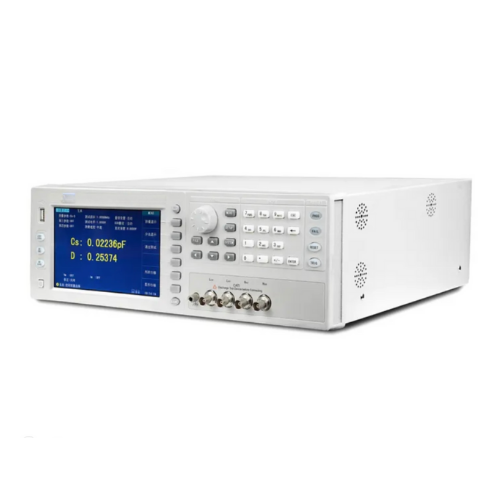

Emissions And Stack Digital LCR Meter with 20Hz-1MHz frequency is a high-performance instrument designed for precise and comprehensive testing of inductance (L), capacitance (C), and resistance (R) in electronic components. This LCR meter offers a wide frequency range from 20Hz to 1MHz, allowing for accurate measurements of various components at different frequencies.
Features
- Frequency range: 20Hz to 1MHz.
- Measures impedance of passive components: resistance, capacitance, and inductance.
- High accuracy and resolution.
- Digital display for easy reading.
- Adjustable test signal amplitude.
- Multiple measurement modes: serial, parallel, selectable frequencies.
- Auto-ranging capability.

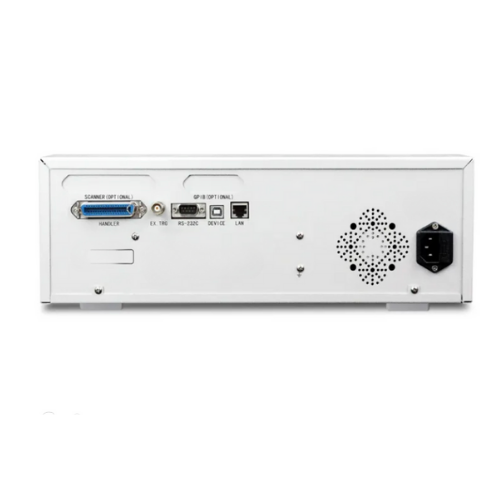

- Interfaces: USB, LAN, GPIB, Bluetooth.
- Calibration options.
- Component sorting and binning.
Technical specification
| Monitor | Large LCD display |
| Display digits | 6 digit reading resolution |
| Basic accuracy | 0.1% |
| Equivalent Circuit | Series Parallel |
| Graph scan | Frequency, level, bias voltage/current |
| Test level | 0.01 Vrms to 2.0Vrms,10mV Stepping |
| Output impedance | 10 Ω, 30 Ω, 50 Ω,100 Ω |
| DCR | 0.001 Ω to 99.999M Ω |
| Sorting function | 10 files sorted (9 files qualified and 1 file failed), and 1 auxiliary file |
