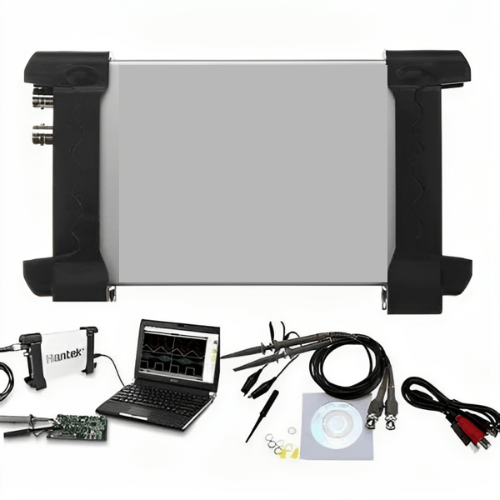

Features
- 128 M depth storage
- 2 or 4-channel oscilloscope + EXT channel
- 60 or 100 or 150 or 200 or 250MHz bandwidths
- 1 GSa or s real-time sampling rate;
- 8-36 V wide range of input power
- more than 20 kinds of automatic detection
- pass or fail detection function
- suitable for engineering applications.
- Excellent industrial design, similar interface with bench oscilloscopes
- easy to use
- Software Support: Window 2000, Windows XP, VISTA, Windows 7 or 8.
- provide VC, VB, LABVIE second development sample source cod
Technical Specification
| Vertical System | Analog Channels 2 |
| Bandwidth | 100 MHz (-3 dB) |
| Rise Time | 3.8 ns |
| Input Impedance | Resistance: 1 MQ; Capacitance: 25 pF |
| Input Sensitivity | 10 mV or div to 5 V or div |
| Input Coupling | AC or DC or GND |
| Vertical Resolution | 8 bits |
| Memory Depth | 256 M or CH |
| Maximum Input | 400 V (DC+AC Peak) |
| Real-Time Sampling Rat | 1 GSa or s |
| Time Base Range | 5 ns or div to 1000 s or div (1 to 2 to 5 sequences) |
| Time Base Precision | +50 ppm |
| Source | CH1, CH2, EXT |
| Mode | Edge, Pulse, Video, Alternative |
| X-Axis Input | CH1 |
| Y-Axis Input | CH2 |
| Phrase Shift | Max.3 degree |
| Voltage Measurement | Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, OvershFrequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle |
| Time Measurement | Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle |
| Cursors Measurement | Horizontal, Vertical, Track, Auto Measure Modes |
| Waveform Signal Proces | +, x, +, FFT, Invert |
| AUTO SET | Yes |
| Voltage Range
|
10 mV to 5 V or div at x 1 probe;100 mV to 50 V or div at x 10 probe;
1 V to 500 V or div at x 100 probe; 10 V to 5000 V or div at x 1000 probe; 100 V to 50000 V or div at x 10000 probe; 200 mV to 100 V or div at 20:1 |
| Current Range | CC65 (20 A), CC65 (60 A), CC650, CC1100 |
| FFT | Rectangular, Hanning, Hamming, Blackman Window |
| Math | Addition, subtraction, multiplication, division |
| Interface | USB 2.0 |
| Power Source | 8 V to 36 V wide range of input voltage, suitable for vehicle power test. |
| Volume | 10 in × 7.4 in × 1.7 in (255 mm x 190 mm x 45 mm) |
| Weight | 2.2 lb (1 kg) |
