Overview

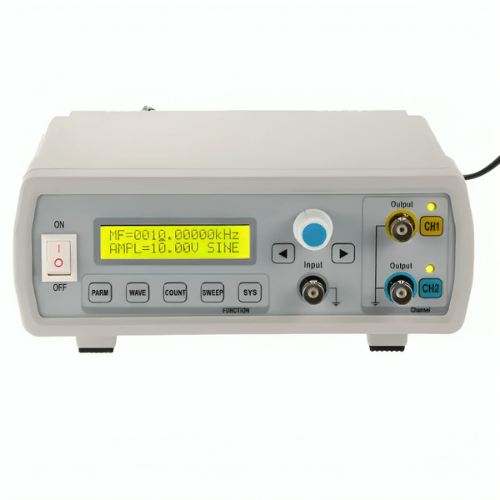

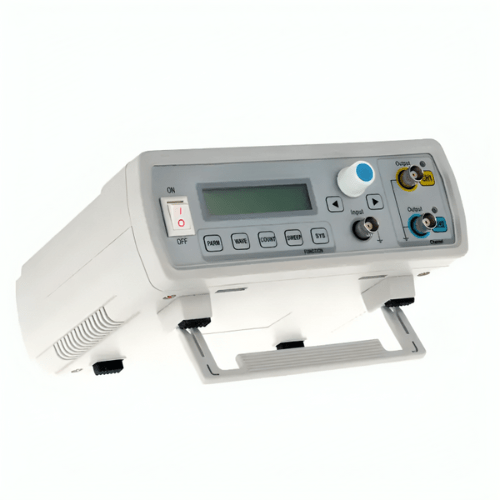

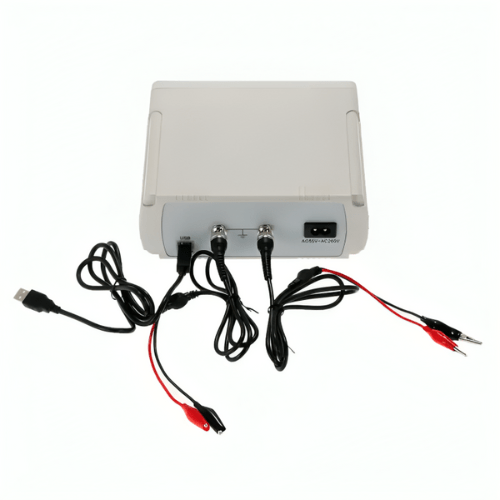

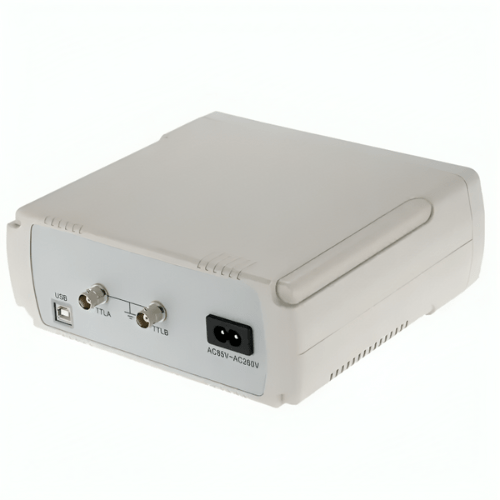

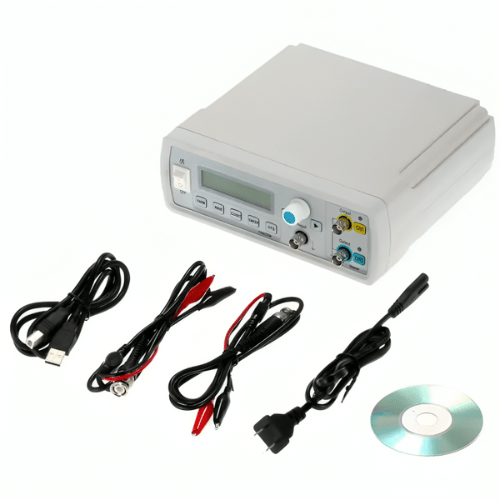

Emissions And Stack dual channel digital signal generator is a multi-functional signal generator with high precision and high performance. It adopts large scale of FPGA integrated circuits, high-speed MCU microprocessor and with high precision oscillator as base in the inner circuit, which make the signals more stable. SMT process can greatly improve the anti-interference and lifetime of the instrument. It has entirely independent dual-channel DDS signal and TTL level output, can generate signals of sine or triangle or square or sawtooth or pulse wave, white noise, etc. This instrument is of great advantage in generating signal, scanning waveform, measuring parameters, etc. It’s an ideal testing or measuring instrument for electronics engineer, electronic laboratory, teaching and researching.
Features
- Using DDS direct digital synthesis technology to generate precise, stable
- Low distortion output signal
- CH1 and CH2 completely symmetrical two channels
- Each channel can be independently set the parameters
- Supports user-defined waveform
- Each arbitrary waveform memory depth 2048 × 12bits
- 250 MSa/s sampling rate
- With pulse trains burst output function, manual trigger
- Internal CH2 trigger
- Signal output amplitude range is 10 mVpp to 20 Vpp
- DC offset adjustment range is –10 V to 10 V, the resolution is 0.1 V
- Digital signal output function, CMOS output range 0 V to 10 V
- Waveform generator up to 12 bitswide
- The output waveform is more delicate, waveform distortion is low
- Can edit and download arbitrary waveform
- Total range frequency resolution is 10 MHz
- Tracking function built-in frequency, amplitude, offset, duty cycle
- Waveform and other parameters follow function, easy to use
- Scanning featuresfrequency linear sweep
- Logarithmic sweep function
- Start and end points of scanning can be set freely
- Storage featurescan store 20 groups parameters set by the user
- Operation key operation, LCD1602 display in English
- directly digital setting parameters or continuous adjustment knob
Technical Specifications
| Frequency Range | Sine Wave Normal Modes (Optional) 0 Hz to 6 MHz or 0 Hz to 12 MHz or 0 Hz to 20 MH, Square Wave 0 Hz to 6 MHz, Triangle Wave 0 Hz to 6 MHz, Another Waveform 0 Hz to 6 MHz |
| The Min. Frequency Resolution | 10 MHz (0.01 Hz) |
| Frequency Accuracy | (+/-)5 × 10 (-6) |
| Frequency Stability | (+/-)2 × 10 (-6) or 3 Hours |
| Phase Adjustment Range | 0° to 359° |
| Phase Resolution | 1° |
| Sine Wave | Harmonic Distortion ≤0.8% (Referent Frequency 1 KHz) |
| Square Wave | Rise or Fall Time ≤20 ns (Referent Frequency 100 KHz, 10Vpp), Overshoot ≤7.5%, Duty Cycle 0.1% to 99.9% |
| Sawtooth Wave | Linearity ≥98% (0.01 Hz to 10 KHz) |
| Pulse Wave | Pulse Width Adjusting Range 10 nS to 1 S, Rise or Fall Time ≤20 ns |
| TTL Output | Level Amplitude >3 Vpp, Fan-out >20 TTL Load, Rise or Fall Time ≤20 ns |
| CMOS Output | Low Level <0.3 V, High Level 1 V to 10 V, Level Rise or Down Time ≤20 ns |
| Output Impedance | 50 ohms (+/-10%) (Typical) |
| Output Amplitude | ≥20 Vpp (No Load) |
| Protection | All signals output can work above 60 s under the condition of load short circuit |
| Offset Adjustment Range | (+/-) 10 V |
| Offset Resolution | 0.1 V |
| Frequency Measuring Range | GATE-TIME=1S 1 Hz to 100 MHz |
| Input Voltage Range | 1 Vpp to 20 Vpp |
| Counting Range | 0 to 4294967295 |
| Periodic Measurement | 20 ns Resolution, the Max. Measurable 20 s |
| Scan Mode | Linear Sweep, Logarithm Sweep |
| Scan Object | Frequency |
| Scan Time | 1 s to 999 s or Step |
| Frequency Setting Range | Start Point and End Point can be set arbitrarily |
| Frequency Scan Range | It is determined by the sweep parameter settings |
| Memory | Quantity 20, Location M0 to M19 (01 for default value) |
| Interface | Interface Mode Using USB to Serial Interface, Communication Speed 9600bps, Protocol Command Line Mode, Protocol Complete Open |
| Power Supply | Voltage Range AC 85 V to AC 260 V |
| Display | LCD 1602 Display |
| Environment | Temperature 32°F to 104°F (0 °C to 40 °C), Humidity <80% |
| Size (L × W × H) | (19 cm × 18 cm× 7cm) 7.5 in × 7 in × 2.75 in |
| Weight | 1.27207 lb (577 g) |
