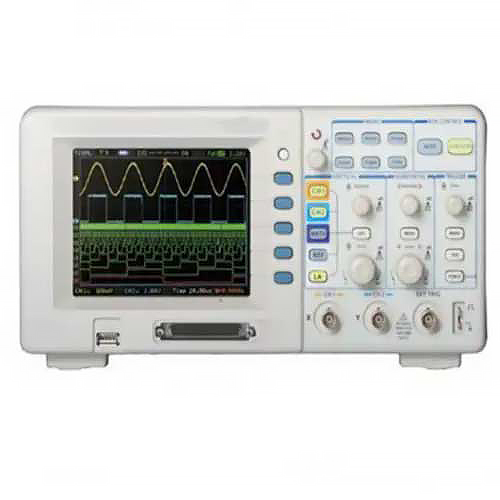

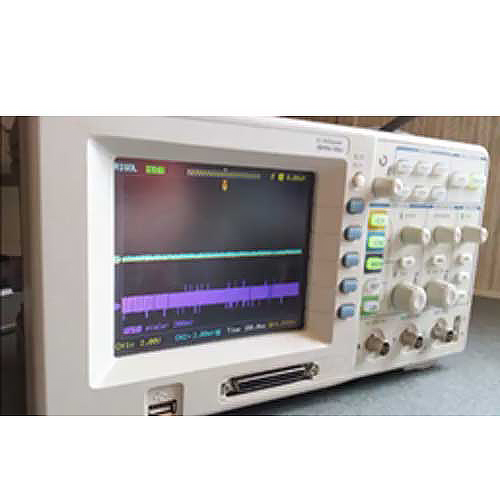

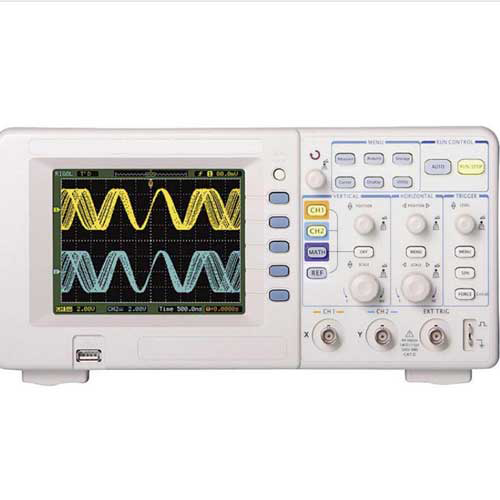

Features
- 16 channels logic analyzer
- 2 Analog channels plus an external trigger
- 1 million point deep memory
- 1 GSa or sec max sample rate
- 7 in (14.47 cm) TFT QVGA 12.59 in x 9.44 in (31.97 cm x 23.97 cm)
- 64 K colour LCD backlit display
- Trigger modes: edge, pulse width, slope, video, pattern
Technical specification
| Bandwidth | 100 MHz | |
| Memory Depth | Single Channel: 1 M; Double Channels: 500 K | |
| Channels | 2 | |
| Real-Time Sample Rate | Single Channel: 1 GSa/s; Double Channels: 500 MSa/s | |
| Equivalent Sample Rate | 25 GSa/s | |
| Rise Time | 1.2 ns | |
| Input Impedance | 1 MΩ or 15 pF, 50 Ω | |
| Sec/Div Range | 2 ns/div to 50 s/div | |
| Lissajous Figures | Bandwidth | 50 MHz |
| Phase Difference | ±37.4 °F (3 °C) | |
| Trigger Modes | Edge, Pulse, Video, Slope, Delay | |
| Trigger Source | CH 1, CH 2, Ext, Ext or 5, AC Line | |
| Vertical Sensitivity | 2 mV or div to 10 V or div | |
| Vertical Resolution | 8 bits | |
| Input Coupling | DC, AC, GND | |
| Input Max Voltage | 300 V (DC + AC Vpp) | |
| Scroll Range | 500 ms or div to 50 s or div | |
| Cursor Measure | Manual, Track, Auto | |
| Storage | Built in 10 groups waveforms, 10 groups set up; USB: bitmap memory, CSV storage, wave set up | |
| Interface | USB Device, USB Host, RS 232, P or F Out (Isolated) | |
| Display | 64 K TFT Colour LCD (320 x 234) | |
| Display Language | Multilingual User Interface | |
| Power Source Voltage | 100 V to 240 V AC or 50 W Max | |
| Size | 11.88 in × 6.06 in × 5.23 in (30.1 cm × 15.39 cm × 13.28 cm) | |
| Weight | 4.85 lb (2.20 kg) | |
