Overview

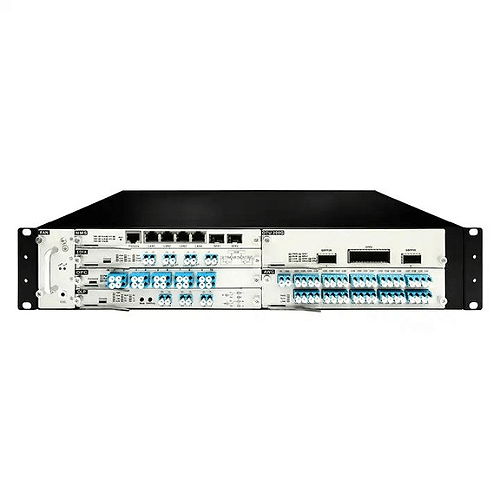

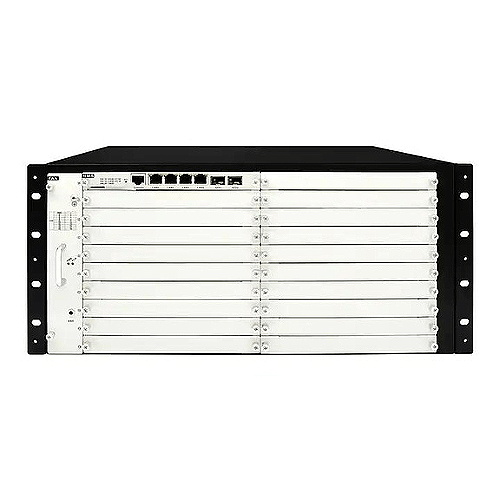

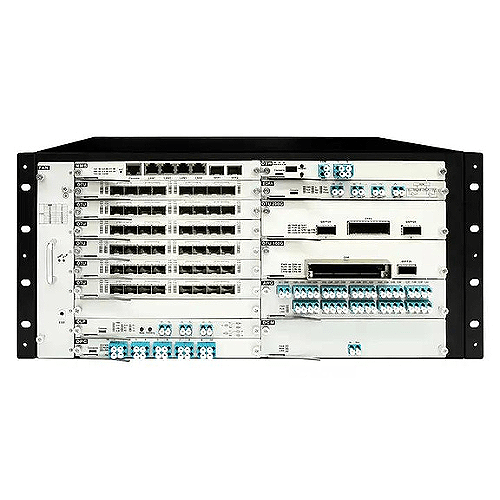

Emissions And Stack dwdm optical transport system is a compact, high capacity, low cost OTN optical transmission system.It adopts CWDM or DWDM common platform design, supports multi service transparent transmission, and has flexible networking and access capabilities. Applicable to the national backbone network, provincial backbone network, metro backbone network and other core networks.Meet the needs of large-capacity nodes above 1.6 T. It is the industry‘s most cost effective transmission application platform.Build a large capacity WDM transmission expansion solution for IDC and ISP operators.
Features
- Super T-bit Capacity
- Intelligent Protection
- High Reliability
- Flexible and Transparent Access to Multiple Services
- Large Capacity
- Intelligent Transmission
- Easy to Operate
- Simple Maintenance
- Intelligent Management Platform
Technical Specifications
| Transmission Capacity | 96 Gbps x 10 Gbps |
| Network Management Unit | EMS network management |
| OTU | Support 10 Gbps and 10 Gbps |
| DCM | G 652 and G 655 Dispersion compensation fiber module |
| EDFA | EDFA erbium doped fiber amplifier EDFA erbium doped fiber amplifier |
| OLP | OLP 1 to 1 optical protection |
| Relative Humidity | 5% to 95% Non-condensing |
| Power Supply Mode | AC 220 V and DC 48 V optional |
| Power Consumption | 1 U <120 W |
| Services Card | 7.5 in x 10 in x 0.79 in (191 mm x 253 mm x 20 mm) |
