Overview

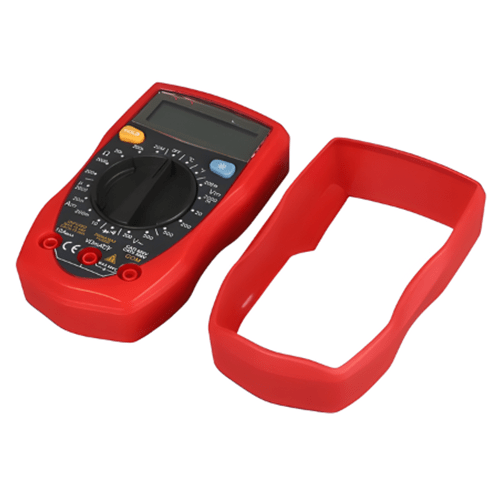

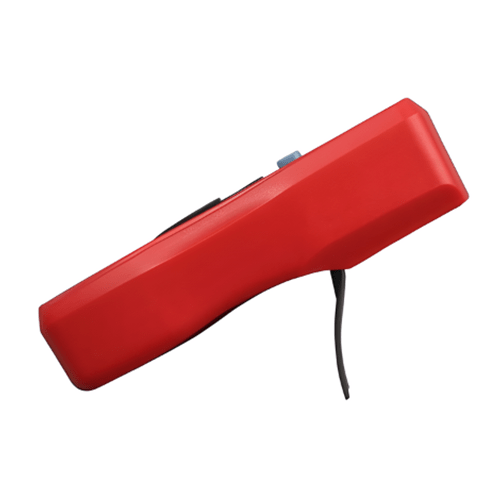

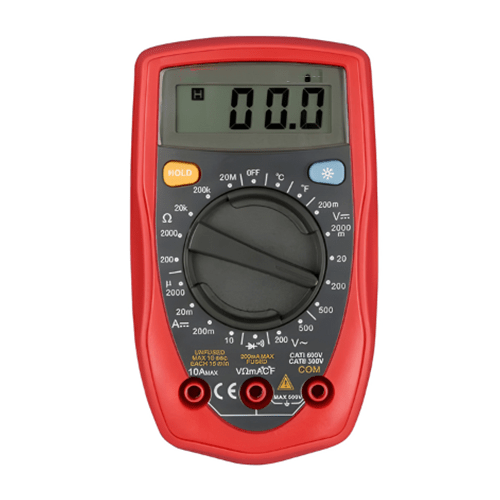

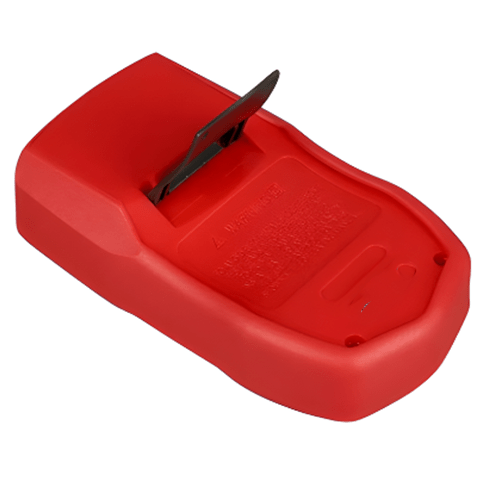

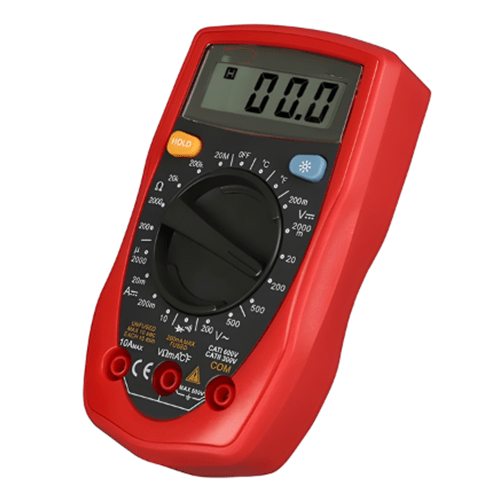

Emissions And Stack electrical handheld LCR ammeter meter is a fully functional, stable performance, novel structure, safe and reliable, cost-effective small handheld digit digital multimeter manual range. Can be used in homes, schools, metallurgy, communications, manufacturing, petroleum, defence, power, chemical and other fields, is a circuit, electrical equipment maintenance, the ideal tool for maintenance.
Technical Specifications
| DC Voltage | 200 mV or 2000 mV or 20 V or 200 V or 500 V Best Accuracy ± (0.5 % + 2) |
| AC Voltage | 200 V or 500 V Best Accuracy ± (1.2 % + 10) |
| DC Current | 200 mA or 200 mA or 10 A ± (1 % + 2) |
| Resistance | 200 W or 2000 W or 20 kW or 200 kW or 20 MW ± (0.8 % + 2) |
| Input Impedance For DC Voltage Measurement |
Around 10 MW |
| Max. Display | 1999 |
| Power | 9 V Battery (6F22) |
| Temperature | -40 °F to 1832 °F (-40 °C to 1000 °C) |
| LCD Size | 0.18 in x 0.62 in (48 mm x 16 mm) |
| Size | 5.11 in x 2.89 in x 1.37 in (130 mm x 73.5 mm x 35 mm) |
| Weight | 0.34 lb (156 g) |
