Overview

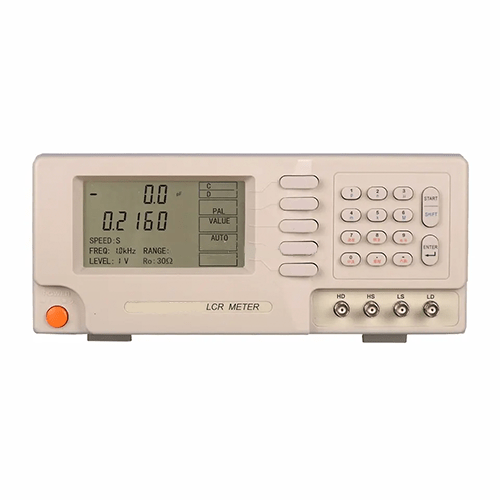

Emissions And Stack electronics components measuring LCR digital bridges are designed for low-frequency electronic components. They feature a large graphic LCD display and adopt the SMT process, making them both beautiful and user-friendly. These devices can directly measure up to six different parameter combinations of electronic components, which enables them to meet the requirements for quality assurance in product manufacturing, incoming quality control (IQC), and automatic production lines. Furthermore, the standard RS-232 interface allows users to access statistics and analyze test data remotely. The optional HANDLER interface can be connected to an automated sorting system for electronic components.
Features
- Easy operation and powerful function
- Adopts the SMT process
- Large-graphic LCD display
- 8 typical test frequencies, 100 Hz to 100 kHz
- 4 typical test frequencies, 100 Hz to 10 kHz
- 0.1 V, 0.3 V, 1.0 V, 3 typical test level
- 2 different signal source output impedances: 30 Ω and 100 Ω
- RS-232C, GPIB (option) interface
Technical specification
| Test Parameters | C/D, L/Q, R/Q, Z/θ, C/R, L/R |
| Frequency | 100 Hz to 100 kHz |
| Basic Accuracy | 0.10% |
| Power supply | 220 V 50 Hz |
| Equivalent Circuit | Series and Parallel |
| Ranging Mode | Auto, Hold |
| Trigger Mode | Internal, Manual, External |
| Measuring Speed (meas./sec) | Fast: 12, Medium: 5, Slow: 2 |
| Calibration Function | Open or short frequency point, Full frequency correction |
| Display | Large-graphic LCD display, 5-digit resolution |
| Signal Frequency | 100 Hz, 120 Hz, 1 kHz, 10 kHz |
| Test Level | 0.1 Vrms, 0.3 Vrms, 1.0 Vrms |
| Output Impedance | 30 Ω and 100 Ω selectable |
| |Z|, R, X | 0.001 Ω to 99.999 MΩ |
| C | 0.01 pF to 99999 μF |
| L | 0.01 μH to 99999 H |
| D | 0.0001 to 9.9999 |
| Q | 0.0001 to 9999.9 |
| Δ% | -99.99% to 99.99% |
| Comparator | 5-bin sorting; BIN1 to BIN3, NG, AUX |

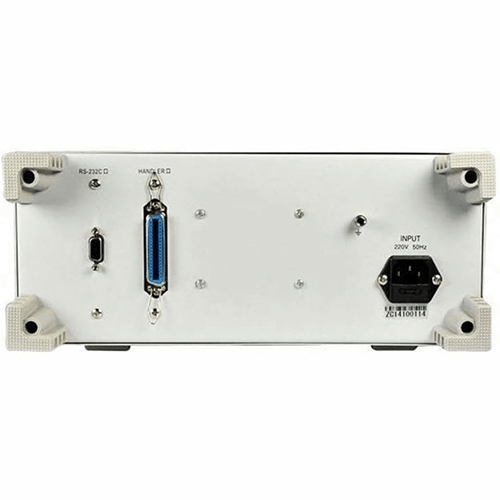

| Interface | RS232C, HANDLER (option) |
| Dimensions | 12.59 in x 5.51 in x 14.17 in (320 mm x 140 mm x 360 mm) |
| Weight | 5.51 lb (approx. 2.5 kg) |
