Overview

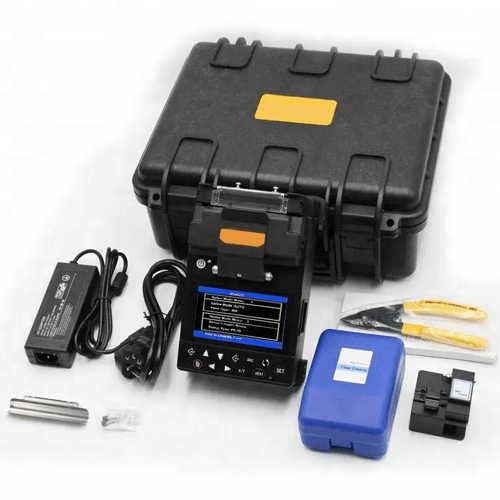

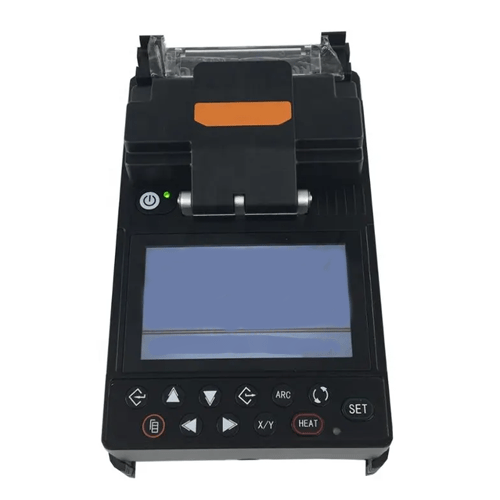

Emissions And Stack FTTH Mini Type Fiber Fusion Splicing Machine splice is handheld fusion splicer, with smart appearance, reliable quality, it is a special design for the installation, and operation and maintenance of optical fiber specially design a precision, durable, convenient optical fiber construction instrument. Widely used in the construction, inspection, and maintenance of fiber cable.
Technical Specifications
| Use | FTTH FTTB FTTX |
| Return Loss | >60 dB |
| Splicing Loss | 0.02 dB (SM), 0.01 dB (MM), 0.04 dB (DS), 0.04 dB (NZDS) |
| Splicing Time | ≤9 s |
| Heat Time | ≤30 s AUTO HEAT |
| Cleaved Length | 0.3 in x 0.62 in (8 mm to 16 mm) |
| Fiber Image or Magnification | 300 or 150 |
| Tension Test | Standard 2 N (option) |
| Splicing Type | SM, MM, DS, NZDS |
| Splicing Mode | Manual, Half Auto, Auto |
| Sample | Available |
