Technical Specifications
| Operating Voltage | 28 V |
| Conversion Efficiency | ≥42% |
| Controllable Output Power | 10 W to 100 W |
| ALC Power Adjustment Range | ≥30 |
| Gain | 50±1.0 |
| In Band Fluctuation | ≤2.5 |
| Spurious mission In Working Band | ≤-15d Bm or 1 MHz |
| Out Of Work Band | 9 KHz to 1 GHz
1 G to 12.75 GHz |
| Maximum Allowable Input Power | ≥+10 dBm |
| Input VSWR | ≤1.35 |
| Output VSWR | ≤1.30
≤1.35 |
| Working Ambient Temperature (℃) | 14 °F to 149 °F (-10 ℃ to +65 ℃) |
| Gain Stability | ±1.5 at -40 °F to 149 °F (-40 ℃ to +65 ℃) |
| Power Stability | ±1 at -40 °F to 149 °F (-40 ℃ to +65 ℃) |
| RF Output Connector | N F connector |

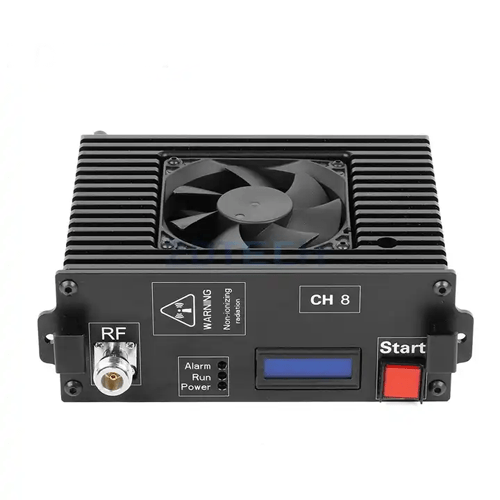

| LCD Liquid Crystal Display | Display frequency, power, switch status |
| With 3 LED Lights | POWER: Power indication; RUN: Running indication; ALARM: Alarm indication; |
| Built-in Cooling Fan | Modules can be run separately |
| Physical Dimension | 6.1 in x 4.92 in x 2.3 in (155 mm x 125 mm x 60 mm) |
| Weight | 3.5 lb (1.6 Kg) |
