Overview

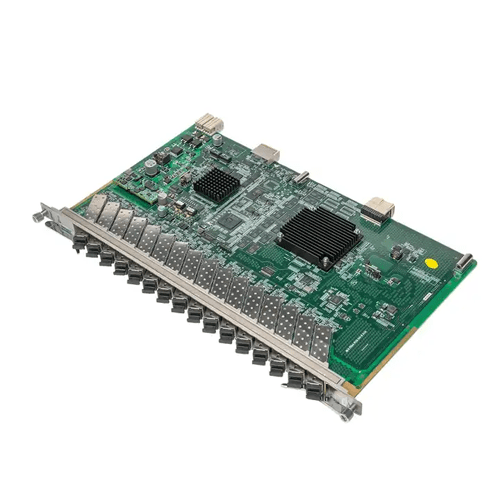

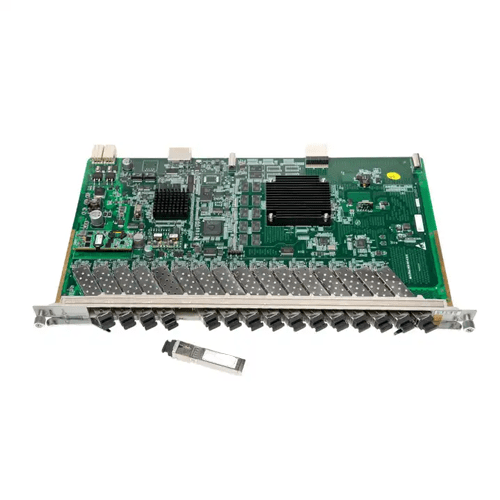

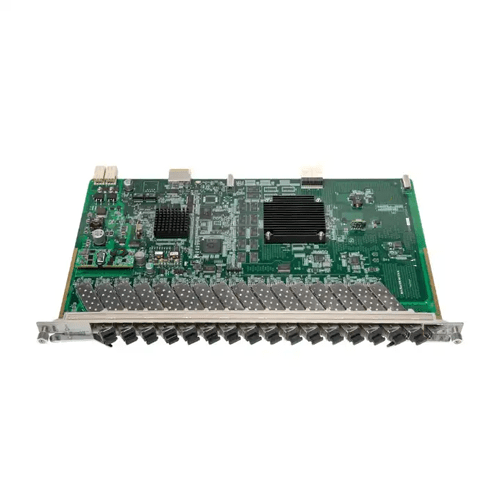

Emissions And Stack GPON card transceiver is the control module to complete the single board software loading, operation control, management and other functions. Exchange module to achieve the convergence of 16 GPON port signals. Interface module to realize the mutual conversion between GPON optical signal and ethernet message.
Features
- Support ONU power saving management defined in G.987.3
- 1024 T-CONTs per PON port, 4096 GEM ports per PON port
- Support H-QOS
- 1024 queues and 356 schedulers per PON port
- Support color-sensitive RED and WRED discard algorithm
- Low power consumption
Technical Specification
| Number of SPFs | 16 SFPs |
| Data rate | 2.5 Gbps |
| Power consumption | GTGH 5 W (static), 65 W (maximum), 55 W (typical) |
| Power consumption | GTGO 5 W (static), 35 W (maximum), 30 W (typical) |
| Voltage | DC 48 V to AC 220 V |
| Humidity | 5% RH to 95% RH |
| Dimension | 15.57 in x 0.89 in x 8.86 in (395.5 mm x 22.5 mm x 225 mm) |
| Weight | GTGH: 2.20 lb (1 kg)
GTGO: 2.04 lb (925 g) |
