Overview

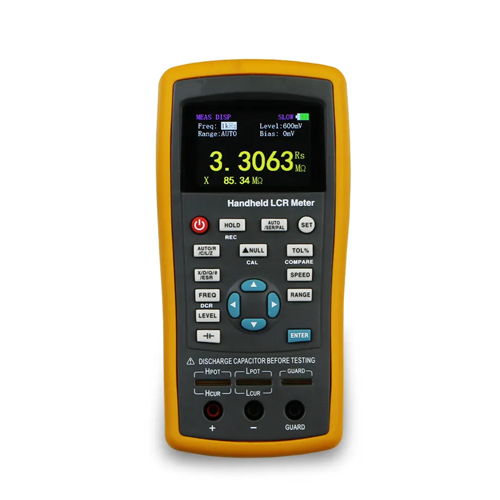

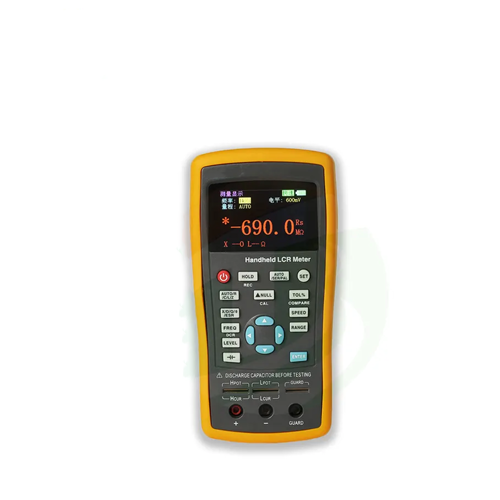

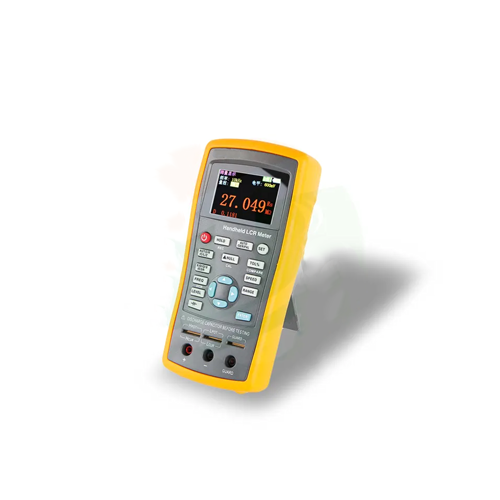

Emissions And Stack Handheld Digital LCR Meter Capacitance Inductance Resistance Tester features 2.8” TFT display screen, easy key operation and USB communication. Its high capacity lithium battery ensures long run. It can measure comprehensive parameters, and supports for screening and deviation measurement, with continuously adjustable output frequency. The basic accuracy reaches 0.2 % or 0.3 %.
Features
- Measurable frequency up to 100k Hz, continuously adjustable at a step of 1 Hz
- Measurement of DC resistance and electrolytic capacitor supported
- Internal bias voltage output (0 mV to 500 mV)
- Automatic identification of measured component
- Support for screening and deviation measurement
- 8” TFT display screen, a 4 ½ digit display
- USB communication interface
- Basic measuring accuracy 0.2 %, adjustable measuring speed
- Manual and automatic range
- Open circuit and short circuit calibration
- Multiple testing ports
Technical Specifications
| Testing Frequency | 100 Hz, 120 Hz, 1 KHz, 10 KHz, 40 kHz, 100 KHz |
| Basic Accuracy | 0.003 |
| Display | 2.8” TFT LCD screen |
| Electrolytic Capacitor Mode | Yes |
| DCR Mode | No |
| Measurement Range | C: 0 pF to 20 mFR: 0.0001 Ω to 20 MΩ |
| Testing Level | 300 mVrms to 600 mVrms |
