Overview

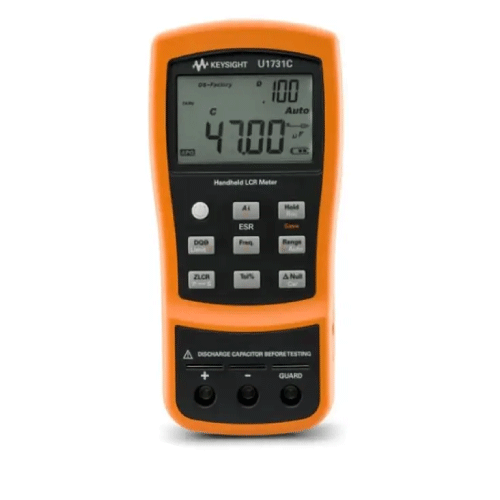

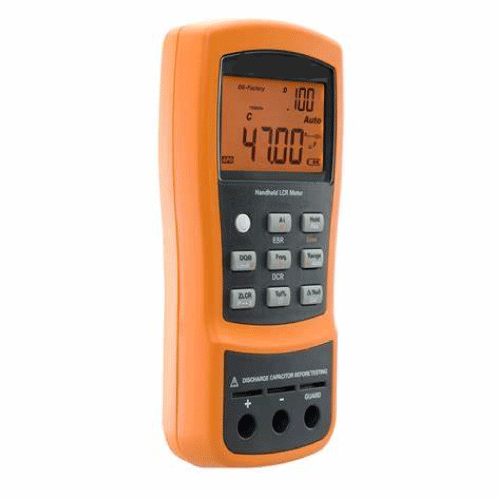

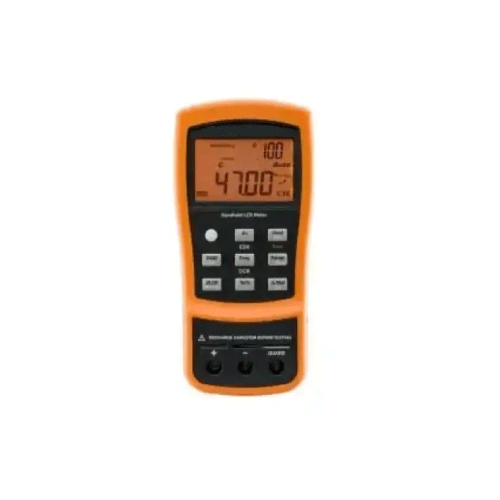

Emissions And Stack Handheld LCR Meter allows you to measure frequencies as high as 100 kHz a capability typically found only in benchtop meters. Get measurements done faster using the one-touch automatic identification function button which displays component type and more detailed component analyses such as Z, ESR, and DCR. Ideal for testing on the go, these LCR meters operate on a battery that lasts up to 16 hours. It is built for convenience, can perform quick and basic LCR measurements at an affordable price.
Features
- IR-to-USB cable, soft carry case
- Test frequency: 100 Hz, 120 Hz, 1 kHz, 10 kHz, 100 kHz
- Resolution: 20,000 counts
- Resistance range or accuracy: 2 Ω to 200 MΩ; 0.2 % + 3 counts
- Capacitance range or accuracy: 20 pF to 20 mF; 0.2 % + 3 counts
- Inductance range or accuracy: 20 µH to 2000 H; 0.2 % + 3 counts
- Perform quick, basic LCR measurements affordably
- Detailed component analysis
- IR-to-USB connectivity for data logging to PC
Technical Specifications
| Type | Handheld |
| Max Test Frequency | 100 kHz |
| Max Capacitance | 20 mF |
| Max Resistance | 200 MΩ |
| Max Resistance | 2000 H (2000000 m H) |
| Impedance Accuracy Range | 0.2 % |
| Auto Ranging | Yes |
| Data Hold | Yes |
| Counts | 20000 |
| Measurements Parameters | Capacitance (C), DC Resistance (Rdc), Dissipation Factor (D), Impedance (Z), Inductance (L). |
