Overview

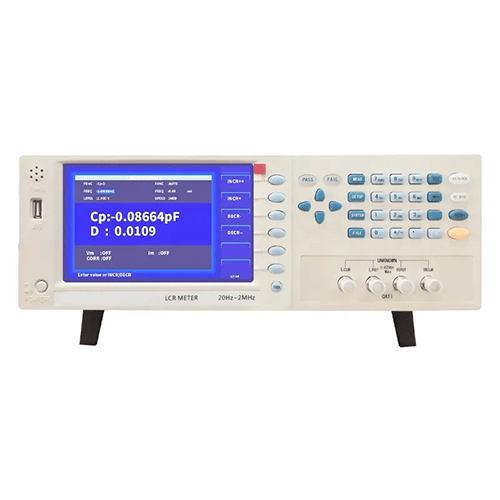

Emissions And Stack high frequency LCR meters ESR testers impedance are precision LCR meters for the inspection of all kinds of electronic components. Using 7-inch (177.8 mm) LCD TFT displays. They are high-speed, broadband, 6-bit test resolution impedance measuring instruments, with multi-frequency points and 0.05% accuracy to meet the requirements of various component parameter detection scenarios. They are high-quality, cost-effective testing equipment.
Technical Specification
| Parameters | |Z|, |Y|, C, L, X, B, R, G, D, Q, θ, DCR |
| Display Mode | Direct, Δ, Δ%, V/I |
| Basic Accuracy | 0.05% ± 5 dgt, DCR:0.1% |
| Frequency | 10Hz to 10MHz |
| Display Range | Z, X, R:0.01 mΩ to 99.9999 MΩ DCR:0.001 mΩ to 99.9999 MΩ Y, G, B: 0.00001 µS to 99.9999 S C:0.00001 pF to 9.9999 F L:0.00001 µH to 9999.99 H D:0.00001 to 9.9999 Q:0.00001 to 9999.9 q (rad): -3.14159 to 3.14159 q (deg): -179.999° to 179.999° |
| Source Resistance | 50 Ω |
| Range | Auto, Hold, Manual selection |
| Comparator | 11-bin sorting (9-bin GD, 1-bin NG, 1-bin AUX) |
| Signal Level | 10 mV to 5 V, accuracy:10%; Constant level:10 mV to 1 V, accuracy:5% |
| DC Bias Source | -5 V to +5 V; -100 mA to +100 mA, accuracy: 1% |
| Trigger Mode | INT, MAN, EXT, BUS |
| Speed | 200 t/s, 12 t/s, 3 t/s, 1 to 255 times average is available |
| List Test | 10 group frequency and level scanning measurement |
| Adjustment | Open or short or load |
| Files | U disk copy screen, real-time data storage, which can support the FAT16 format, FAT32 file system |

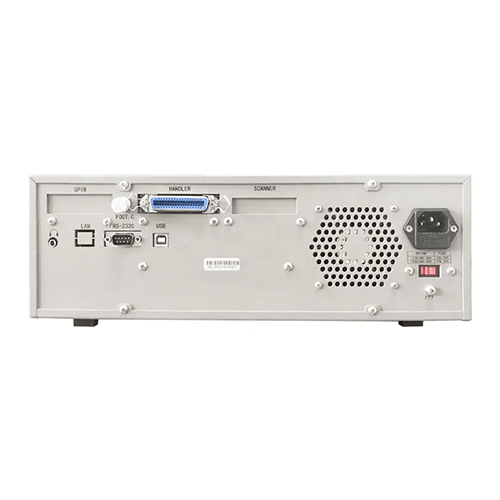

| Interface | RS232C, USB HOST, USB DEVICE, HANDLER, Headset interface, Foot switch interface |
| Others | The frequency response curve analysis; Can save the file to the instrument or U disk |
| Power Supply | Voltage: 110 V or 220 V; Frequency: 50 Hz to 60 Hz |
| Accessories | Kelvin Test clip; Test fixture; Short-circuit slice; RS232 Communication cable; AC Power Cord |
| Optional | SMD patch test fixture; SMD patch test clip |
| Size | 14.7 in x 5.3 in x 13.77 in (375 mm x 135 mm x 350 mm), |
| Weight | 15.43 lb (7kg) |
