Overview

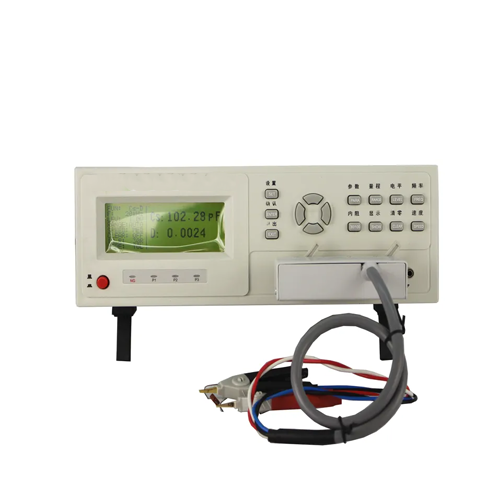

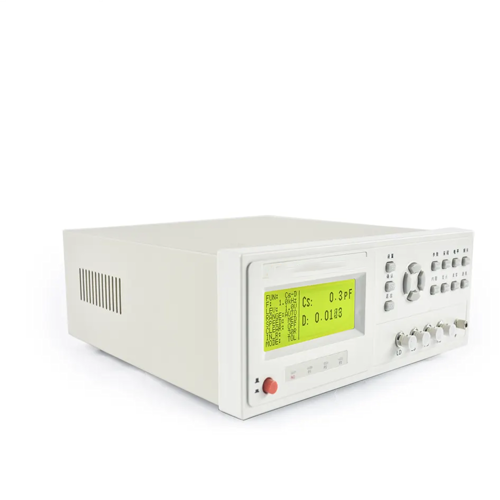

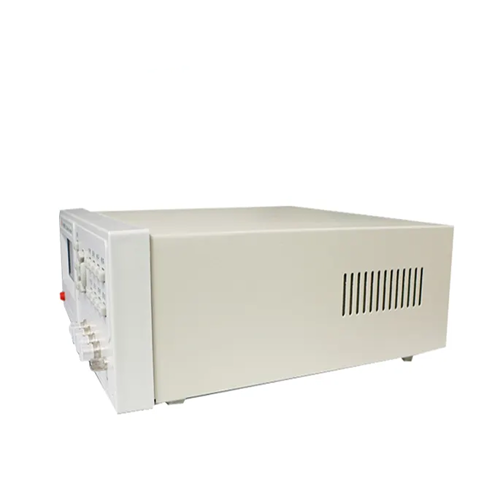

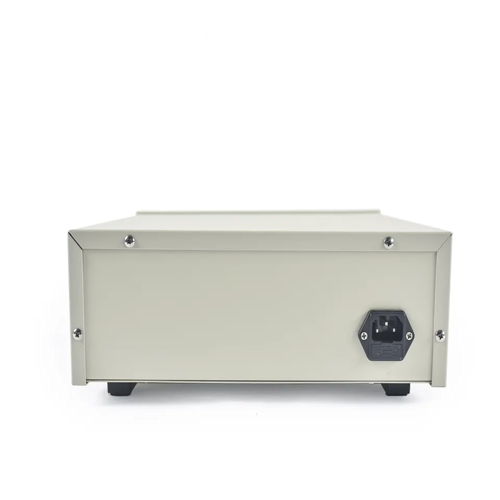

Emissions And Stack High Frequency LCR Meter is a powerful testing capabilities and superior measure performance makes the product into the international advanced level, with cheap prices it will give customers the enjoyment of a bargain. The product can provide stable five test resolution, 50 Hz or 100 KHZ or 100 KHZ frequency range of 1 V, 0.1 V, 0.1 V programmable signal level, up to 12 times/sec measurement speed, range, 30 Ω constant level 5 or 100 Ω source internal resistance and flexible mode of operation of human nature. It can meet the production line, quality assurance, incoming goods inspection and laboratory high accuracy measurement requirements.
Features
- 192 x 64 bitmap graphics LCD display
- Humanized operation interface, simple operation
- 50 Hz to 100 kHz, (A total of 20 typical test frequency)
- high level of the measurement accuracy and stability
- Five readout resolution and the fastest speed can be up to 12 times per second
- Accurate load calibration function
- 30 Ω or 100 Ω Optional signal source output impedance
- built-in comparator, 4 bins and bin counters
- The test level monitoring function
- Bottom lock function
- Handler interface
- RS-232C,GPIB interface(option)
Technical Specification
| Test parameter | |Z|, C, L, R, D, Q |
| Display | 192 × 64 Dot Matrix LCD Display, 6 Readout Resolution |
| Test Frequency | 50 or 60 or 80 or 100 or 120 or 200 or 400 or 500 or 800 or 1 k or 2 k or 4 k or 5 k or 80 k or 10 k or 20 k or 25 k or 40 k or 50 k or 100 k A Total Of 20 Typical Frequency |
| Test Level | 0.1 V, 0.3 V, 1 V |
| Basic Accuracy | 0.1 % |
| Display Range | |Z|, R, X: 0.0001 Ω to 99.999 mω C: 0.001 Pf to 99999 µF L: 0.001 µh to 99.999 Kh Q: 0.0001 to 9.9999 D: 0.0001 to 9.9999 Δ %: 99.999 % to 99.999 % |
| Test Speed | Slow: 1.5 meas/Sec, Mid: 5 meas/Sec, Fast: 12 meas/Sec |
| Equivalent Circuit | Series And Parallel |
| Ranging Mode | Auto, Keep |
| Trigger Mode | Internal, Manual, External, Bus |
| Correction Function | Open, Short and Load Corrections |
| Measuring Terminal | 5 Terminals |
| Display Mode | Direct, Δ ABS, Δ %, V/I (V/I Monitor), Bin Number And Bin Counter |
| List Sweep | List Sweep for Up To 4 Frequencies, Signal Levels |
| Comparator Function | |
| 4 Bins (Bin1 To Bin3 And Out Of Bin), And Additional Aux Bin | |
| Interface | Rs-232c, Handler, GPIB (Optional) |
| Operation Temperature and Humidity | 32 °F to 104 °F (0 ℃ to 40 ℃), ≤ 90 % RH |
| Power Requirements | 198 V to 242 V AC, 47.5 Hz to 52.5 Hz |
| Power Consumption | ≤ 50 VA |
| Dimensions (Width x Height x Depth) | 13.77 in x 5.31 in x 15.78 in (350 mm × 135 mm × 400 mm) |
| Weight | 9.92 lb (4.5 Kg) |
