Overview

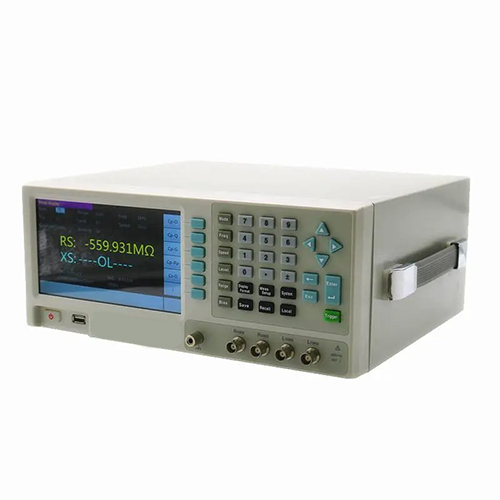

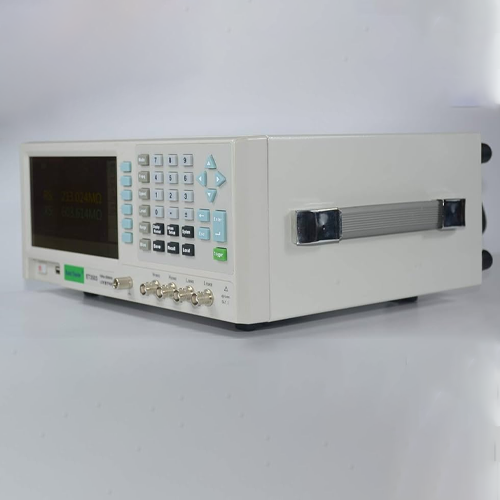

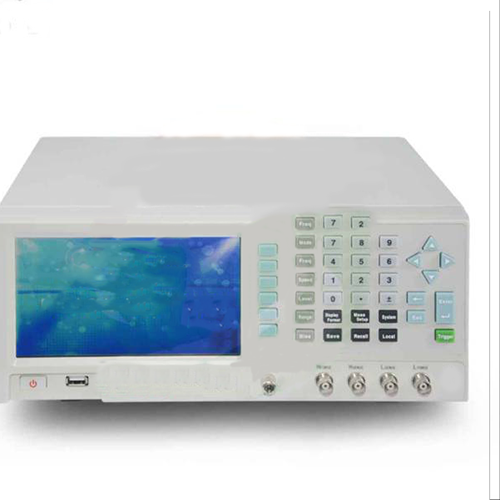

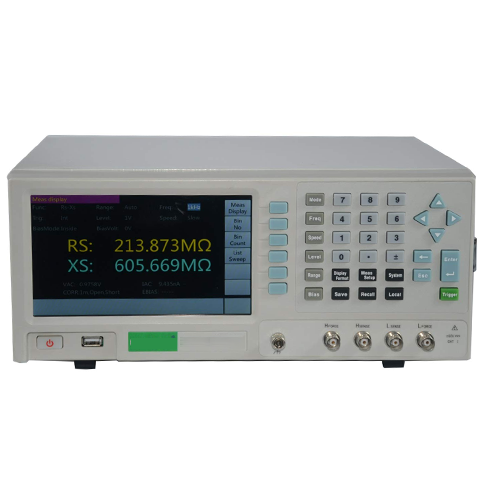

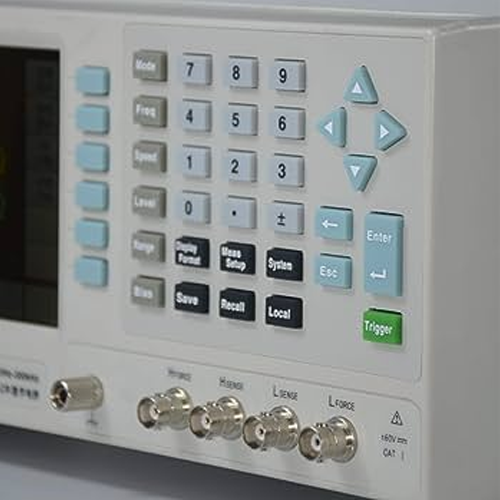

Emissions And Stack High-precision Component Parameter Analyzers are high-precision component parameter analyzers making use of automatic balancing bridge principle, featuring 10 Hz to 1 MHz testing bandwidth, continuously adjustable frequency, 0.05 % of basic measuring accuracy, automatic level control, list scanning and position counting, which can provide accurate and complete measurement and analysis for most components and materials, so it is wildly used in product R & D, component incoming inspection and online product sorting.
Features
- Electronics: Capacitors, PCBs, antennas, and more
- Aerospace or Defense: Stealth tech, radar-absorbent materials, and housing
- Industrial: Ceramics, composites, auto parts, coatings
- Polymers: Plastic fibers, insulating materials
- Consumer Goods: Hydrogel, diapers, contact lenses, LCDs
- Miscellaneous: Tires, paints, adhesives
- Food & Agriculture: Food preservation, microwave development, water content measurement
- Forestry & Mining: Wood or paper analysis
- Pharmacy & Medicine: Drug development, implants, tissue characterization, fermentation
Technical Specification
| Frequency resolution, accuracy | Resolution: 1 MHz, Accuracy: 0.01 % |
| Measuring display speed | Fast: 50 times or s (20m s), Medium: 10 times or s (100 ms), Slow: 1.25 times or s (800 ms) |
| Custom measuring speed | Between 0.5 times or s to 200 times or s, can be set |
| LCR parameter range | Cp, Cs: 0.001000 pF to 99.9999 F Lp, Ls: 0.001000 nH to 99.9999 kH Rp, Rs, |Z|, X s: 0.001000 mΩ to 999.999 MΩ G, B, |Y|: 0.001000 μS to 999.999 kS θr: ± 0.000001 rad to 3.14159 rad θd: ± 0.000001 deg to 179.9999 deg D: ± 0.000001 to 9.99999 Q: ± 0.001 to 99999.9 |
| Test signal voltage range | 0 Vrms to 2 Vrms |
| Voltage resolution, accuracy | Resolution: 1 mV, accuracy: 5 % + 5 mV |
| Test signal current range | 100 μA rms to 20 mA rms |
| Current resolution, accuracy | Resolution: 10 μA, accuracy: 5 % + 50 μA |
| DC bias voltage source | Internal: -2 V to +2 V voltage bias, -20 mA to +20 mA current bias External: -60 V to +60 V voltage bias |
| Internal resistance of signal source | 30 Ohm or 100 Ohm, selectable |
| Basic accuracy | 0.05 % |
| Display resolution | 61 digits or 2 digits |
| Comparator | 9 groups of qualified setting, one group of unqualified setting, one group of auxiliary setting |
| Triggered mode | Internal, External, manual, bus |
| Calibration function | Self-calibration, open circuit, short circuit, load, 100 groups of customized frequency point |
| List scanning | 10-point list scanning testing |
| Storage device | Internal or USB storage device |
| Interface | GPIB, LAN, RS232, USB Host, USB Device, Handler |
| Size | 12.99 in x 11.22 in x 5.35 in (330 mm x 285 mm x 136 mm) |
| weight | 7.92 lb (3.6 kg) |
