Technical specification
| Wavelength | 1310 nm or 1550 nm |
| Wavelength Accuracy | ±20 |
| Dynamic | (37 dB or 35 dB) or (40 Db or 38 dB) |
| Event DZ | 3.3 ft (<1 m) or 2.6 ft (<0.8 m) |
| Attenuation DZ | 19.7 ft (<6 m) or 13.1 ft (<4 m) |
| Minimum Distance | 328.1 ft (100 m) |
| Maximum Distance | 248.5 mi (400 km) |
| Distance Resolution | 1.6 ft (0.05 m) |
| Sampling Quantity | 128000 |
| Distance Accuracy | {±3.5 ft or (0.75 m) + 0.0002% x Distance + Sampling Resolution)} |
| Loss Threshold | 0.01 dB |
| Loss Resolution | 0.001 dB |
| Linearity | 0.03 dB |
| Pulse Width | 3 ns to 20000 ns |
| Measurement Time | User-defined |
| Memory Capacity | >10 k |

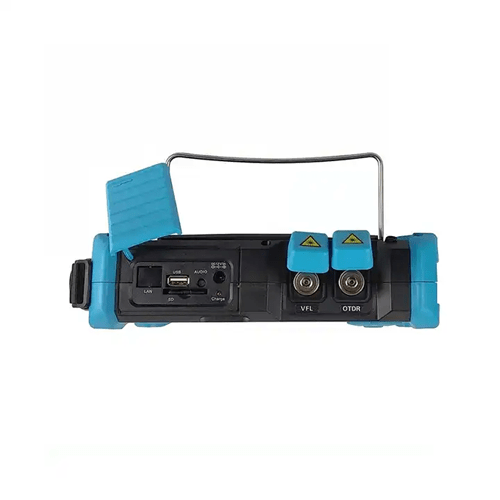

| Connector Type | 0.098 in (2.5 mm) UNIVERSAL FC or PC, SC or PC |
| Power Supply | AC or DC Adapter, Input AC 90 V to 240 V±10%, Output 12 V |
