Overview

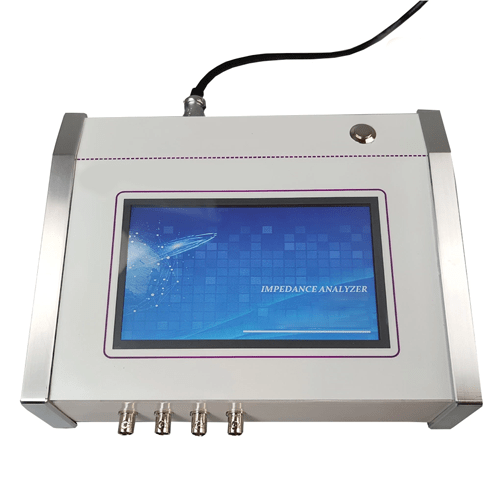

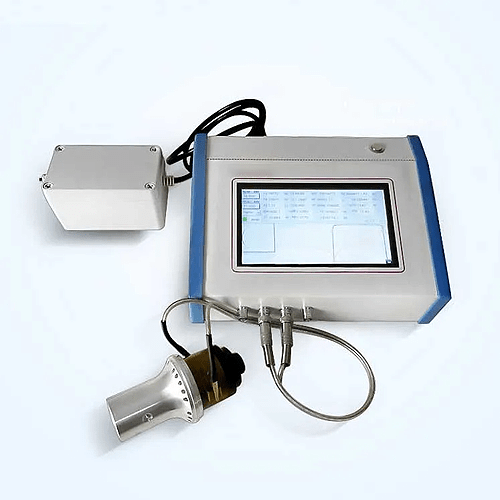

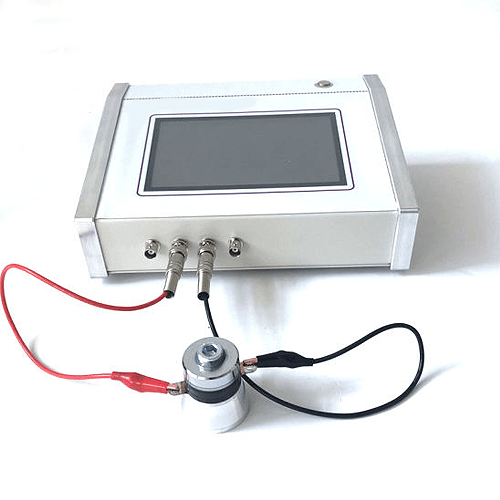

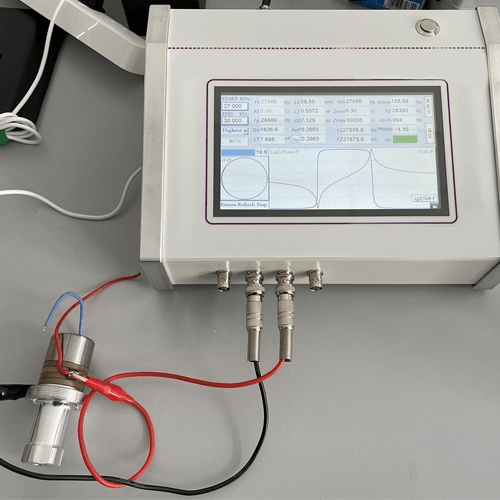

Emissions And Stack impedance analyser characteristic of analyser measurement and evaluation of piezoelectric ceramics, piezoelectric transducer, ultrasonic cleaning machine, ultrasonic welding machine, ultrasonic grinder, ultrasonic machining equipment and other devices, like transducer, booster, horn, the device parameters and performance. Transducer impedance tester is characterized by easy to use, the combination of parameters.
Features
- 1 Hz precision impedance measurement enhances measurement accuracy
- Admittance circle and logarithmic curve simplify defect identification
- Results distinguish vibration and half-power points for clear analysis
- Infinite data storage, printing, and traceability via computer
- Automatic filtering, statistical options; customizable parameter filters for precision
- Highly efficient, user-friendly operation for streamlined testing processes
- Simple, affordable, graphical indicators guide production in evaluating device parameters
Technical Specification
| Size of LCD Screen | 8 in (20.3 cm) |
| Frequency Range | 1 KHz to 1 MHz |
| Basic Accuracy | <0.5% |
| Scan Speed | 5 sec/one pass (equivalent to 600 scan dots) |
| Frequency Accuracy | ±10 ppm |
| Phase Accuracy | 0.15 degree |
| Temperature Range | 42 °F to 72 °F (10 °C to 40 °C) |
| Impedance Range | 0.1 Ω to 1 MΩ |
| Frequency Step | 0.1 Hz to Any |
| Measure Items | – Resonance Frequency: Fs – Half Power Frequency: F1 and F2 – Maximum real admittance at Fs: Gmax – Dynamic Resistance: R1 – Anti resonance frequency: Fp – Mechanical quality factor: Qm – Free capacitance: CT – Dynamic inductance: L1 – Dynamic capacitance: C1 – Static capacitance: Co – Electromechanical coupling coefficient: Keff and K p – Maximum real impedance at F p: Z max |

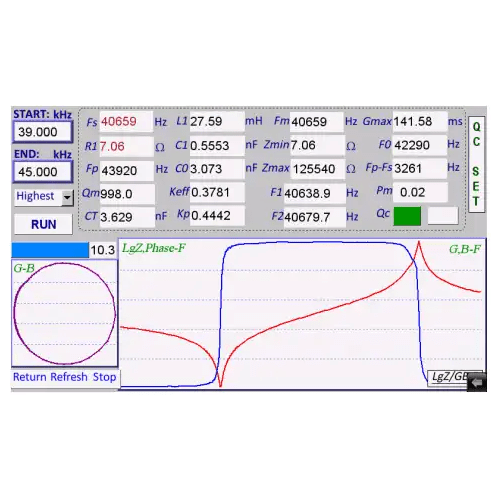

| Measure Diagram | – G, B-F – G-B (admittance circle coordinate) – R, X-F – R-X (impedance circle coordinate) – Phase-F – Z (Logarithm), phase-F |
| Amplification | Piezoelectric ceramic, ultrasonic transducer, power ultrasonic, ultrasonic weld, ultrasonic clean, ultrasonic sensor |
| Dimensions | 9.44 in x 7.48 in x 3.93 in (240 mm x 190 mm x 100 mm) |
