Technical specifications
| Electrical Level | 6 fixed points: 0.1 V or 0.3 V or 0.6 V or 1 V or 1.5 V or 2 V |
| Test Parameters | L, C, R, Z, X, D, Q, θ, ESR |
| DCR Range | 0.0001 Ω to 99.999 MΩ |
| LCR Parameters Range | R: 0.0001 Ω to 99.999 MΩ |
| C: 0.01 pF to 99.999 mF | |
| L: 0.01 uH to 9999 H | |
| D: 0.0001 to 9.9999 | |
| Q: 0.0001 to 9999.9 | |
| Θ (DEG) to 179.9 to 179.99 degree | |
| Display | 3.5 in (8.89 cm) TFT,5 digits |
| Measurement Time (≥ 10 kHz) | Fast: 8 meas/s, Medium: 4 meas/s, Slow: 2 meas/s |
| Equivalent Circuit | Serial or Parallel |
| Test signal frequency | 100 Hz to 100 KHz 16 points |
| Correction | Open or Short |
| Comparator | 3 Levels for PASS |
| 1 Level for FAIL | |
| 1 Level for AUX | |
| Interface | USB, RS232, RS485 (optional), GPIB (optional) |
| Power Supply | AC 110 V to 220 V, 45 Hz to 65 Hz |

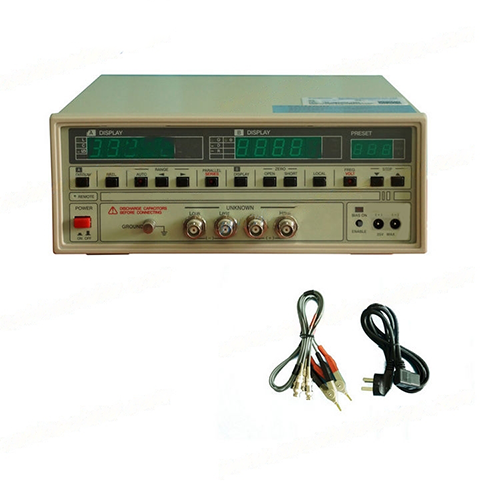

| Standard Accessories | Manual or Power Cable or Test Lead |
| Dimensions | 10.4 in x 12 in x 4.13 in (265 mm x 305 mm x 105 mm) |
| Weight | 14.33 lb (6.5 lb) |
