Overview

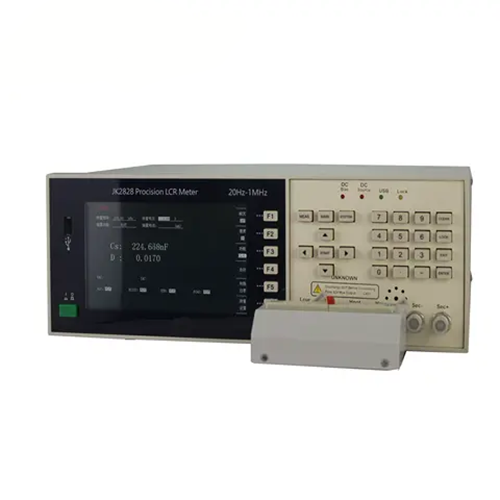

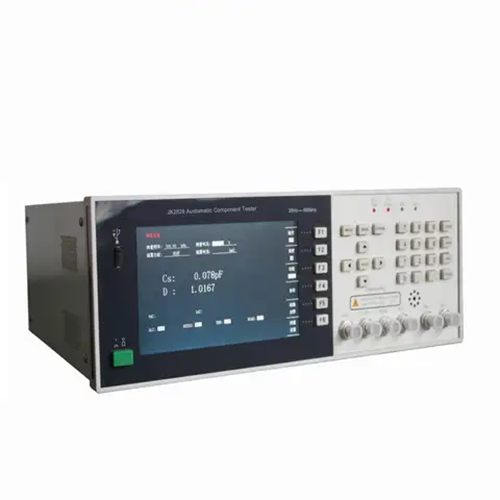

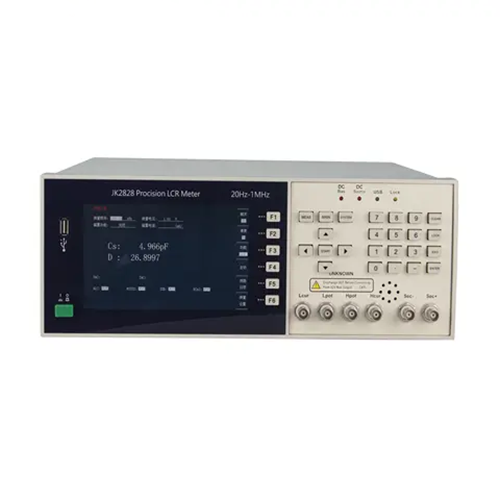

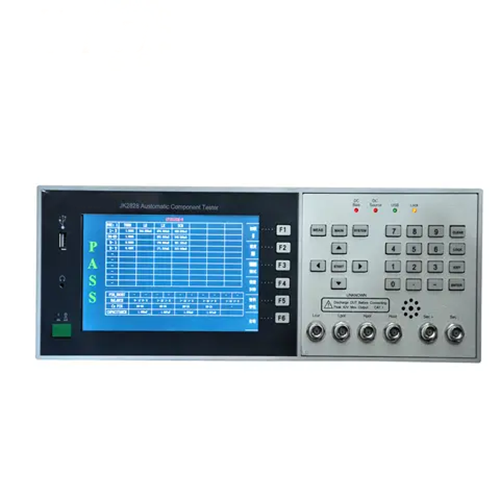

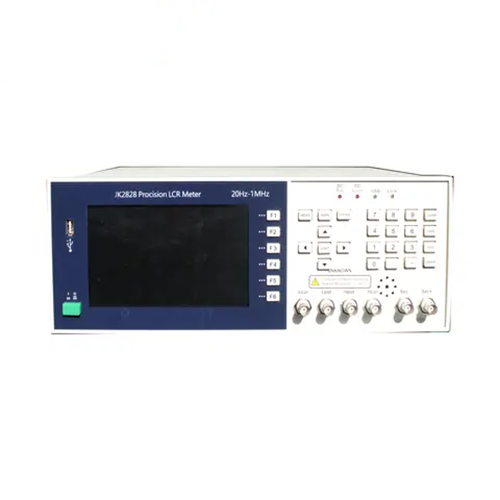

Emissions And Stack LCR Meter is a kind of multifunctional element parameter for the various electronic component’s inspection tester. With 7 inches 800 x 480 color TFT LCD display, High speed and stability and more than 20 Hz to 1 MHz frequency point and the accuracy of 0.05 %, it is used for incoming inspection of components, quality of product line and goods inspection and laboratory measurement requirements etc.
Features
- Brand new 32-bit processor core, data completely foreign first-class equipment
- 7-inch true color TFT screen
- 20 Hz to 1 MHz test frequency
- 05 % of basic measurement accuracy, fast test (75 times/SEC)
- Graphics scanning analysis function, support/level/frequency /offset scan, insight into a feature to be tested
- Multi-parameter testing capabilities
- The test voltage or current automatic level control of ALC function
- 30 Ω, 50 Ω, 100 Ω, 10/CC four different signal source output impedance
- The built-in comparator, 10 bins and bin counters
Technical Specifications
| Test Frequency | 20 Hz to 1 MHz,0.01 Hz resolution |
| Test Parameter | | Z|, |Y|, C, L, X, B, R, G, D, Q, θ,DCR |
| Basic Test Accuracy | 0.05 % |
| Equivalent Circuit | Series, parallel |
| Mathematical Function | Absolute value deviation, % |
| Range Mode | Auto, Hold, manual |
| Trigger Mode | Internal, Manual, External, Bus |
| Measurement Speed (≥ 1 kHz) | Fast: 75 time/second, Med: 12 time/second, Slow: 3 time/second |
| Averaging Rate | 1 to 255 |
| Delay Time | 0 to 60 s, n 1 ms step by step |
| Correction Function | Open, short, load |
| List Sweep | 10 points |
| Display Mode | Direct/I (V/I monitor) |
| Display | 800 x 480 RGB 7 inch 16: 9 TFT LCD display |
| Output Impedance | 30 Ω, 50 Ω,100 Ω, 10 /CC selectable |
| Comparator Function | 10 bins: 9 pass bins, 1 fail bin, AUX bin |
| Multiparameter | Four parameters can be chosen optionally to measure and display at the same time |
| Curve Scanning Function | A variety of test conditions, the piece to be measured for graph scanning separation |
| Memory | Internal storage,USB extended storage |

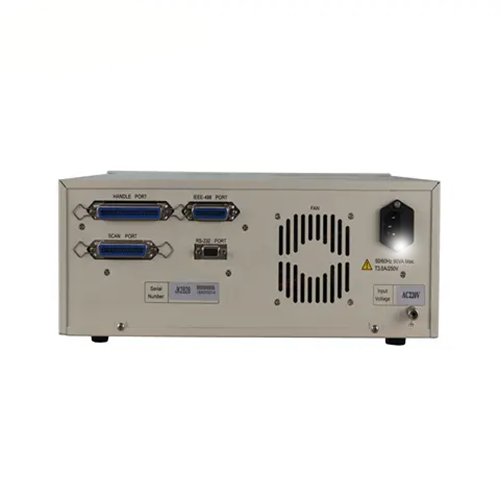

| Interface | HANDLER, USB HOST, USB DEVICE, headphone jack ,Solid interface; GPIB, LAN |
| Dimensions | 14.76 in x 5.31 in x 13.77 in (375 mm x 135 mm x 350 mm) |
| Weight | 15.43 lb (7 kg) |
