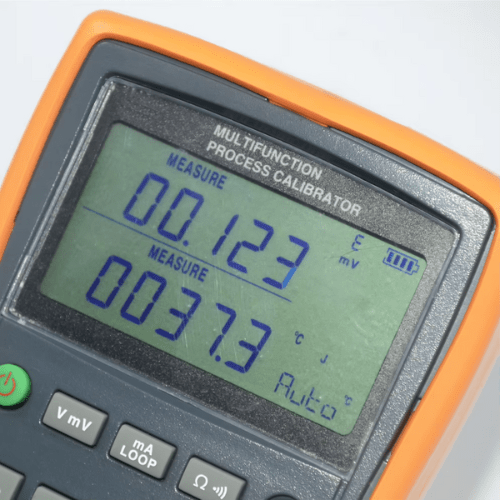

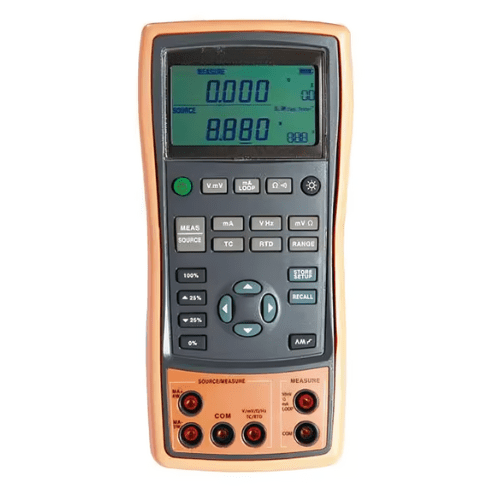

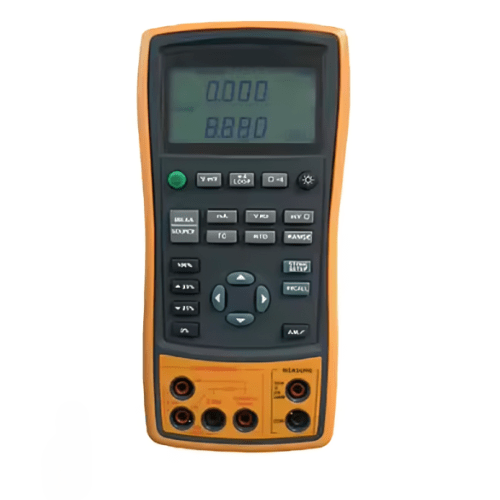

Overview
This Emissions And Stack LCR multimeter calibrator integrates the functions of various calibration equipment and can measure and simulate almost all process signals, including voltage, current, millivolts, resistance, thermocouple, thermal resistance, frequency, pressure, and other signals. It is an essential tool for testing and calibrating industrial automation systems and instruments, and has been widely used in high-precision signal measurement and equipment calibration in industrial and mining enterprises, aerospace, military, scientific research, metrology institutes, and other occasions.
Features
- High accuracy up to 0.01 / % FS High linearity 24 bit A/D and D/A
- Low temperature drift typical temperature coefficient of 5 ppm/℃
- Automatic stepping and automatic oblique wave output function
- Zero range self calibration Silicone button, ultra long lifespan, good hand feel
- Battery capacity indication
- Automatic shutdown when the battery voltage is too low
- Automatic charging prompt

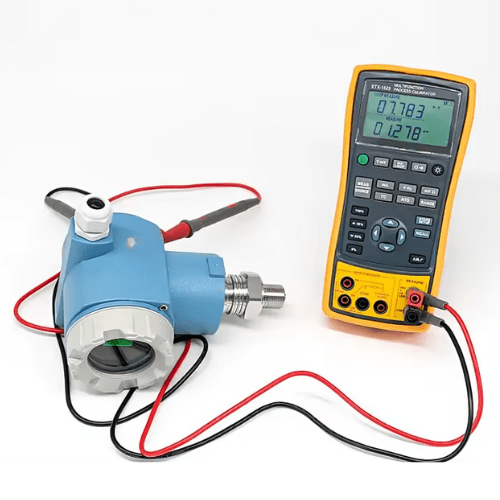

- Built in loop power supply to power the transmitter
- And any TL900P ×× The pressure module is used to measure pressure
- Lithium battery capacity 4800mAh / 8.4V, 20 mA
Technical Specifications
| Output Signal | 4 mA to 20 mA |
| Accuracy | 0.05 or 0.02 |
| Operating Temperature | 14 °F to 131 °F (-10 ℃ to 55 ℃) |
| Storage Temperature | -4 °F to 140 °F(-20 ℃ to 60 ℃) |
| Communication Method | RS232 |
| Resistance | 0 Ω to 3200 Ω |
