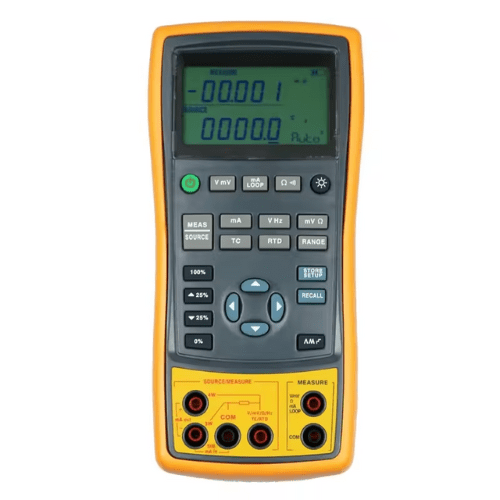

Emissions And Stack LCR Pressure Transmitter Calibrator

Overview

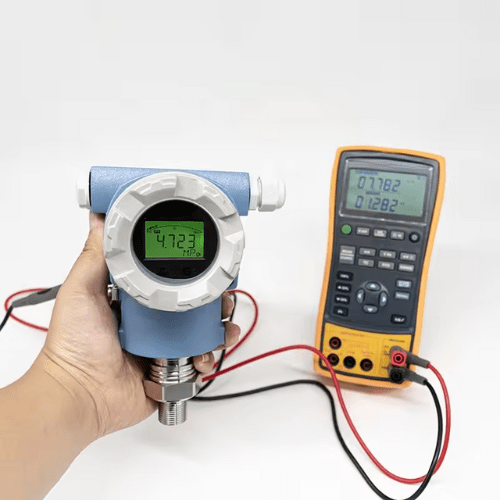

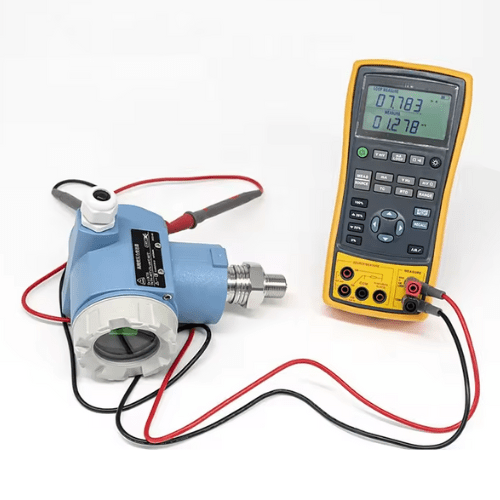

Emissions And Stack LCR pressure transmitter calibrator is a high precision hand-held signal measurement / output instrument, which can measure and output voltage, current, resistance, frequency, thermocouple at the same time. Various industrial process signals, such as thermal resistance, can be used to calibrate pressure transducers with external high precision intelligent pressure modules. It can replace current signal source, voltage signal source, resistance box, electronic potentiometer, frequency meter and other measuring and calibration instruments. Mainly used in industrial field signal calibration, fault diagnosis; also applicable to chemical, military and all kinds of research institutes, real Signal measurement and calibration in laboratories.

Features

• Strong protection function: waterproof grade IP67, arbitrary signal – misconnect 220 V
• Measurement / output in which current output supports active, passive
• The thermal resistance and thermocouple are simulated in the form of temperature
• Can simulate a two-wire transmitter
• The accuracy was 0.02 % (XY2725A ) ;0.05 % (XY2725B )
• Two isolated channels support synchronous measurement and output
• Can provide manual step, automatic step, 0-100% step and slope output function.
• With white LED backlight
• Manual backlight adjustment and automatic power off function, suitable for field use
• Provide DC24V circuit power supply calibration; ly for field debugging
• Unique automatic identification of three-wire, four-wire connection mode.
• Support customer self,Band on-off test function
• Automatic and manual cold end temperature compensation
• XY2725 can be connected to an APSL type
• High precision intelligent pressure module to realize the pressure measurement function
• Can add new thermocouple, thermal resistance type according to customer needs

Technical Specifications
