Overview

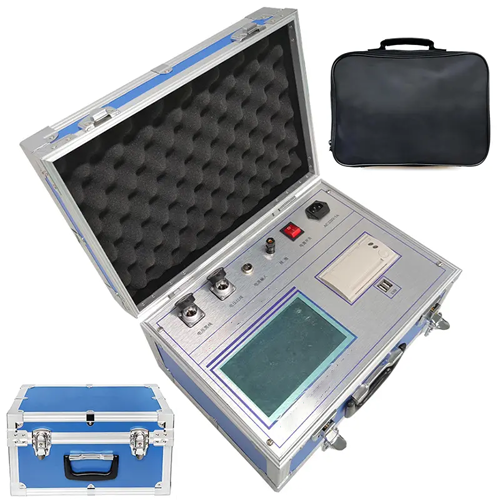

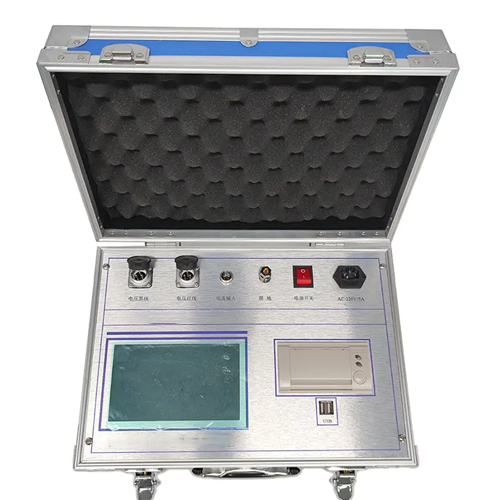

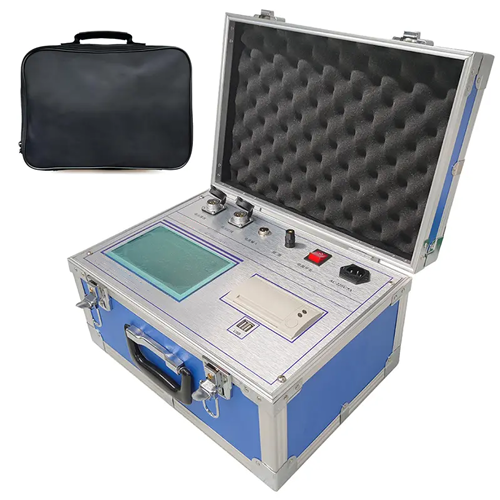

Emissions And Stack Manual Range Digital Multimeter LCR Meter is mainly used to measure the high-voltage shunt capacitor bank and reactor of reactive power compensation device. Its measurement basis meets the national standard of capacitance tester. It is specially developed for the problems existing in the measurement of high-voltage shunt capacitor banks in the substation.
Features
- This instrument adopts advanced measurement principle and four terminal measurement technology
- Large screen HD true color lcd (800 x 640 dot matrix)
- The lcd screen is equipped with touch-screen buttons, which makes the operation intuitive and simple
- The automatic subsection compensation of current makes the full range current linearized and improves the measurement accuracy of the instrument
- Environmental temperature monitoring is convenient for the influence of capacitors on capacitance under different temperatures
- The new generation usb communication function simplifies the connection with pc, which is convenient for measurement data transmission and management
Technical Specifications
| Ambient Temperature | 14 °F to 104 °F (- 10 ℃ to + 40 ℃) |
| Relative Humidity | ≤ 90 % |
| Working Power Supply | 220 V ± 10 % power frequency |
| Rated Frequency | 50 Hz |
| Rated Output | 25 V or 40 A or 500 V A |
| Instrument Volume | 15.35 in x 8.18 in x 8.66 in (390 mm × 208 mm × 220 mm) |
| Weight | About 22.04 lb (10 kg) |
