Features

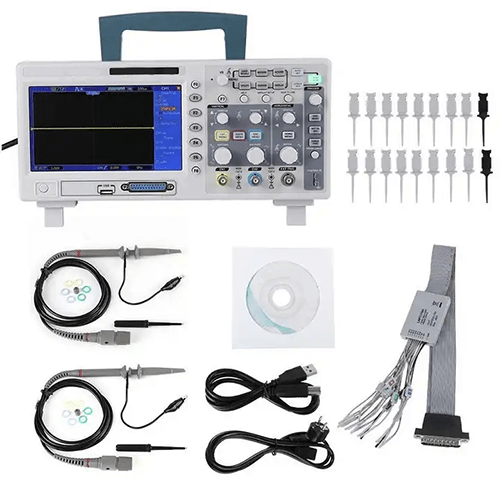

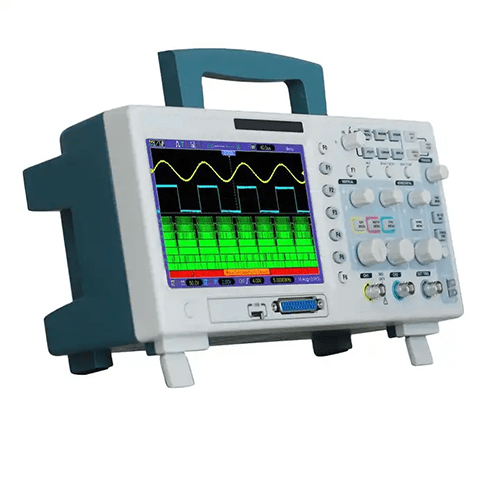

- 16 channels logic analyser + 2 channels oscilloscope + external trigger
- Big and clear display 7.0 in (17.78 cm)
- 1GSa/s real time sampling rate.
- USB host, support flash memory card storage
- VGA Optional
- Bandwidth 100MHz
- Each channel record length up to 1M
- Real time sampling rate up to 1GSa/s
- Powerful trigger function
- 32 kinds of automatic measurement function
- 16 channels divided into 2 groups which can setup threshold level individually
- Real time sampling rate up to 500MSa/s
Technical Specification
| Bandwidth | 200 MHz |
| Sampling Rate Range | Max. 1GS/s |
| Waveform Interpolation | (sin x) /x |
| Memory Depth | Single-channel: maximum 1M; Dual-channel: maximum 512K (4K, 16K, 40K optional) |
| SEC or DIV Range | 2 ns or div to 40 s or div |
| Sampling Rate and Delay Time Accuracy | ±50 ppm over any ≥1 Ms time interval |
| Delta Time Measurement Accuracy (full bandwidth) | Single-shot, Normal mode: ± (1 sample interval + 100 ppm × reading + 0.6 ns) |
| A or D Converter | 8-bit resolution, each channel sampled simultaneously |
| VOLTS/DIV Range | 2 mV or div to 5V or div at input BNC |
| Position Range | 2 mV or div to 5V or div at input BNC |
| Bandwidth Limit (typical) | 20 MHz |
| Low Frequency Response | ≤10 Hz at output BNC (-3 dB) |
| Rising Time | ≤1.8 ns |
| Vertical Gain Accuracy | 3% for sample or average acquisition mode, 5 V or div to 1 m V or div |
| Input Impedance, DC Coupling | 1 M Ω 2% for 20 p F3 pF |
| Sample Depth | 512 K |
| Display | 7 in (17.7 cm) TFT 16K Colour LCD, 800 x 480 dots |

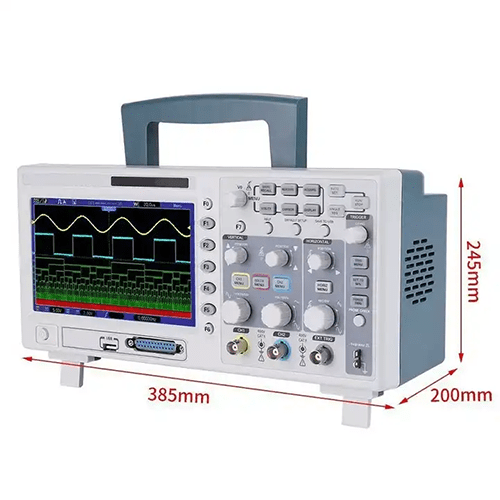

| Dimension | 12.32 in x 5.59 in x 4.25 in (31.3 cm x 14.2 cm x 10.8 cm) |
| Weight | 4.59 lb (2.08 kg) |
