Overview

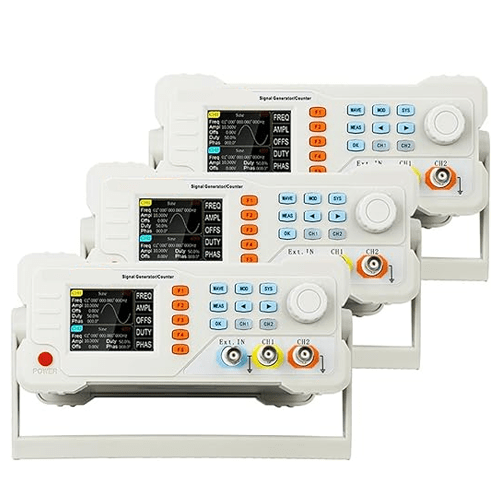

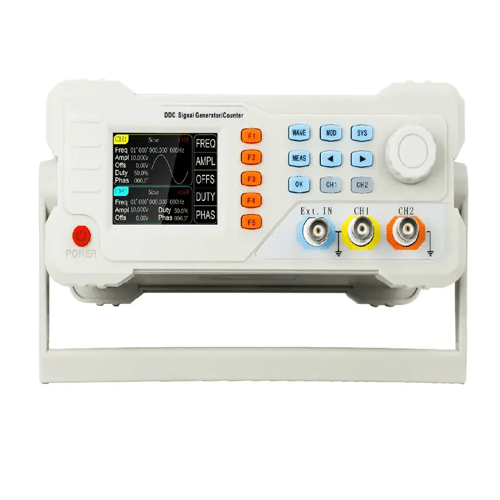

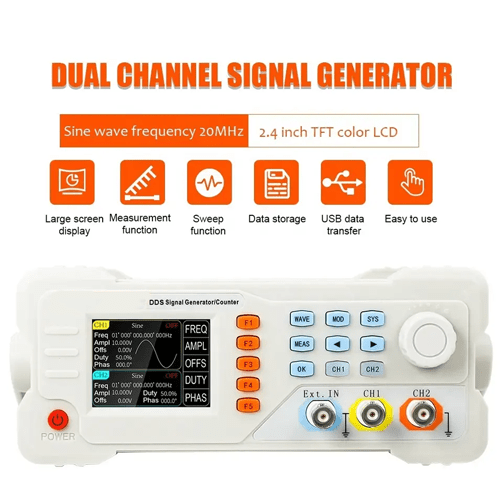

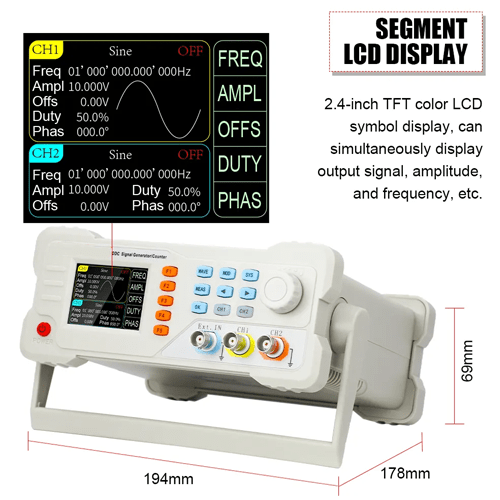

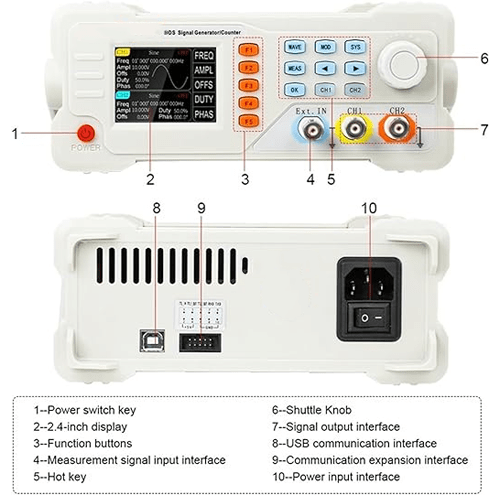

Emissions And Stack multiple waveform generator can generate multiple waveforms such as sine wave, square wave, triangle wave, pulse wave, and arbitrary wave. The frequency range up to 60 MHz, with duty cycle adjustment, sweep frequency, frequency signal frequency and counter function, and the output signal, amplitude, and frequency can be displayed simultaneously. The series signal generator has excellent amplitude and frequency characteristics, the appearance of this instrument is exquisite and beautiful. This instrument is widely used in factories, schools, research institutes and laboratories.
Technical Specifications
| Sine wave frequency range | 0 MHz to 60 MHz |
| Square wave frequency range | 0 MHz to 15 MHz |
| Pulse wave frequency range | 0 MHz to 6 MHz |
| Pulse width adjustment range | 25 nS to 4000 S |
| Square wave rise time | ≤10 ns |
| Minimum frequency resolution | 0.01 uHz (0.00000001 Hz) |
| Frequency accuracy | ±20 ppm |
| Frequency stability | ±1 ppm or 3hours ±1ppm or 3 hours |
| Wavelength | 2048 points |
| Waveform sampling rate | 266 MSa/s |
| Waveform vertical resolution | 14 bits |
| Sine wave | Harmonic Suppression ≥45 dBc (<1 MHz), ≥40 dBc (1 MHz to 20 MHz) Total harmonic distortion <0.8% (20 Hz to 20 kHz, 0 dBm) |
| Square wave and pulse wave | Overshoot ≤5% |
| Pulse wave | Duty cycle adjustment range 0.1% to 99.9% |
| Partial sine wave | Duty cycle adjustment range 0.1% to 99.9% |
| Sawtooth wave | Linearity ≥98% (0.01 Hz to 10 kHz) |
| Sine wave amplitude range | 30 MHz ≤ Frequency |
| Square wave, Triangle wave amplitude range |
10 MHz ≤ Frequency ≤25 MHz |
| Amplitude resolution |
1 mV |
| Amplitude stability |
±0.5% or 5 hours |
| Flatness of amplitude | ±5% (<10 MHz) ±10% (>10 MHz) |
| Output impedance | 50 Ω ±10% (typical) |
| Protection | signal outputs can work within 60 when the load is short-circuited. |
| Size | 21.65 in x 17.91 in x 10.62 in (55 cm x 45.5 cm x 27 cm) |
| Weight | 22.04 lb (10 kg) |
