Overview

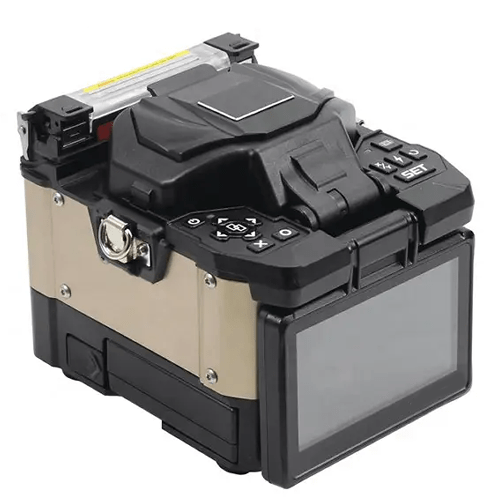

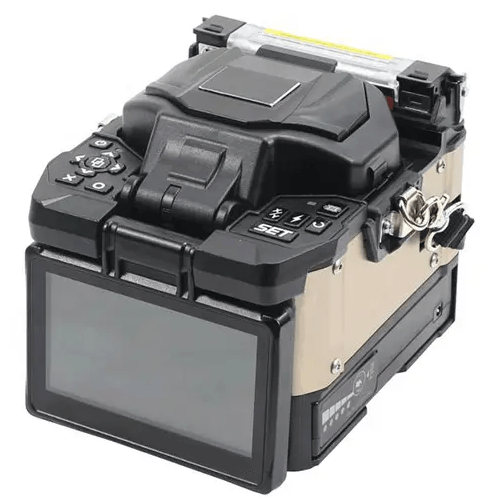

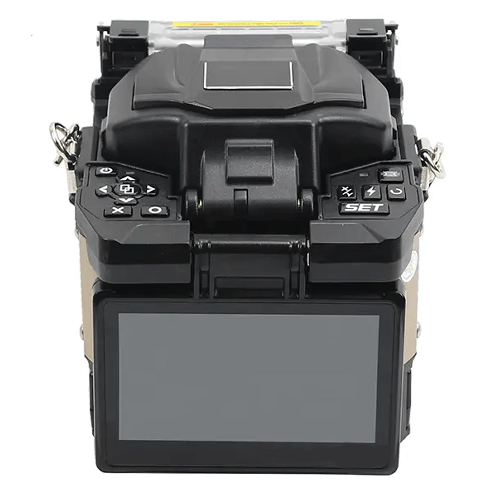

Emissions And Stack optical fusion splice is used for joining two optical fibers end-to-end using heat, to fuse the two fibers together in such a way that light passing through the fibers is not scattered or reflected by the splice, and so that the splice and the region surrounding it are almost as strong as the virgin fiber itself.
Features
- FTTX, FTTH, CATV projects
- V-groove cladding alignment, high quality and low splicing loss
- Auto splice mode manifest user-friendly design
- Dust-proof, waterproof
- High temperature resistance
- Adapting to various altitude and formidable nature conditions
- 4.3 in (10.92 cm) high resolution LCD touch screen

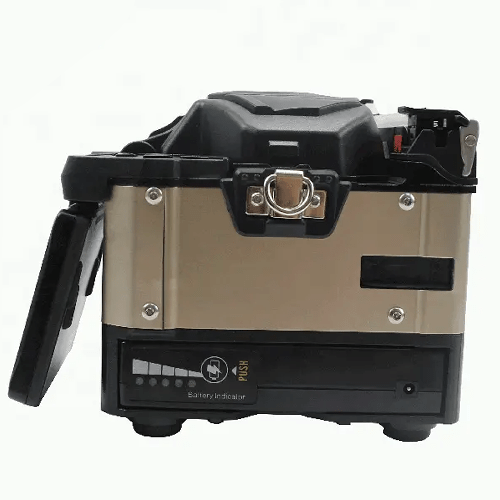

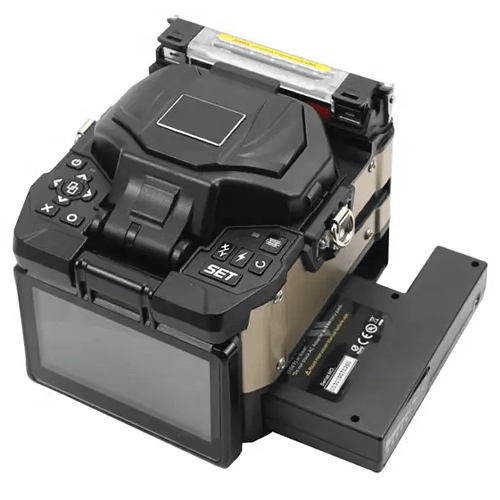

- Packed with detachable 5200 mAh battery
- More than 280 times of splicing and heating
- High power LED light simplifies night work
- None-mirror design reduce maintenance work
- Detachable multifunction fixture, suitable for various fiber type
Technical Specifications
| Compatible Fiber or Cable | 0.009 in to 0.11 in (0.25 mm to 3 mm) or indoor cable |
| Cleaved Length | Coating diameter: 0.004 in to 0.03 in (0.125 mm to 1 mm) or Cleave length: 0.31 in to 0.62 in (8 mm to 16 mm) |
| Splicing Mode | Preset 41 splicing modes, storable 100 modes |
| Typical Splice Loss | 0.01 dB to 0.05 dB |
| Return Loss | Greater than 60 dB |
| Lighting | Three powerful white LED and illuminated keypads |
| Splicing Time | SM fast mode: 6 s |
| Estimated Splice Loss | Yes |
| Protection Sleeve Length | 0.78 in to 2.36 in (20 mm to 60 mm) |
| Heating Tank | Preset 5 kinds of heating tube |
| Heating Time | Typical Heating Time: 30 s, optional 10 s to 900 s |
| Results Storage | 1000 records |
| Tension Test | 1.5 N to 2.0 N |

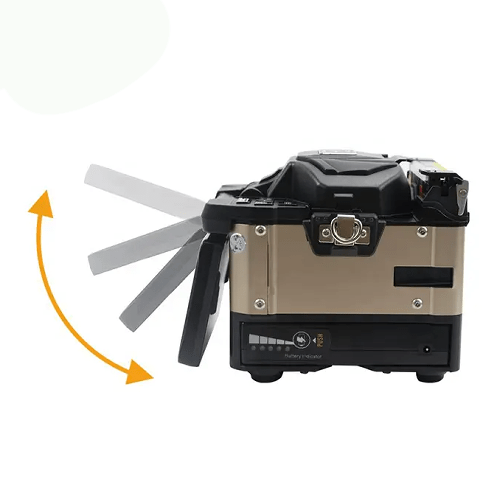

| Display | 90° bi-directional view, 4.3 in (10.92 cm) high resolution display with touch screen |
| Fiber View & Magnification | X, Y, XY, X or Y: 380 × magnification |
| Power Supply | AC Input 100 V to 240 V, DC Input 12 V to 15 V |
| Battery Capacity | 5200 mAh battery capacity |
| Heating Times | typical above 280 times (splicing and heating) |
| Operating Methods | Button or touch screen |
| Automatic Calibration | Automatic ARC calibration by air pressure and temperature |
| Electrode Life | 3000 ARCS, can be extended by using an electrode grinder |
| Alignment | Cladding |
| Terminal | USB 2.0 |
| Operating Condition | Operating altitude: 0 ft to 3.1 mi (0 m to 5000 m) above sea level, 0 % to 95 % relative humidity
Temperature: 14 °F to 122 °F (-10 ℃ to 50 ℃), max wind 15 m/s |
| Storage Condition | 0 % to 95% relative humidity, -40 °F to 176 °F (-40 ℃ to 80 ℃)
battery storage: -4 °F to 86 °F (-20 ℃ to 30 ℃) |
| Dimension (W X L X H) | 5.51 in x 6.49 in x 5.43 in (140 mm x 165 mm x 138 mm) (including rubber Bumper) |
| Weight | 3.96 lb (1.8 kg) (include battery) |
