Overview

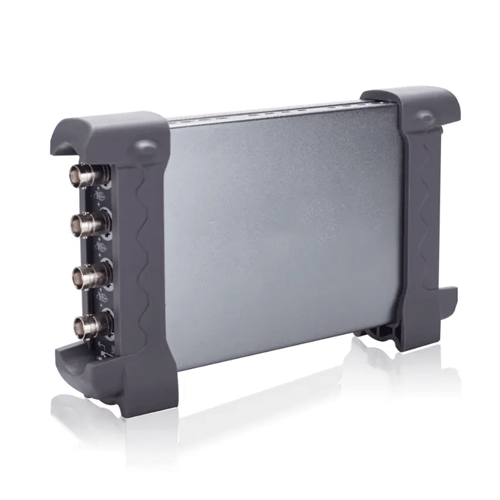

Emissions And Stack pc based digital oscilloscope analyzer has bandwidth 20 MHz to 200 MHz, Sample Rate 250 MS a/s, excellent industrial design-the same anodised aluminium casing as iPad, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminium alloy surface and has good heat resistance and strong wearability. Standard USB XI (TM) interface easily inserts into USB XI (TM) housing to make up a combination instrument.
Features
- Design with iPad-like anodized aluminium casing enhances durability
- Enhances alloy hardness, offers strong heat resistance and wearability

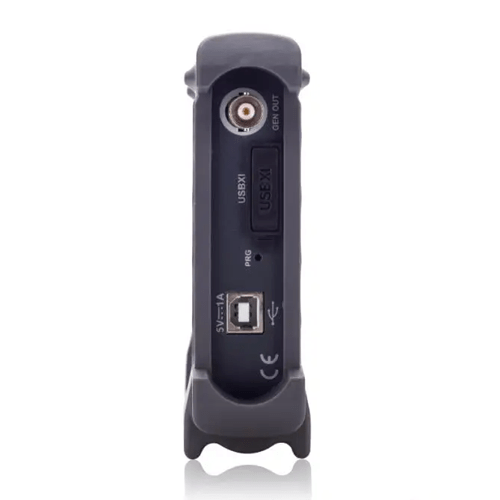

- Standard USBXITM interface easily combines with USBXITM housing
- USB 2.0 interface, no external power source required, easy to use
- Ideal for notebooks, product line maintenance, and business use
- Dimensions 8.1 in x 4.7 in x 1.4 in (205 mm x 120 mm x 35 mm)
- Performance, 250 MS/s real-time sampling, 20 MHz to 80 MHz bandwidth
- OS Win 10, Win 8, Win 7, Win NT, Win XP, VISTA
- 23 measurements, PASS or FAIL Check, be suitable for technical application

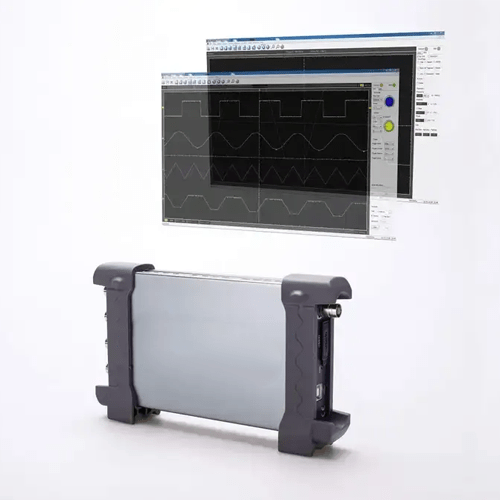

- Waveform average, persistence, intensity, invert, basic arithmetic, X-Y plot
- Save waveform in text file, jpg/bmp graphic file, MS excel/word file
- FFT
- One computer can connect many DSO, extend channel easily
- Lab view or VB or VC Second Design instance
Technical Specifications
| Bandwidth | 20 MHz to 80 MHz |

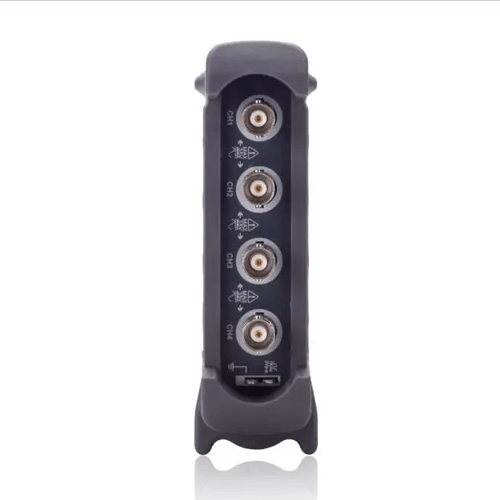

| Oscilloscope channels | 2 CH |
| Max. Sample rate | 48 MS/s |
| Sampling | 250 MS/s |
| 8 Vertical resolution | 8 Bit |
| Operating System | Win 10, Win 8, Win 7, Win NT, Win XP, VISTA |
| Interface | USB 2.0 |
| Dimension | 8.1 in x 4.7 in x 1.4 in (205 mm x 120 mm x 35 mm) |
