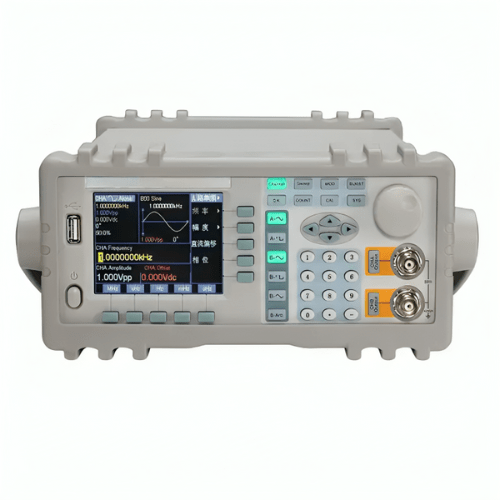

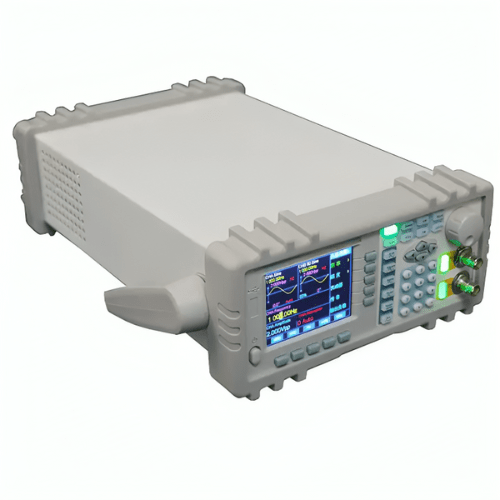

Feature
- High frequency resolution full range frequency resolution 20 MHz
- The waveform precision is high
- Small distortion
- Multiple waveforms 32 waveforms can be output
- Pulse characteristics accurate pulse wave duty ratio can be set
- The phases are adjustable
- Scan start and end point arbitrary settings
- Keying feature can output frequency shift keying FSK
- Amplitude shift keying ASK and phase shift keyed PSK signal
- Burst characteristics can output burst count pulse signal
- Operation mode all key operation
- Chinese or English two menu display
- Direct digital setting or knob continuous adjustment
- Protection functions over-voltage protection, overcurrent protection

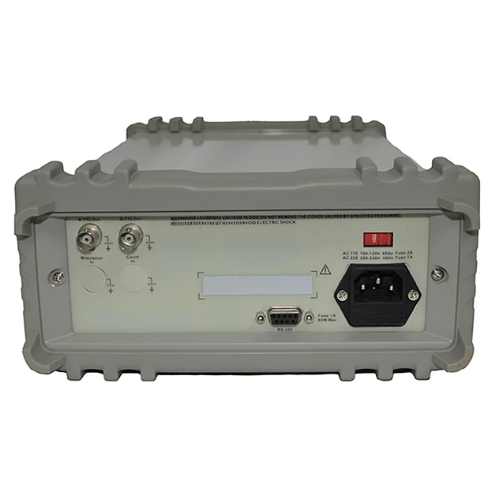

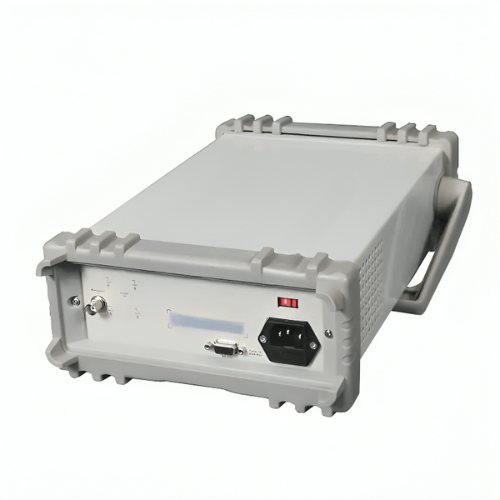

- Program control features optional RS232 interface
Technical Specifications
| Frequency Range | 40 MHz to 10 MHz |
| Waveform Length | 1024 points |
| Sample Rate | 100 MSa or s |
| Waveform Amplitude Resolution | 8-bits |
| Sine Wave Total Distortion | ≤1% (20 Hz to 200 kHz) |
| Square Rise or Fall Edge Time | ≤35 ns Overshoot ≤10% |
| Square Wave Duty Cycle | 1% to 99% |
| Frequency Accuracy | ± (5 x 10 – 5 + 40 MHz) |
| Frequency Stability | ± 5 x 10 – 6 or 3 hours |
| Output Impedance | 50 ohms |
| Sinusoidal Harmonic Suppression | ≥40 dBc (<1 MHz), ≥35 dBc (1 MHz to 20 MHz) |
| Overshoot | ≤10% |
| Sampling Rate | 12.5 MSa or s |
| Frequency Range | LWG-3010 40 MHz to 10 MHz, LWG-3020 40 MHz to 20 MHz, LWG-3040 40 MHz to 40 MHz, LWG-3060 40 MHz to 60 MHz, LWG-3080 40 MHz to 80 MHz |
