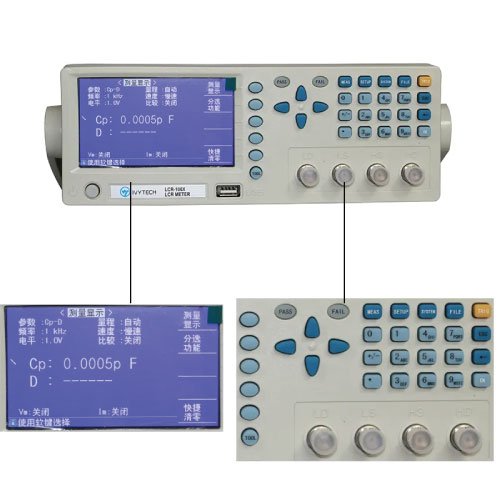

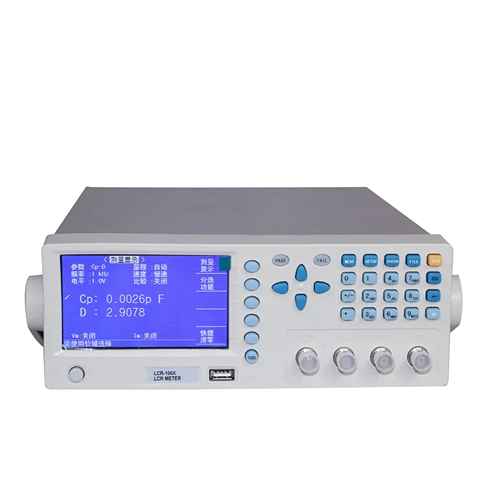

Features
- The new 32-bit core processor
- The data is completely comparable to the foreign first-class equipment
- 4.3 inch true color TFT display
- 30 Ω, 100 Ω two different signal source output impedance
- Built-in comparator, 5-speed sorting flexible qualified and bad alarm mode
- Shutdown automatically saves test conditions, user-friendly operation
- More than 100 sets of internal configuration files
- U disk extended multiple sets of test files to save or call
- Simplified Chinese, English optional
- Upgrade and update of instrument software version via U disk
- U disk copy screen function, test data save function, can support format FAT16, FAT32 file system
- Standard RS232C, HANDLER, USB HOST
- Optional USB DEVICE headphone jack, pedal interface, GPIB
Technical specifications
| Test Parameters | L, C, R, | Z|, D, Q, X, ESR ,θ (Deg), θ (Rad) |
| Test Frequency | 40 Hz, 50 Hz, 60 Hz, 75 Hz, 100 Hz, 120 Hz, 150 Hz, 200 Hz, 250 Hz, 300 Hz, 400Hz, 500 Hz, 600 Hz, 750 Hz, 800 Hz, 1 kHz, 1.5 kHz, 60 kHz, 66.6 kHz, 75 kHz, 100 kHz, 120 kHz, 150 kHz, 200 kHz, Total 41 point 2 kHz, 2.5 kHz, 3 kHz, 4 kHz, 5 kHz, 6 kHz, 7.5 kHz, 10 kHz, 12 kHz, 15 kHz, 15.7 kHz, 16.2 kHz, 20 kHz, 25 kHz,3 0 kHz, 40 kHz, 50 kHz, |
| Basic Measurement Accuracy | 0.10 % |
| Test Signal Level | 0.1 V, 0.3 V, 0.5 V, 1 V |
| Equivalent Circuit | Series Parallel |
| Mathematical Function | Percent deviation |
| Range Mode | Automatic, hold, manual selection |
| Trigger Mode | Internal, manual, external, bus |
| Measuring Speed (≥1khz) | Fast: 30 times/second fastest, medium speed: 10 times/second,Slow speed: 3 times / sec |
| Average Number Of Times | 1 to 255 |
| Delay Time | 0 to 6 s, stepped in 1 ms |
| Calibration Function | Open / short circuit / fast clear |
| Display Method | Direct reading, Δ %, V/I (measured voltage/current monitoring) |
| Monitor | Main and auxiliary parameters 5-digit display, 4.3-inch true color LCD display |
| Output Impedance | 30 Ω, 100 Ω selectable |
| Display Range | |
| |Z|, R,X,Esr | 0.1 mΩ to 99.999 MΩ |
| C | 0.01 pF to 9.9999 F |
| L | 0.01 µH to 99999 H |
| D | 0.0001 to 9.9999 |
| Q | 0.0001 to 9999.9 |
| Θ(Deg) | -179.99° to 179.99° |
| Θ(Rad) | -3.1416 to 3.1416 |
| Δ% | -999.99 % to 999.99 % |
| Comparator Function | 5-speed sorting function |
| Memory | More than 100 sets of internal instrument settings for storage/call, U disk expansion of more than 500 groups |
| Interface | Standard RS232C, HANDLER, USB HOSTOptional USB DEVICE, headphone jack, pedal interface, GPIB |

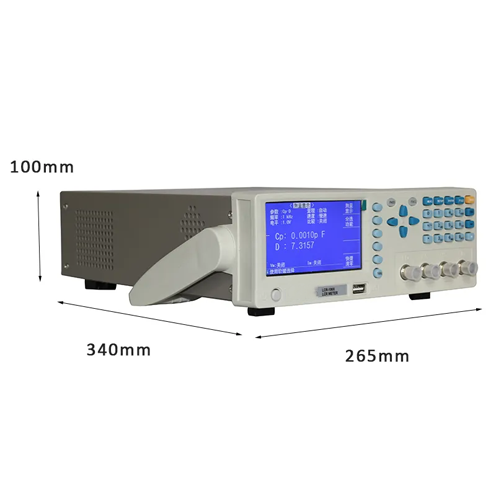

| Size | 10.43 in x 3.94 in x 13.39 in (265 mm x 100 mm x 340 mm ) |
| Weight | 7.72 lb (3.5 kg) |
| Display | 4.3 in (109.22 mm) |
