Overview

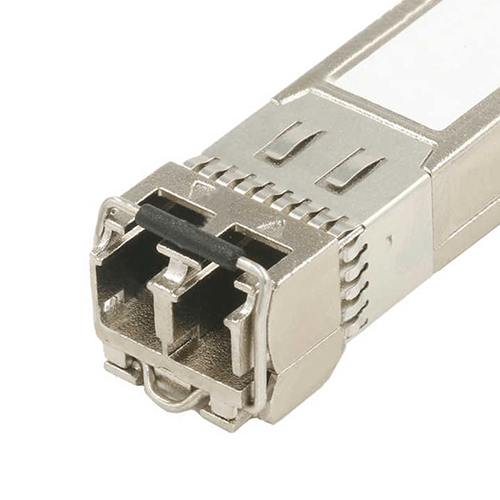

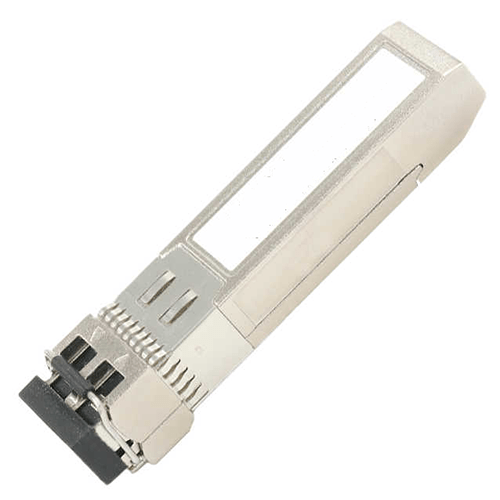

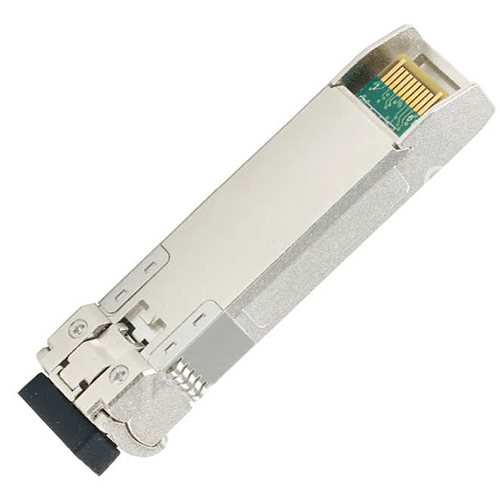

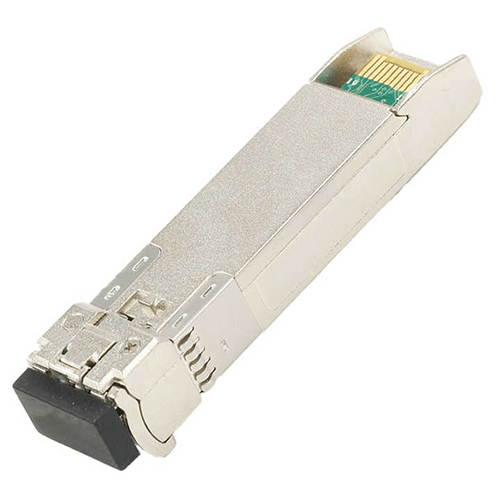

Emissions And Stack SFP fiber optical transceiver short-range optical transceiver with a reach of 984.25 ft (300 m). Its advantages include high data transfer rates, low power consumption, and compact size. It operates on multi-mode fibre, offering cost-effective solutions for short-distance data transmission. The module complies with SFP+ MSA standards and supports digital diagnostic monitoring. It’s hot-pluggable feature allows easy installation and replacement.
Technical Specification
| Network | Twin axial cable Fiber Optical Transceivers |
| Data Rate | 10 G |
| Receiver Sensitivity | <-11.1 dBm |
| TX Power | 1 dBm to -7.3 dBm |
| Power budget | 3.8 dB |
| Extinction Ratio | >3 dB |
| Typical Power Consumption | <1 W |
| Wavelength | 850 nm |
| Temperature | 32 °F to 158 °F (0 °C to 70 °C) |
